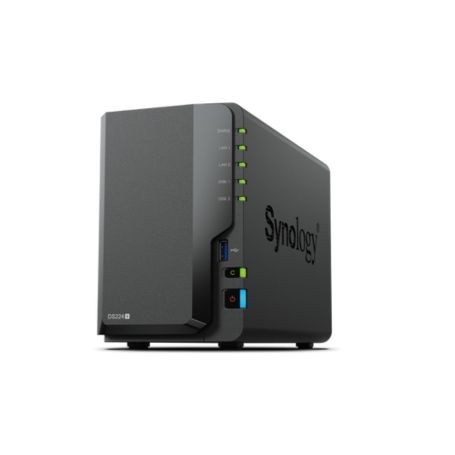

Synology DS224+ 2-bay Diskless DiskStation

New

Synology DS224+ 2-bay Diskless DiskStation

×




  • New

Detailed Specifications

Synology DS224+ 2-bay Diskless DiskStation

Overview :

The DS224+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J4125 Quad-Core with a burst frequency of up to 2.7 GHz, and its 2GB of DDR4 RAM, which can be upgraded to 6GB, allows frequently used files and applications to be quickly accessed.

Also featured are two USB-A 3.2 Gen 1 ports for connecting external devices, and network connectivity is achieved via the dual integrated Gigabit Ethernet ports that support link aggregation and failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS224+ supports RAID 0 and 1, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

Specifications :

Product NameSynology NAS DS224+ 2-Bay DiskStation Celeron J4125 2GB DDR4
Product TypeSAN/NAS Storage System
Processor ManufacturerIntel
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Bays2
Network (RJ-45)Yes
Maximum Power Supply Wattage60 W
Product FamilyDiskStation
Total Number of USB Ports2
Number of Hard Drives Supported2
Number of Hard Drives Installed0
Drive InterfaceSerial ATA
Operating SystemDiskStation Manager
Form FactorDesktop
Processor Speed2 GHz
Processor TypeCeleron
RAID Levels0, 1, Basic, Hybrid RAID, JBOD
Controller TypeSerial ATA
Standard Memory2 GB
Processor CoreQuad-core (4 Core)
Number of Processors Installed1
Number of Network (RJ-45) Ports2
Number of Solid State Drive Supported2
Number of Solid State Drive Installed0
Number of 2.5" / 3.5" Bays2
Number of USB 3.2 Gen 1 Ports2
Processor ModelJ4125
Height6.5"
Width4.3"
Depth9.1"
Memory TechnologyDDR4 SDRAM
Product ModelDS224+
Product LineDiskStation
Packaged Quantity1
Stock Details
ManufacturerSynology
