Detailed Specifications

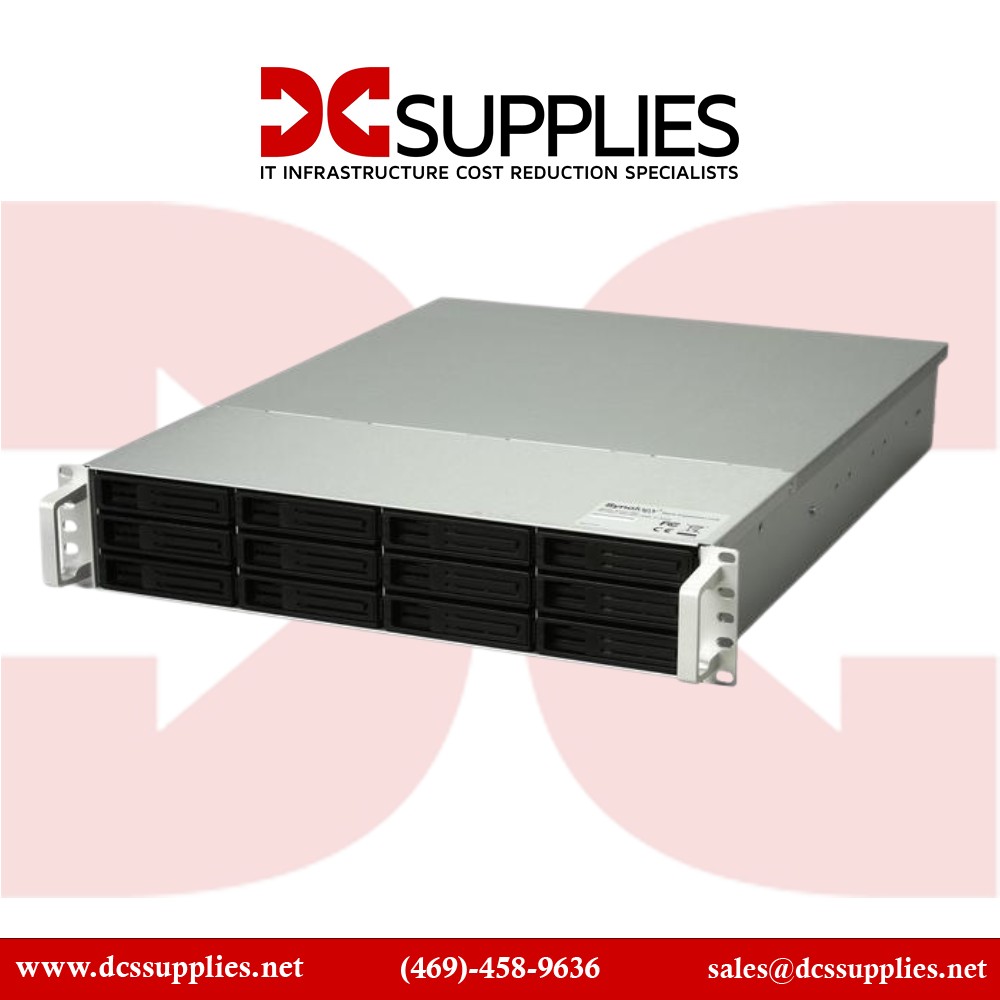

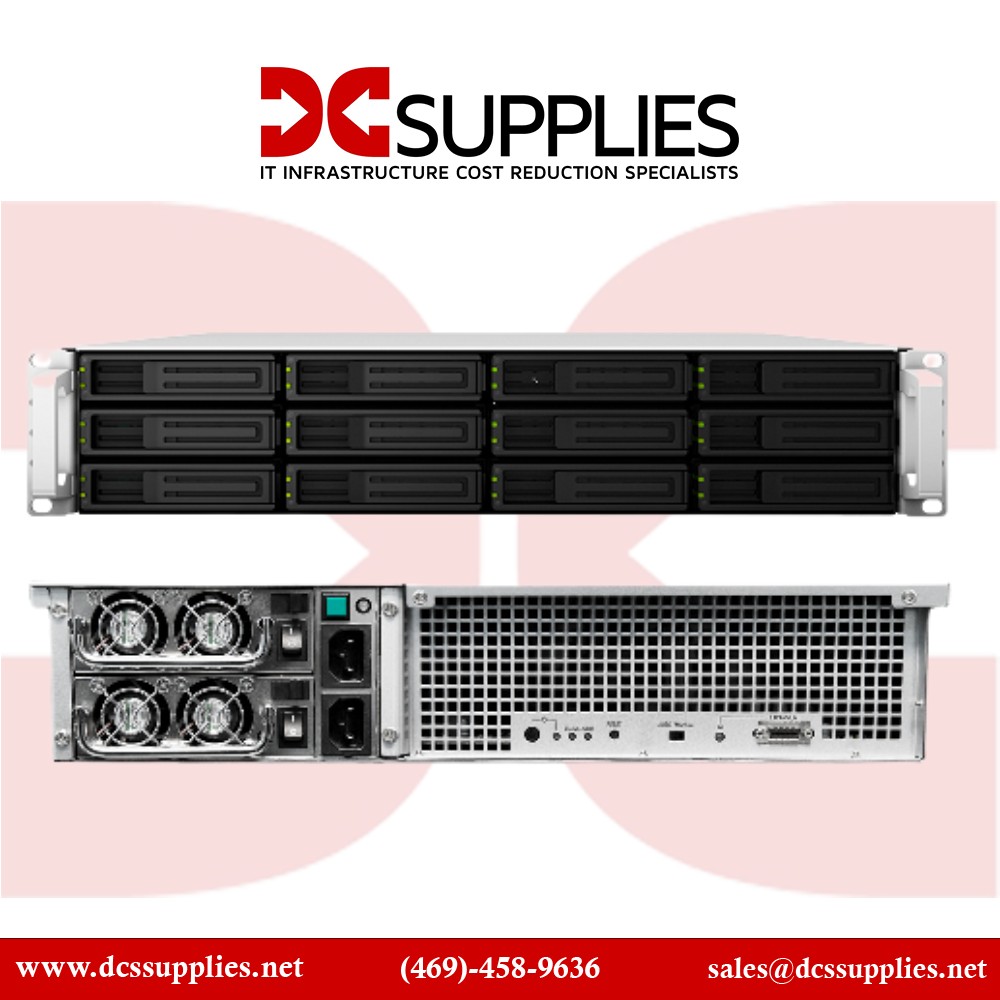

Synology RX1214 Expansion Unit 48TB Storage
Overview :
Synology RX1214/RX1214RP delivers an effortless solution for volume expansion and data backup for Synology RackStation. The RX1214/RX1214RP seamlessly scales up the storage capacity of the Synology RackStation by an additional 12 hard drives on-the-fly when connected directly to an expansion cable.
Synology RackStation securely connects to Synology RX1214/RX1214RP with an high-bandwidth expansion cable that ensures maximum throughput. It allows the hard drives in the connected Synology RX1214/RX1214RP to operate as they are the internal ones of the Synology RackStation, with no lag in data retrieval. With SATA III 6Gb/s interface support, Synology RX1214/RX1214RP unleashes the full performance of the installed drives and provides outstanding data transfer rate. To ensures 24/7 service uptime, Synology RX1214RP is equipped with redundant power supplies, allowing automatic fail-over support if one of the PSUs is failed.
- Plug-n-Use Design for Seamless Storage Space Upgrade
- Online Volume Expansion
- SATA III 6Gb/s Interface Support
- Redundant Power Supplies Ensure Service Uptime (RX1214RP only)
- Energy-Saving Deep Sleep Mode
- Easy Installation with Screwless Rail Kit (optional)
- Managed from Synology DiskStation Manager (DSM)
Specifications :
| Product Nmae | NAS Expansion Unit |
| System Fan | 4 piece (80 x 80 mm) |
| Noise Level | 40.5 dB(A)
Note
Noise Level Testing Environment: Fully loaded with Seagate 1 TB ST31000520AS hard drive(s) in idle
Two G.R.A.S. Type 40AE microphones, each set up at 3.2 ft (1 m) away from the Synology NAS front and rear
Background noise: 16.49-17.51 dB(A)
Temperature: 76.65 to 78.35°F (24.25 to 25.75°C)
Humidity: 58.2 to 61.8% |
| Certification | FCC Class A
CE Class A |
Dimensions & Weight
| Dimensions | 3.5 x 17.5 x 22.4" / 88 x 445 x 570 mm |
| Weight | 26.5 lb / 12.0 kg |
| Power Recovery | Synchronized with the Synology RackStation |
| Power Supply | 400 watts |
| AC Input Power Voltage | 100 to 240 VAC |
| Power Frequency | 50/60 HZ, single phase |
