Detailed Specifications

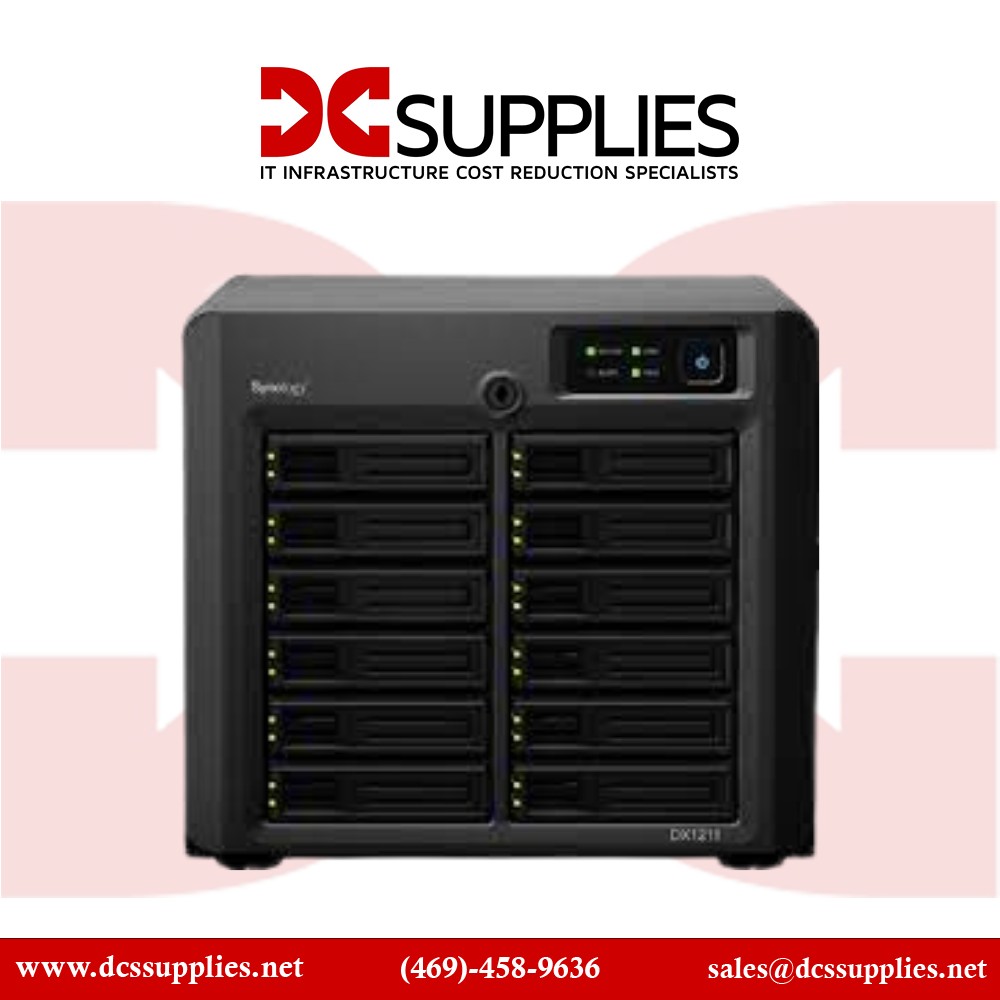

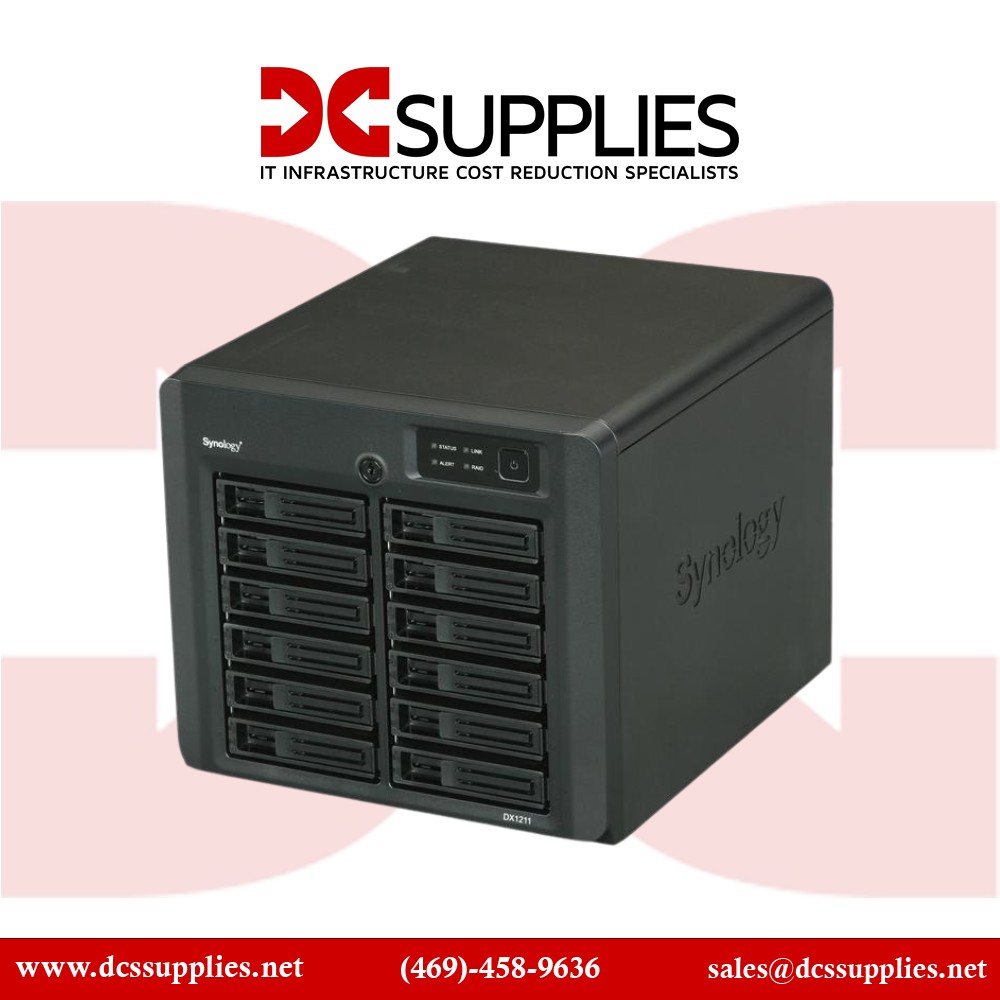

Synology DX1211 12-Bay Expansion Unit for DiskStation
Overview :
This B&H Kit includes Synology DX1211 12-Bay Expansion Unit and 12 x 4TB Hitachi Deskstar 3.5" SATA III Internal Desktop Hard Disk Drives, providing you necessary storage and fast access to a large amount of data. The Expansion Unit delivers an effortless solution for volume expansion and data backup for Synology DiskStation DS2411+ / DS3612xs NAS.
The DX1211 Expansion Unit provides an easy way to scale up the storage capacity of Synology DiskStation DS2411+ / DS3612xs NAS by adding 12 hard drives. The RAID volume on DS2411+ / DS3612xs server can be expanded directly without having to reformat the existing hard drives. In addition, the unit securely connects to the DS2411+ / DS3612xs NAS via an Infiniband cable to carry 12 Gb/s SATA signal for maximum throughput. It allows the hard drives in the connected DX1211 unit to operate as internal hard drives of the DS2411+ / DS3612xs with no lag in data retrieval.
Specifications :
| Type | Expansion Unit for DiskStation |
| Drive Compatibility | 3.5" and 2.5" SATA HDD, SATA SSD |
| Maximum Supported Drives | 12 |
| Drive Capacity | Up to 108TB (with 12 x 8TB drives) |
| Compatible DiskStation Models | DS1813+, DS1812+, DS1513+, DS1512+, DS2413+, DS2412+ |
| Power Supply | 1 x 200W power supply |
| Cooling | 2 x 120mm Fans (Adjustable speed) |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Expansion via | eSATA Connection |
| Dimensions (W x D x H) | 257 x 295.7 x 150 mm |
| LED Indicators | Power, Drive Status, and LAN indicators |
| Supported RAID Types | JBOD (Just a Bunch of Disks), RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Operating System | Synology DiskStation Manager (DSM) |
