Detailed Specifications
Ruckus 902-0700-0000 – Stadium Enclosure for Indoor Wi-Fi Access Points
Overview :

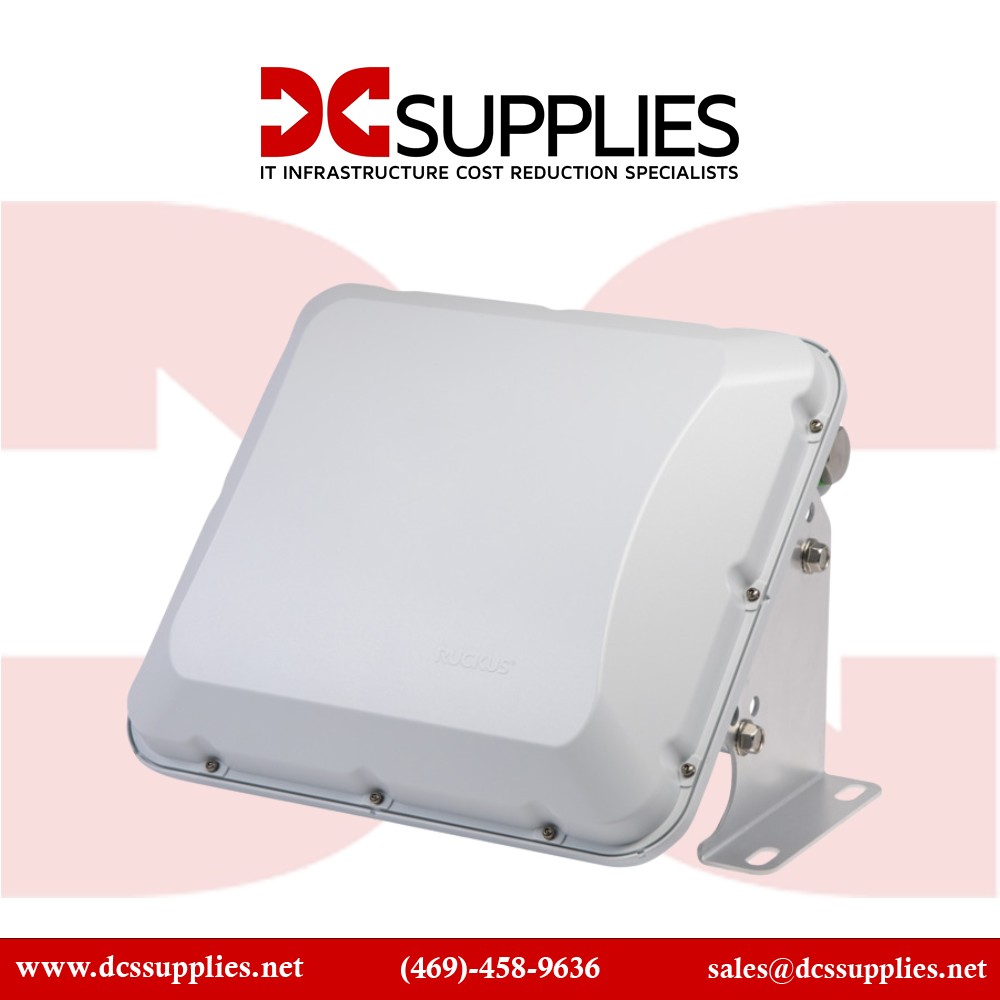

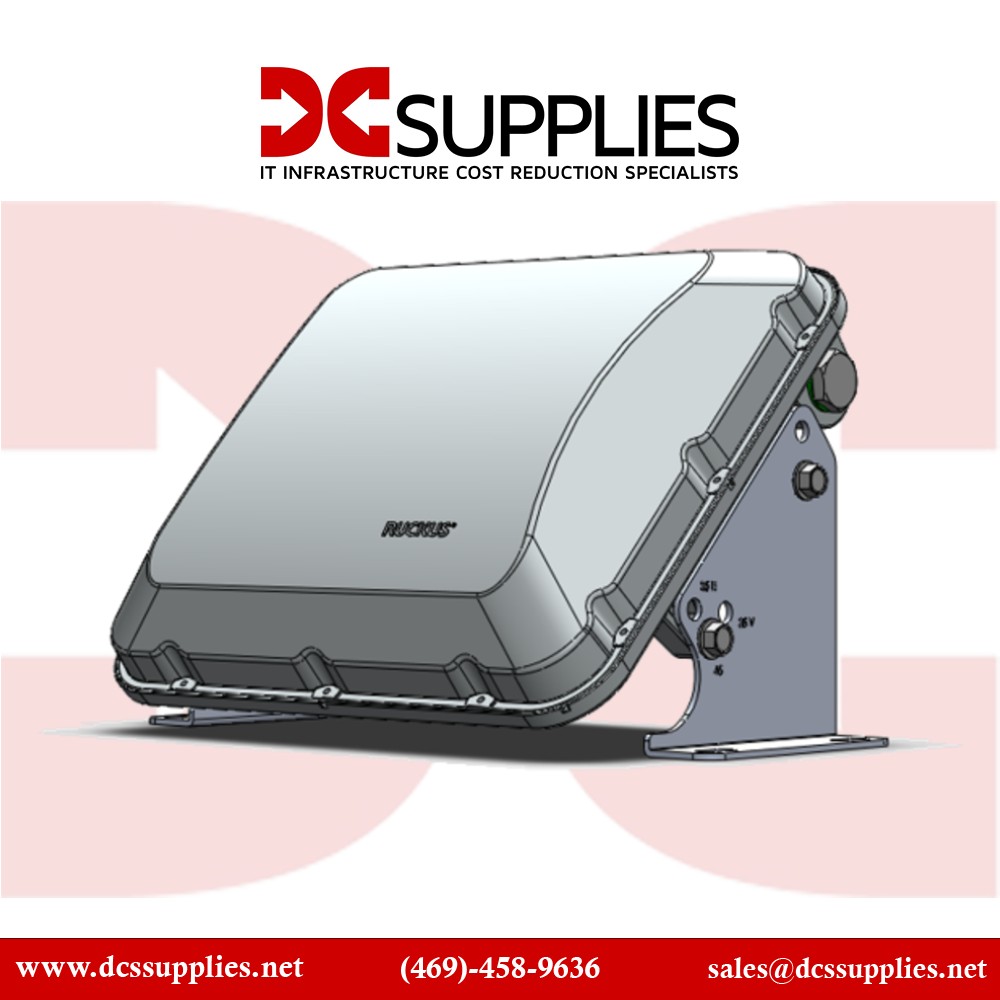

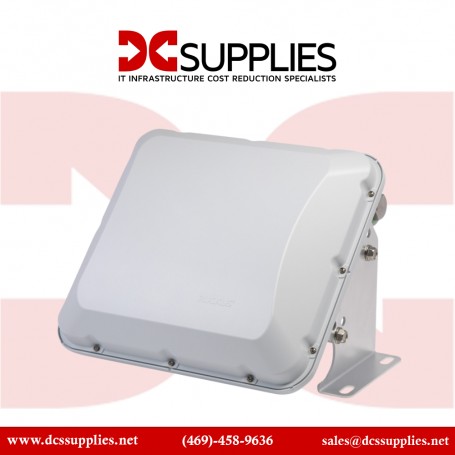

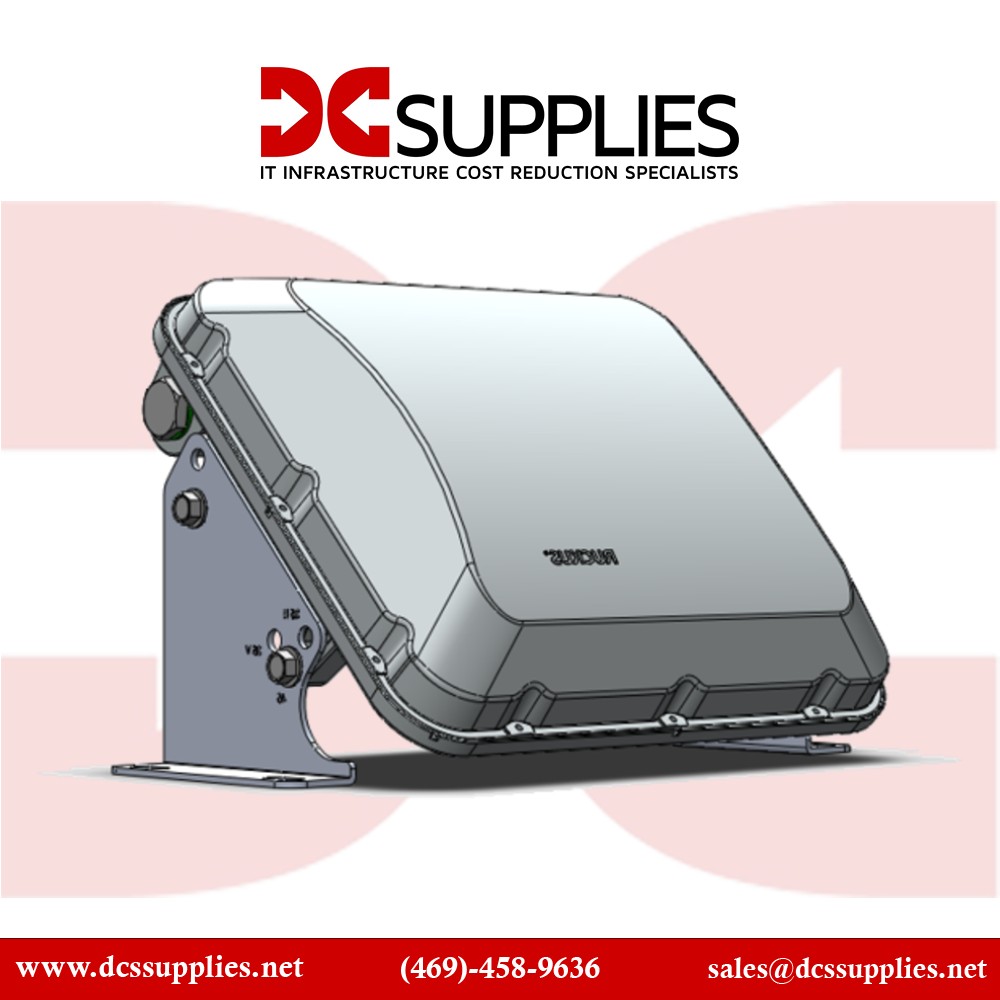

The Ruckus 902-0700-0000 is a rugged, weather-resistant enclosure designed to house Ruckus indoor Wi-Fi access points (APs) in high-density public venues such as stadiums, arenas, and convention centers. This enclosure enables the deployment of Ruckus R350, R550, R560, R650, and R750 APs under seats or other challenging locations, ensuring optimal wireless coverage in demanding environments. The enclosure features a polycarbonate top cover and a cast aluminum bottom cover that facilitates heat dissipation, maintaining the thermal performance of the enclosed AP. It includes ½ inch NPT holes with plugs, gaskets, and locknuts for power and data cable connections, and M6 threaded ground points for grounding. The enclosure supports various mounting options, including under-seat, vertical, horizontal, and tilt configurations (0°, 35°, or 45°), providing flexibility to meet specific deployment needs. Additionally, it offers mounting provisions for an optional USB GPS dongle, enhancing location-based services.
Key Features :
Rugged Construction: Polycarbonate top and cast aluminum bottom for durability.
Thermal Management: Designed to maintain AP thermal performance.
Flexible Mounting: Supports multiple mounting orientations and tilt angles.
Cable Management: Includes NPT holes and grounding points for secure connections.
AP Compatibility: Accommodates Ruckus R350, R550, R560, R650, and R750 APs.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 902-0700-0000 |
| Product Type | Stadium Enclosure for Indoor Wi-Fi Access Points |
| Material | Polycarbonate top, cast aluminum bottom |
| AP Compatibility | R350, R550, R560, R650, R750 |
| Mounting Options | Under-seat, vertical, horizontal, 0°, 35°, 45° tilt |
| Connector Location | ½ inch NPT holes with plugs, gaskets, and locknuts |
| Grounding | M6 threaded ground points inside and outside |
| Thermal Management | Designed to enable proper AP heat dissipation |
| USB GPS Mounting | Provision for optional USB GPS dongle |
| Dimensions (L x W x H) | 284.4 mm x 310.0 mm x 114.5 mm |
| Weight | 2.81 kg (6.2 lbs) |
| Operating Temperature | Defined by enclosed AP thermal specifications |
| Wi-Fi Bands Supported | 2.4 GHz, 5 GHz, 6 GHz (indoor use only) |
