Detailed Specifications

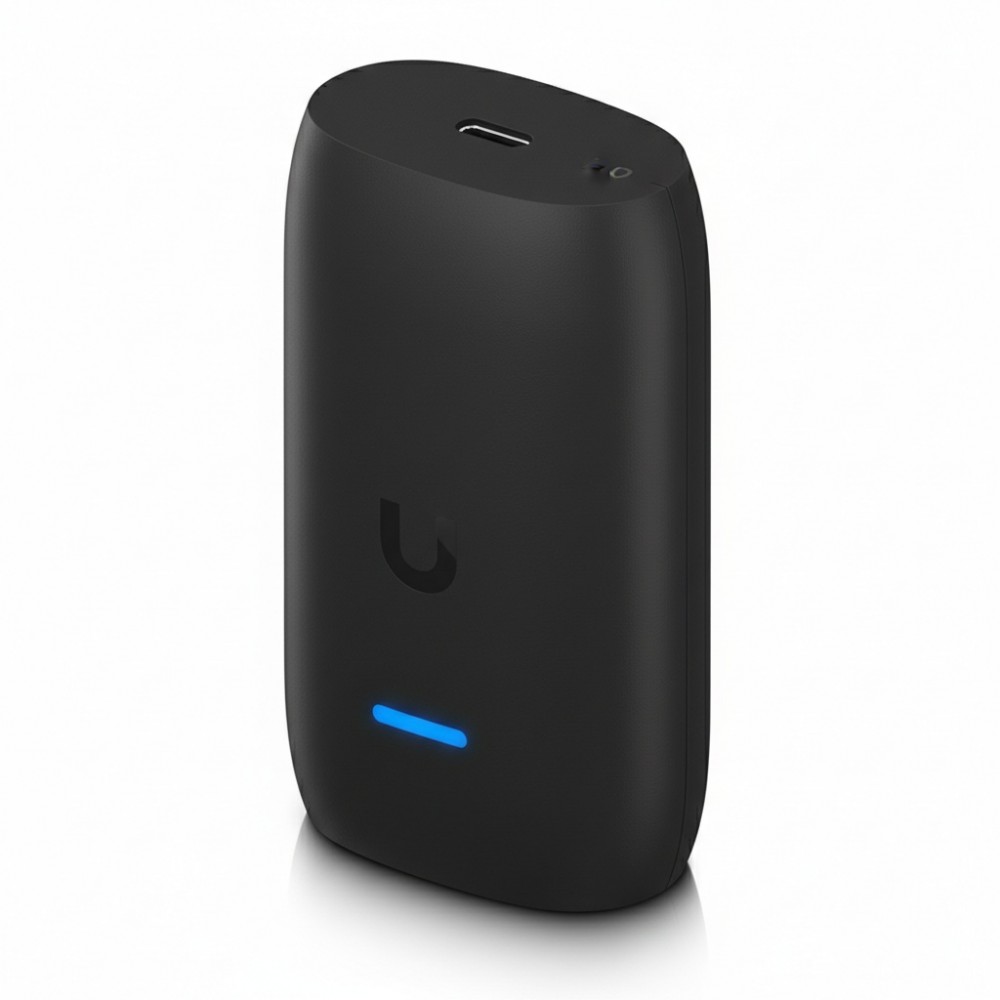

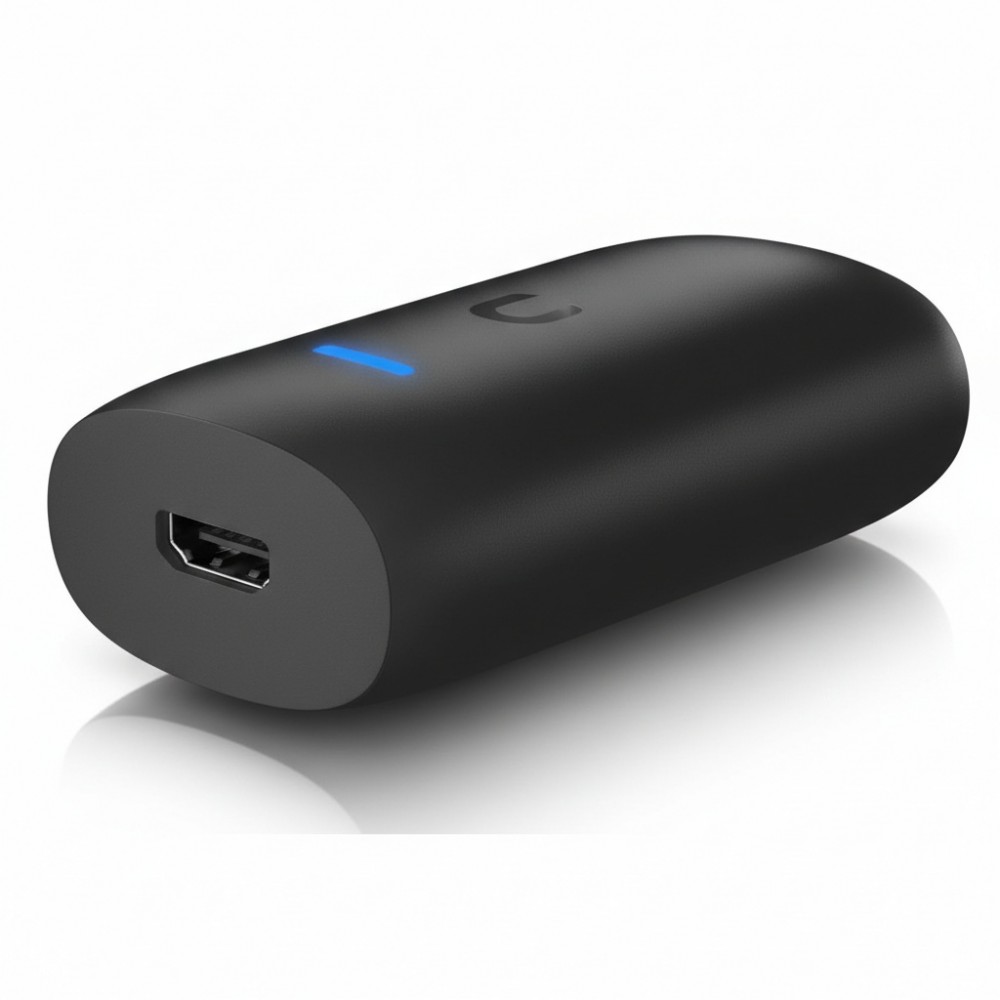

Ubiquiti UC-Cast-Lite-US Display Cast Lite Media Player
Overview
The Ubiquiti UC-Cast-Lite-US is a compact HDMI-output media player designed for digital signage and content playback using the UniFi Connect platform. It accepts multimedia playlists over Wi-Fi and outputs up to Full HD (1080p) video to any HDMI-compatible display. The unit runs on a quad-core ARM Cortex-A55 processor with onboard storage and RAM, enabling local playback without a PC or networked media server. This device fits retail, office, restaurant, lobby, or event environments where centrally managed visual messaging is required.
Key Features
• HDMI output up to 1080p resolution
• Quad-core Cortex-A55 at 1.9 GHz
• Wi-Fi 802.11a/b/g/n/ac/ax support
• USB-C 5 V power input
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UC-Cast-Lite-US |
| Product Type | Digital Signage Media Player |
| Processor | Quad-core ARM Cortex-A55, 1.9 GHz |
| Memory | 2 GB RAM |
| Storage | 16 GB flash |
| Video Output | (1) HDMI up to 1080p |
| Wi-Fi Standard | 802.11 a/b/g/n/ac/ax |
| Wireless Bands | 2.4 GHz & 5 GHz |
| Power Input | USB-C, 5 V DC, 1 A |
| Max Power Consumption | 5 W |
| LEDs | White/blue status LED |
| Reset Button | Factory reset |
| Operating Temp. | 0 °C to 40 °C |
| Operating Humidity | 20 % to 90 % non-condensing |
| Dimensions (without mount) | 90 × 52 × 31 mm |
| Weight (without mount) | 160 g |
