Black Box VSC-SDI-HDMI 3G-SDI/HD-SDI to HDMI Converter View larger

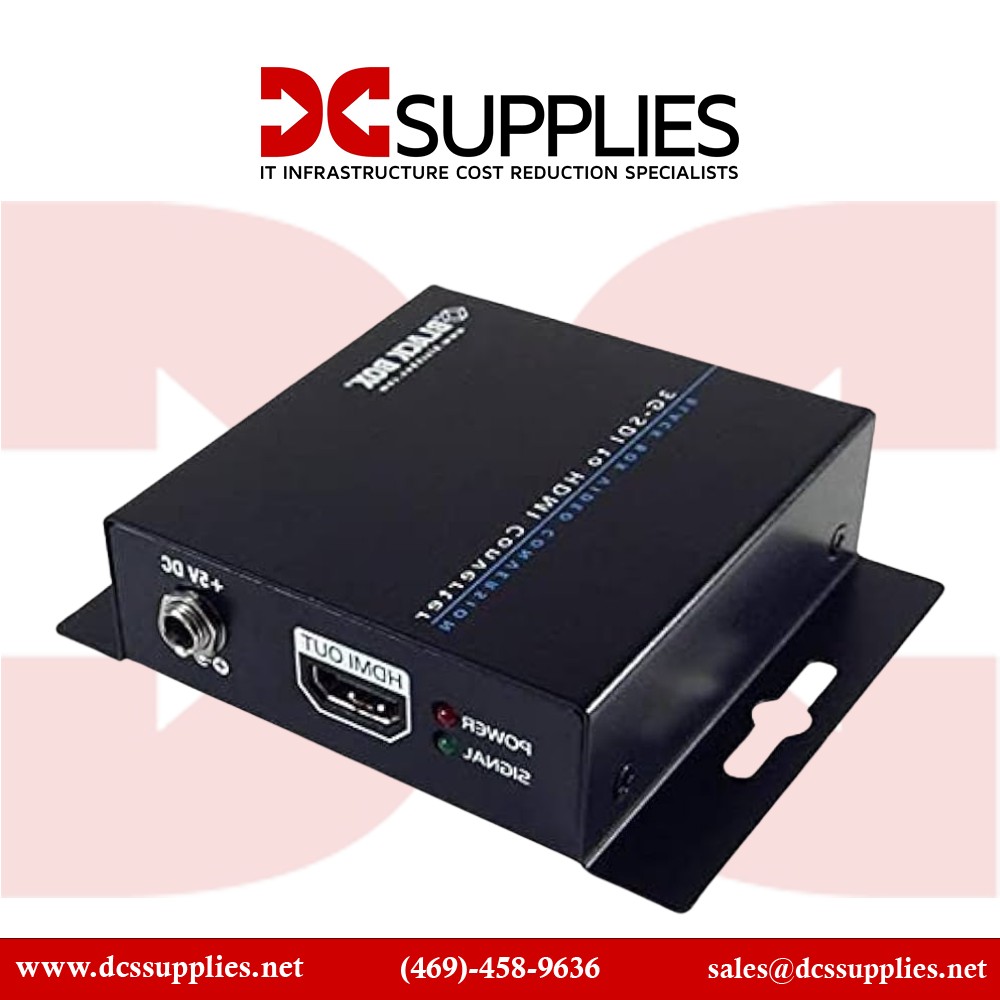

Black Box VSC-SDI-HDMI 3G-SDI/HD-SDI to HDMI Converter

New

In Stock

Black Box 3G/HD-SDI to HDMI video signal converter
×




$234.42

  • New

Detailed Specifications

Black Box VSC-SDI-HDMI

3G-SDI / HD-SDI to HDMI Converter

The Black Box VSC-SDI-HDMI Converter enables seamless conversion of professional broadcast signals such as 3G-SDI, HD-SDI, and SD-SDI into standard HDMI output for use with modern TVs, projectors, or monitors. It ensures compatibility between professional video equipment and HDMI displays in production, broadcasting, and AV environments.

Backed by Black Box quality, this converter provides real-time signal processing with minimum latency, making it essential for AV professionals working in demanding fields like live events and post-production.

Features :

Supports SDI video inputs up to 2.970 Gbps (3G-SDI) and converts to HDMI with uncompromised clarity. It also passes embedded SDI audio through to the HDMI output, ensuring synchronized sound. Compact and lightweight design makes it portable for field or rack-based operation.

Advanced Options :

With support for standard SMPTE-compliant SDI formats, the VSC-SDI-HDMI is compatible with 3G-SDI (1080p), HD-SDI (720p/1080i), and SD-SDI (480i/576i). The unit is plug-and-play, requiring no drivers or configuration, and includes status LEDs for easy monitoring.

Product Key Features

  • Converts 3G-SDI, HD-SDI, and SD-SDI video to HDMI
  • Supports data rates up to 2.97 Gbps
  • Compatible with resolutions up to 1080p Full HD
  • Embedded SDI audio passed to HDMI output
  • Compact plug-and-play converter design
  • Ideal for broadcast, production, and professional AV
  • Backed by Black Box warranty

Reliability & Performance :

The Black Box VSC-SDI-HDMI delivers stable, robust performance for professional AV workflows. With real-time signal conversion, low latency, and rugged design, it ensures flawless integration of SDI sources with HDMI displays in critical applications such as broadcasting, live events, education, and healthcare imaging.

Key Features :

  • Real-time SDI to HDMI conversion
  • Supports 3G/HD/SD-SDI inputs
  • Pass-through audio embedding
  • Compact and portable design
  • Plug-and-play with status LEDs
  • Professional-quality signal integrity

Specifications :

SpecificationDetails
Part Number VSC-SDI-HDMI
Brand Black Box
Product Type 3G-SDI / HD-SDI to HDMI Converter
Video Inputs 1 x SDI (3G/HD/SD-SDI, BNC)
Video Output 1 x HDMI
Supported SDI Rates 270 Mbps (SD-SDI), 1.485 Gbps (HD-SDI), 2.97 Gbps (3G-SDI)
Max Resolution Up to 1920x1080 @ 60Hz (Full HD)
Audio Support Embedded SDI audio to HDMI output
Video Standards SMPTE 259M, 292M, 424M
Compliance CE, FCC, RoHS
Enclosure Compact / lightweight metal housing
Power Supply External power adapter (included)
Indicators LED status indicators for Power and Signal
Installation Plug-and-play, no drivers
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Dimensions Compact portable converter (approx ~ palm-size)
Weight ~200g (lightweight)
Application Broadcasting, Video Production, Signage, Presentation
Warranty Backed by Black Box warranty
