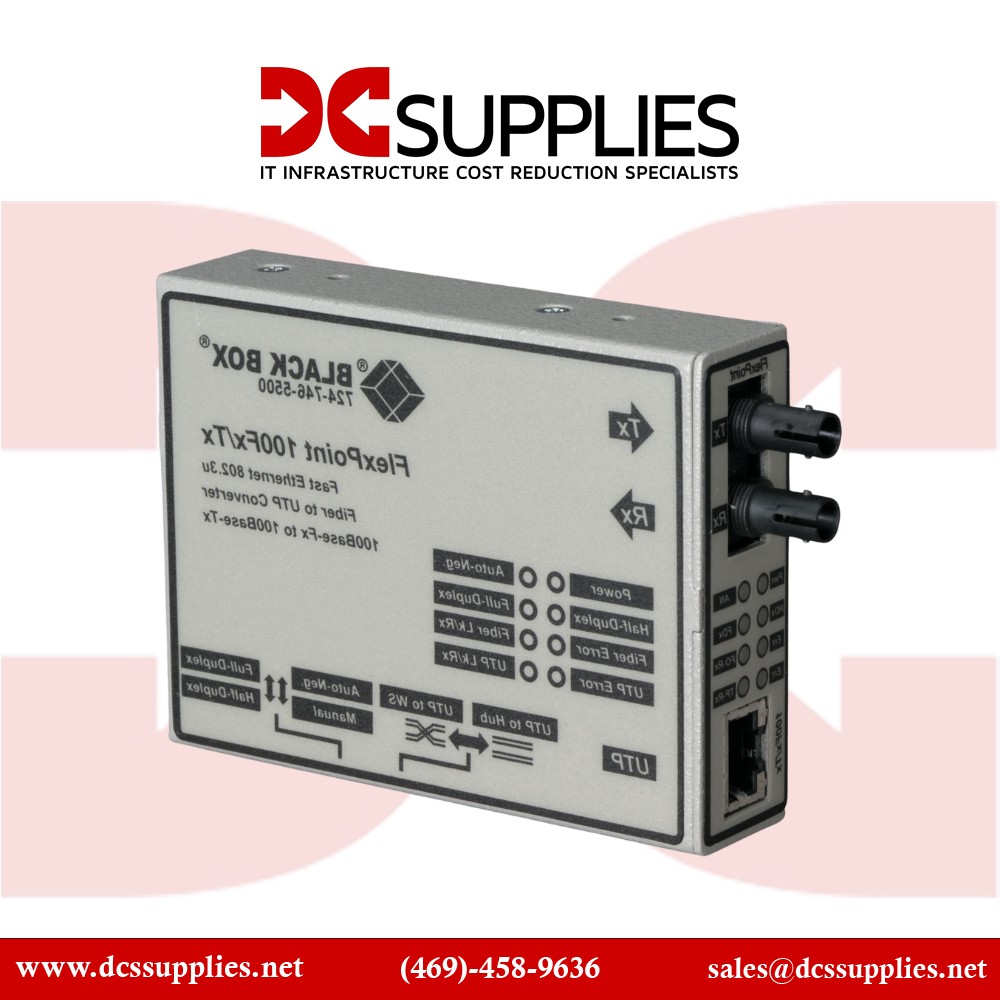

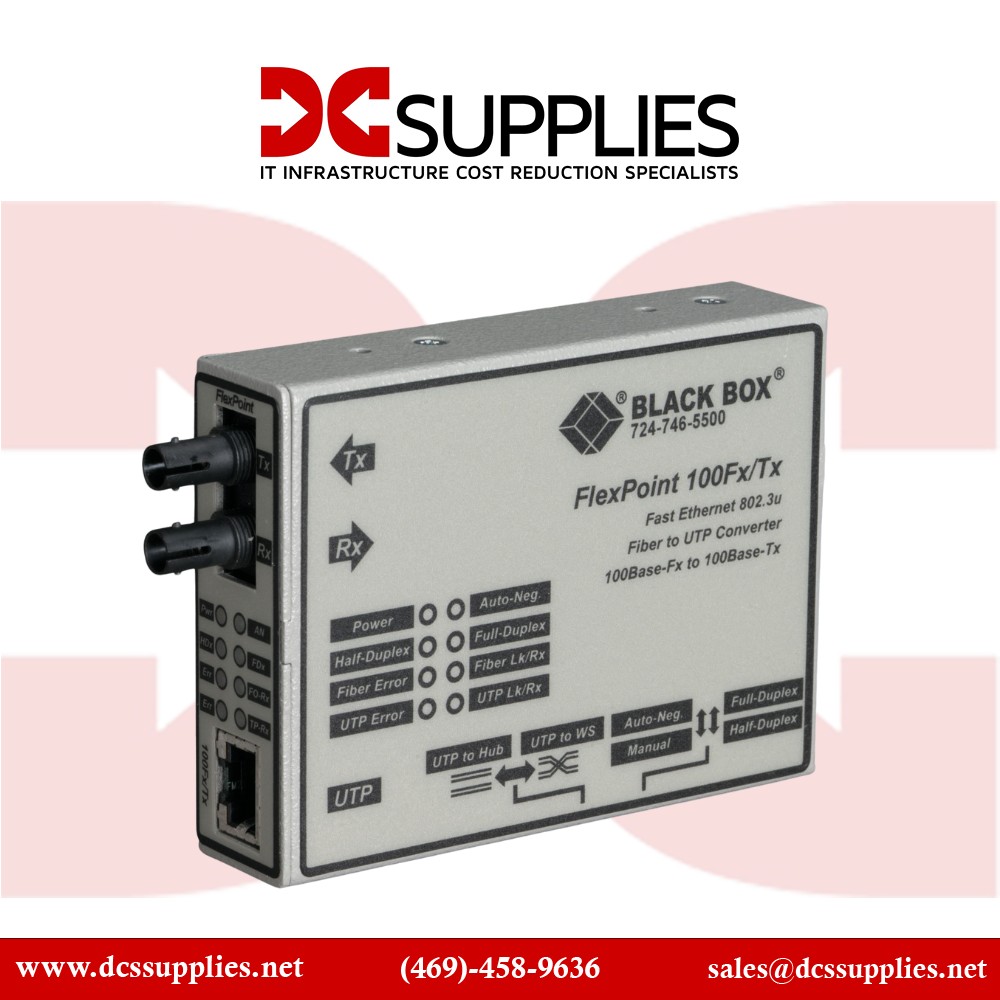

Black Box LMC212A-13MM-R3 FlexPoint Transceiver/Media Converter, Multi-mode

New

Compact Multi-mode Fiber-to-Copper Media Converter
×




  • New

Detailed Specifications

Black Box LMC212A-13MM-R3 FlexPoint

Multi-mode Transceiver/Media Converter

The Black Box LMC212A-13MM-R3 FlexPoint is a versatile multi-mode fiber transceiver and media converter that enables reliable conversion between fiber optic and copper Ethernet networks. Designed for industrial environments, it supports fast data rates up to 1 Gbps and offers a compact form factor for flexible deployment in space-constrained installations.

Features :

This FlexPoint media converter supports multi-mode fiber with a 13mm LC connector, enabling high-speed data transmission over short to medium distances. Its plug-and-play operation simplifies installation, requiring no configuration while providing seamless fiber-to-copper media conversion. Ideal for applications in industrial automation, campus networks, and enterprise environments, the LMC212A-13MM-R3 ensures efficient network extension and connectivity in areas where fiber optic cabling is required for noise immunity or long-distance runs.

Advanced Options :

The compact design allows it to fit easily into network racks, cabinets, or tight spaces, while its rugged construction and extended temperature tolerance make it suitable for challenging environments. Built for dependable operation, this media converter supports IEEE 802.3 standards for Ethernet and provides automatic MDI/MDIX crossover, minimizing network configuration issues.

Product Key Features

  • Converts multi-mode fiber to copper Ethernet
  • Supports 10/100/1000 Mbps speeds
  • Compact FlexPoint transceiver design
  • Plug-and-play operation for easy integration
  • Extended temperature range for industrial use

Reliability & Performance :

Its extended operating temperature range ensures stable performance in harsh industrial conditions. With low power consumption and robust signal integrity, it maintains high data throughput and reduces downtime. Automatic MDI/MDIX crossover detection and compliance with IEEE standards ensure seamless integration and reliable operation in demanding environments.

Key Features :

  • Multi-mode fiber to copper Ethernet media conversion
  • Supports 10/100/1000 Mbps speeds
  • LC connector with 13mm multi-mode fiber interface
  • Plug-and-play installation, no configuration required
  • Rugged design for industrial environments
  • Extended operating temperature range (-20°C to 70°C)
  • Automatic MDI/MDIX crossover detection
  • Compact FlexPoint form factor for flexible deployment
  • Compliant with IEEE 802.3, 802.3u, 802.3z standards

Specifications :

FeatureSpecification
Model Number LMC212A-13MM-R3
Brand Black Box
Product Type FlexPoint Multi-mode Transceiver/Media Converter
Fiber Type Multi-mode
Fiber Connector LC, 13mm
Data Rate 10/100/1000 Mbps
Copper Port 1 x RJ-45 10/100/1000Base-T
Media Conversion Fiber to copper Ethernet
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% non-condensing
Power Supply 12V DC (adapter included)
Dimensions (W x D x H) Approx. 3.2 x 2.3 x 1.1 in (81 x 58 x 28 mm)
Weight Approx. 0.4 lbs (180 g)
Compliance IEEE 802.3, 802.3u, 802.3z, RoHS
