Detailed Specifications

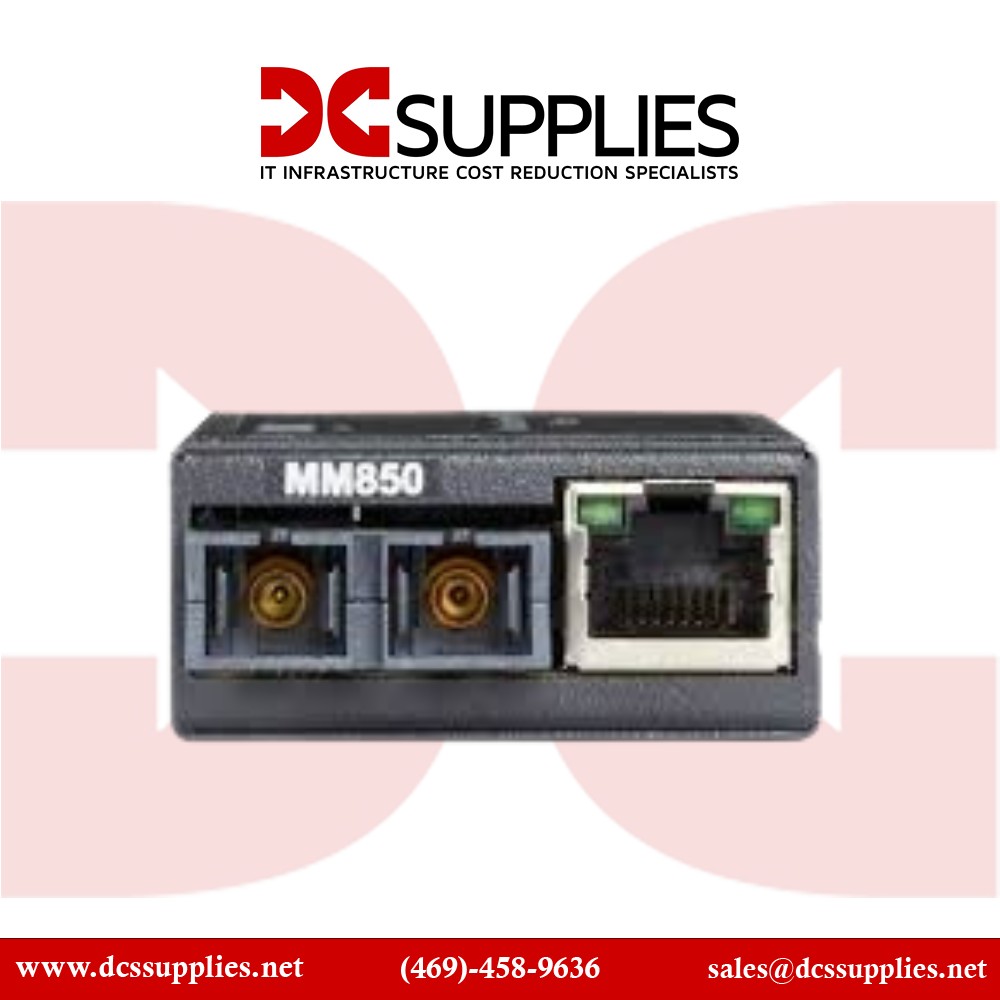

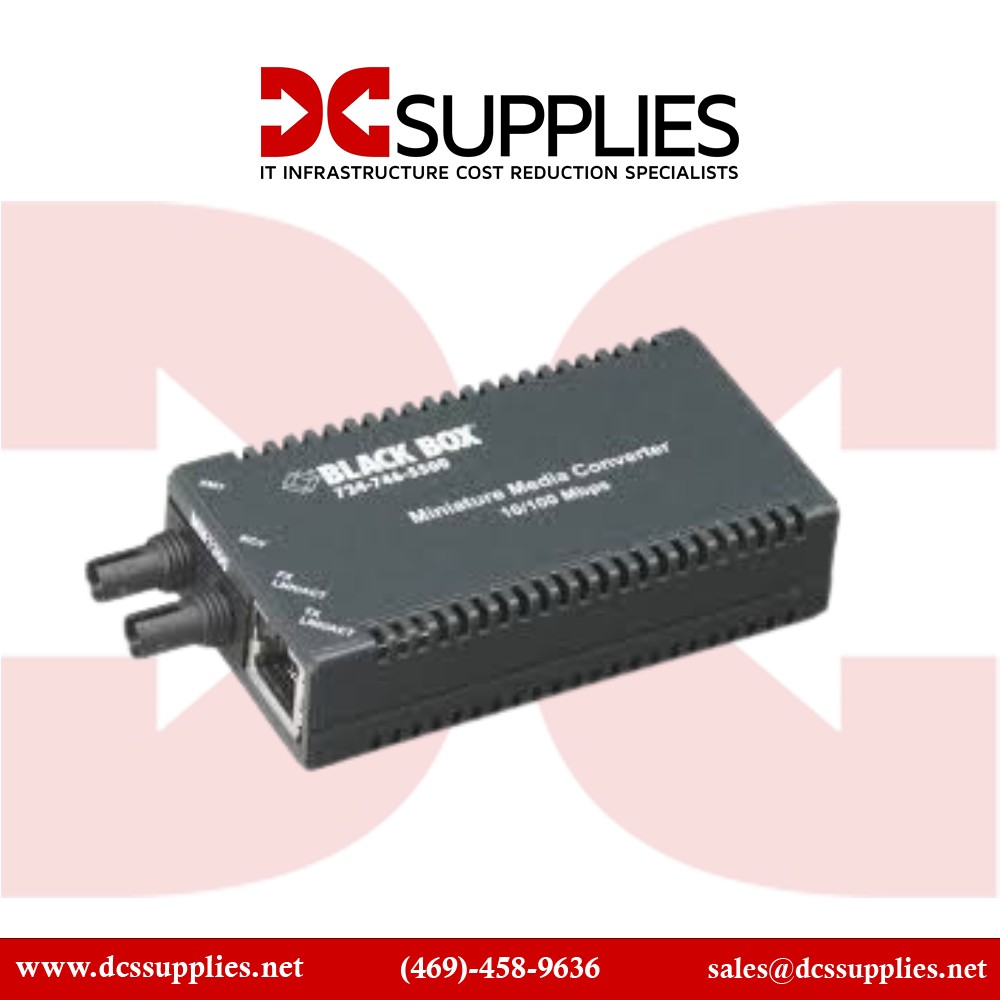

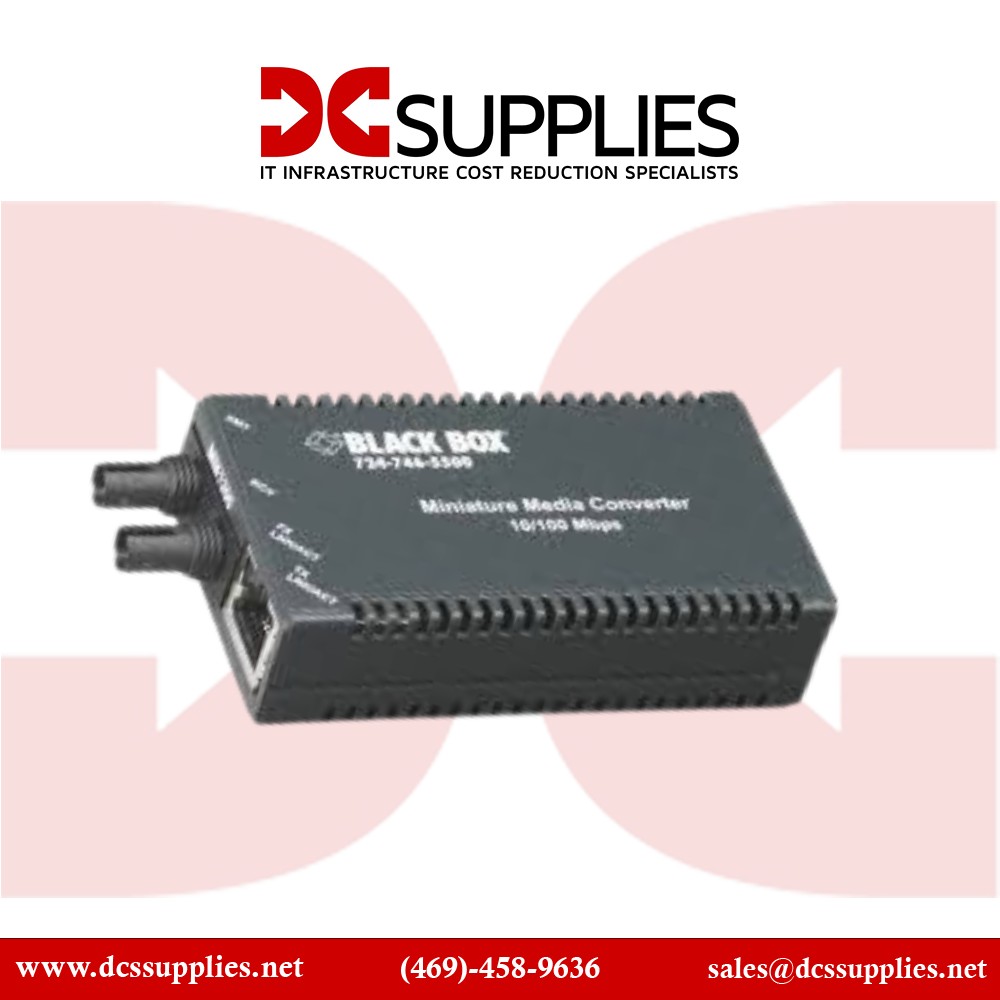

Black Box LHC041A-R4 Fast Ethernet Media Converter, Multi, ST/SC
Overview :
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. The LHC040A-R4 and LHC041A-R4 Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable, which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray.
Key Features
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size; measures just 0.8"H x 1.8"W x 3.4"D
- Powered by a universal AC power supply or the optional rackmountable PowerTray
Specifications :
| Product Name |
Extend LAN Reach with Fiber Converters |
| Manufacturer Part Number |
LHC041A-R4 |
| Product Type |
Transceiver/Media Converter |
| Ethernet Technology |
Fast Ethernet |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Product Family |
Multipower Miniature |
| Number of SC Ports |
2 |
| Media Type Supported |
Optical Fiber
Twisted Pair
|
| Fiber Mode Supported |
Multi-mode |
| Total Number of Ports |
3 |
| SC Port Type |
Duplex |
| TAA Compliant |
Yes |
| Form Factor |
DIN Rail Mountable |
| Network Technology |
10/100Base-T
100Base-SX
|
| Maximum Distance Supported |
984.25 ft |
| Power Source |
AC Adapter |
| Environmentally Friendly |
Yes |
| Fiber Optic Wavelength |
850 nm |
| Country of Origin |
Taiwan |
| Height |
0.8" |
| Width |
1.8" |
| Depth |
3.4" |
| Product Line |
Multipower Miniature |
