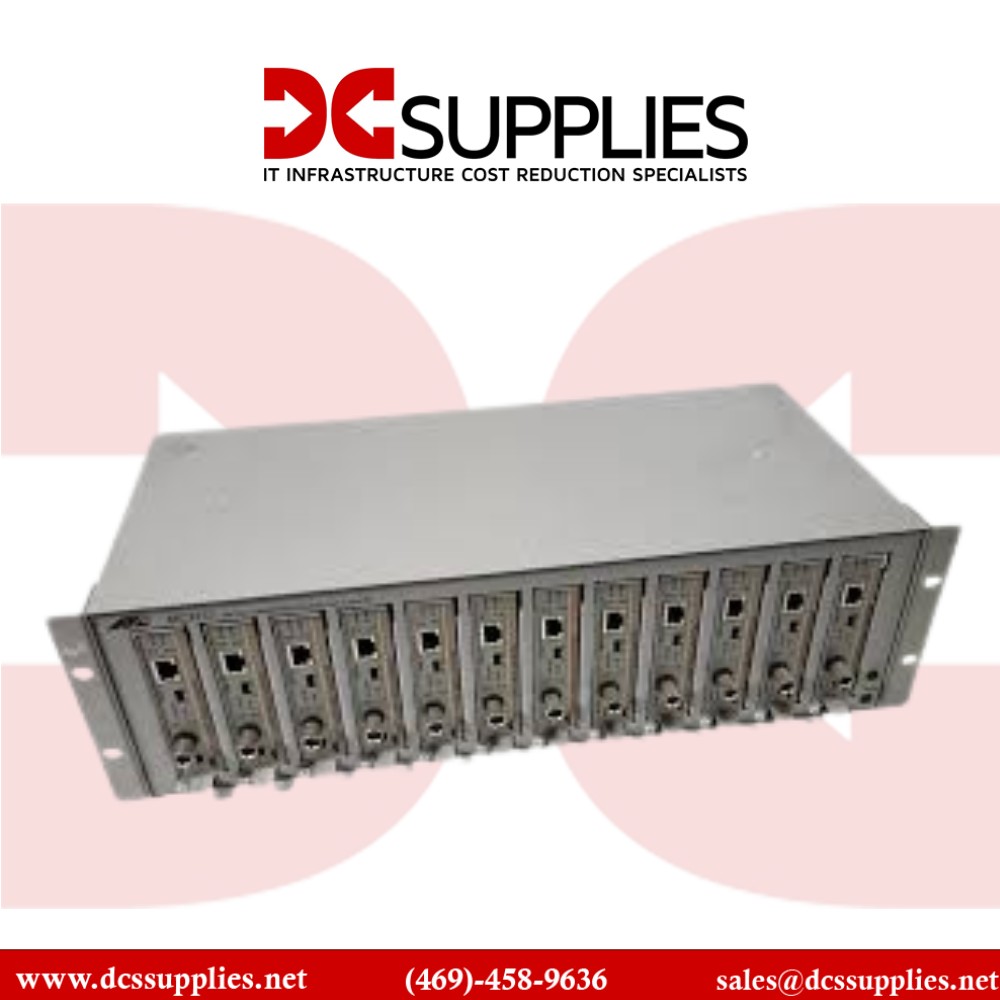

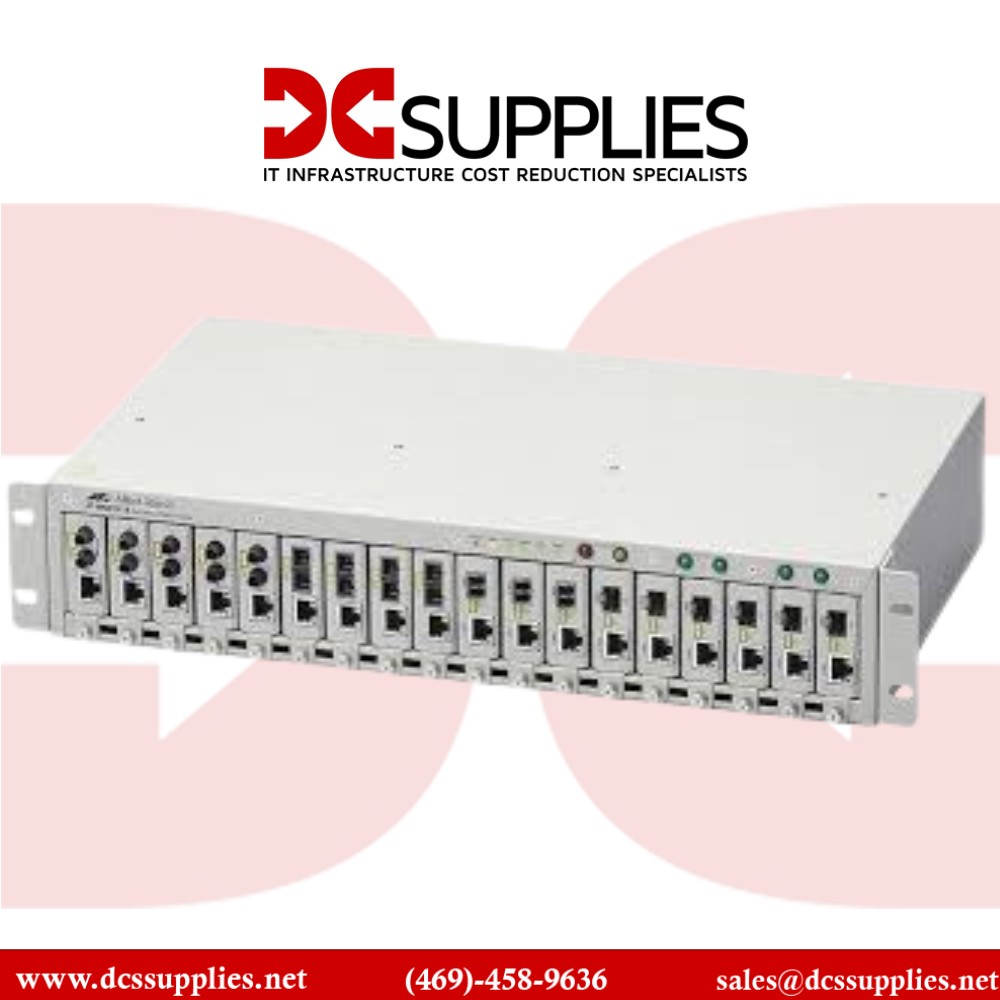

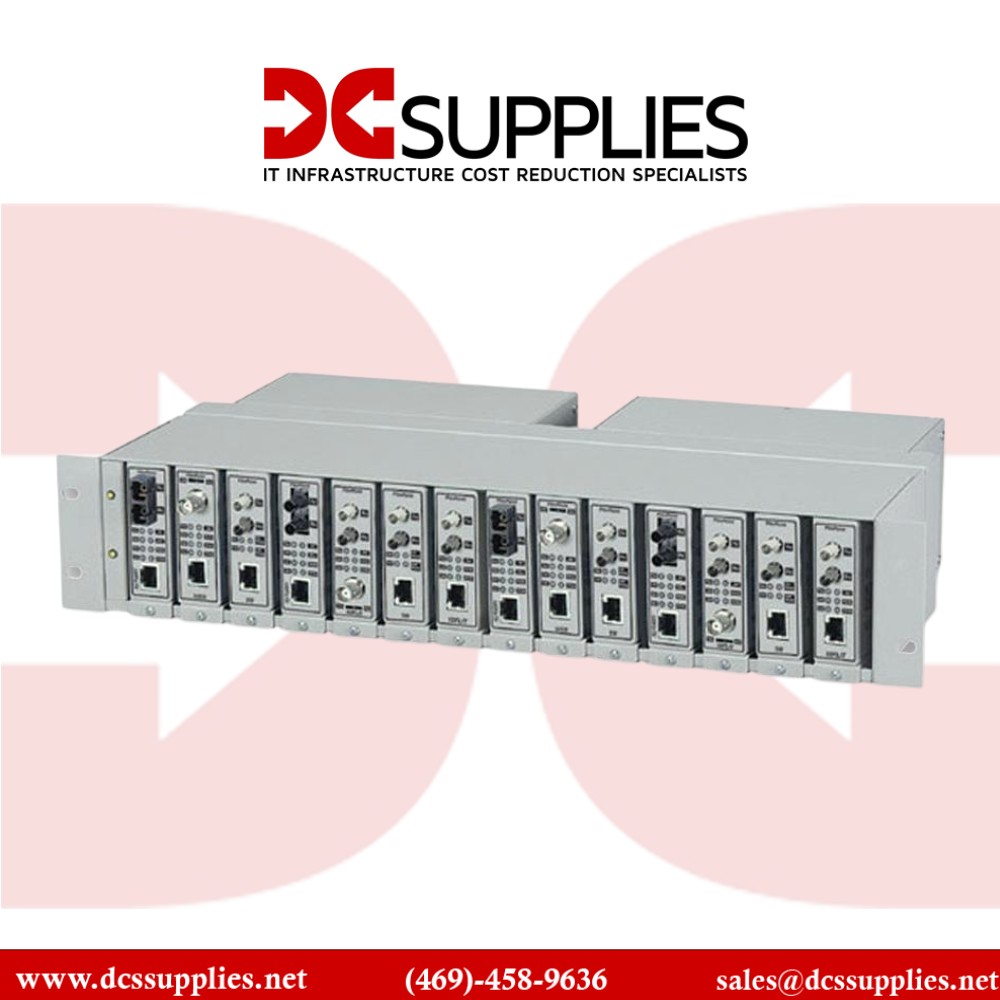

Black Box LMC200 FlexPoint

14-Slot Rackmount Power Chassis, Single Power Supply

The Black Box LMC200 FlexPoint 14-Slot Power Chassis is a robust, rackmountable solution for consolidating and powering multiple FlexPoint media or mode converters. Designed to accommodate up to 14 converter modules in a single 2U chassis, this unit is perfect for enterprise and industrial applications requiring centralized fiber or copper conversion. It offers flexibility, ease of use, and high reliability in demanding networking environments.

Features :

Compatible with any FlexPoint device—including media converters, RS-232 to fiber converters, mode converters, and line drivers—the LMC200 chassis allows you to build scalable fiber-based networks with centralized power and organization. Modules slide easily into the chassis and draw power from a shared internal supply, reducing clutter and simplifying deployment. The unit is designed for 115–230 VAC input and supports global power standards.

Advanced Options :

The LMC200 ships with a single integrated power supply and offers an open bay for an optional second hot-swappable power module. This provides critical power redundancy for mission-critical networking environments, helping ensure continuous operation. With this design, FlexPoint modules remain powered even during scheduled maintenance or power module replacement, enhancing system uptime and reliability.

Product Key Features

  • Supports up to 14 FlexPoint media or mode converters
  • Single AC power supply with optional redundant slot
  • 2U rackmount design for efficient space use
  • Compatible with all FlexPoint converter types
  • Optional hot-swappable redundant power supply
  • Ideal for industrial, enterprise, or telecom environments

Reliability & Performance :

Occupying just 2U of rack space, the LMC200 fits neatly into standard telecom and data center racks. It can also be mounted on walls or used as a standalone unit if rack space is limited. Whether deployed in office networks or harsh industrial settings, this power chassis offers durable construction and long-term performance with support for both multimode and single-mode FlexPoint modules for a variety of application needs.

Key Features :

  • Powers up to 14 FlexPoint converter modules
  • Single 115–230 VAC internal power supply
  • Slot for optional hot-swappable redundant power module
  • Compatible with media converters, RS-232/fiber, and more
  • Rackmount, wall-mount, or standalone installation options
  • Occupies only 2U of rack space

Specifications :

SpecificationDetails
Model Number LMC200
Brand Black Box
Product Type Media Converter Chassis
Product Line FlexPoint
Number of Slots 14
Number of Power Supplies 1 included, 1 optional (hot-swappable)
Input Voltage 115 V AC / 230 V AC
Form Factor Rack-mountable (2U), Wall-mount, Standalone
Compatibility All FlexPoint converter modules
Dimensions (per module slot) 1" (H) x 3" (W) x 4" (D)
Chassis Dimensions (Approximate) 3.5" (H) x 17" (W) x 10" (D) (14-slot rack)
Weight Approx. 7.5 lbs (fully populated)
Redundancy Support Yes (optional power module)
