Detailed Specifications

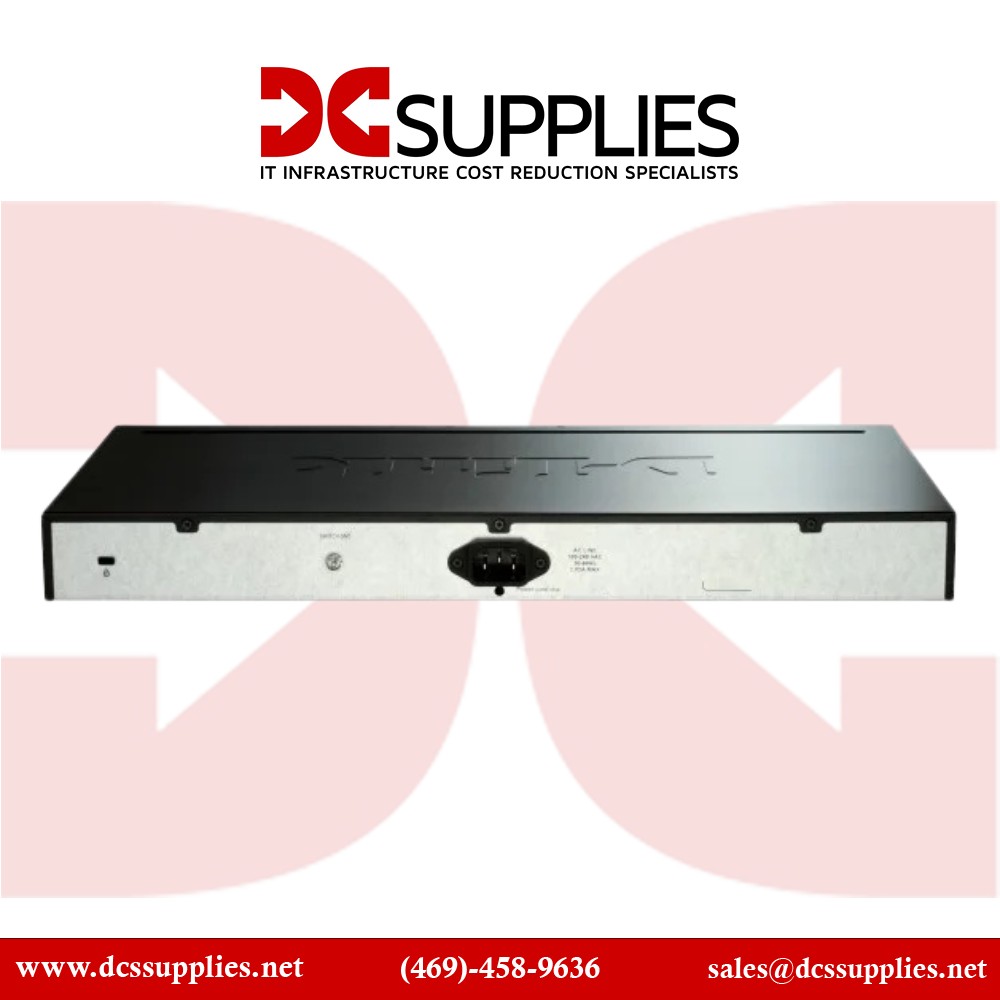

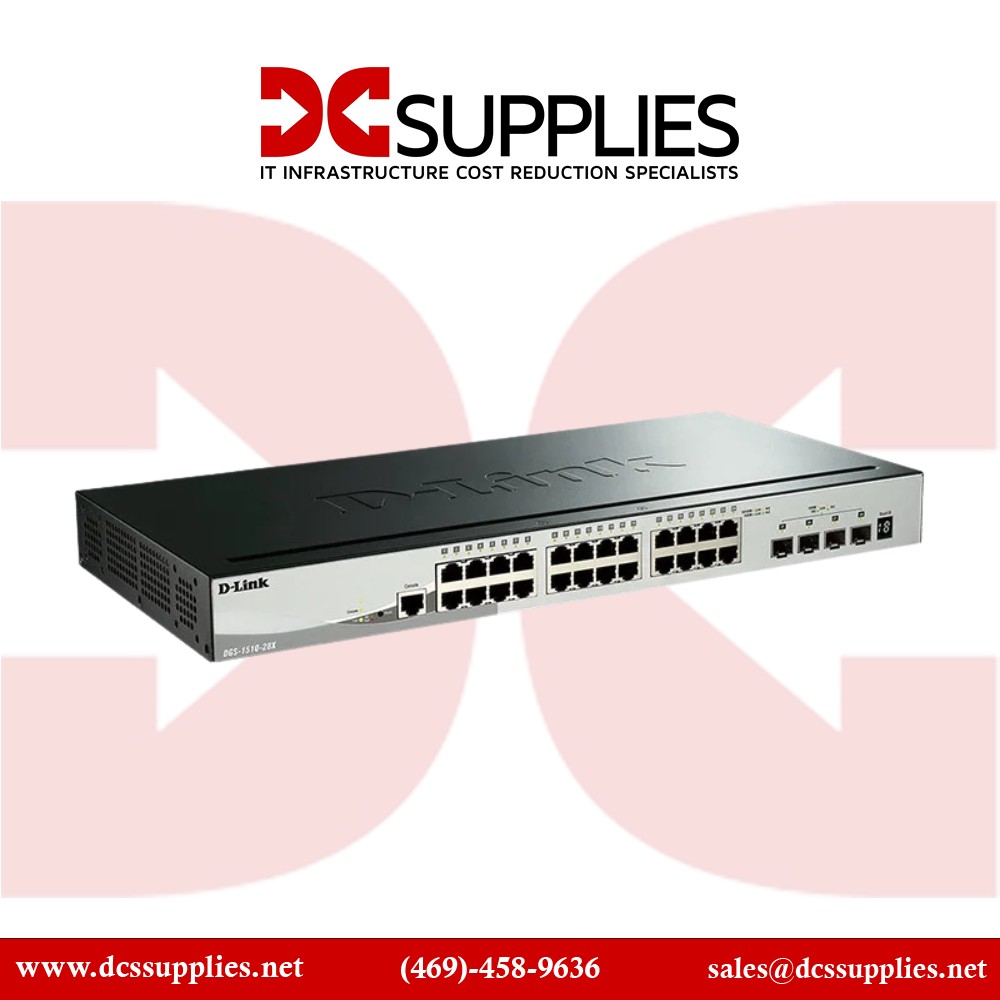

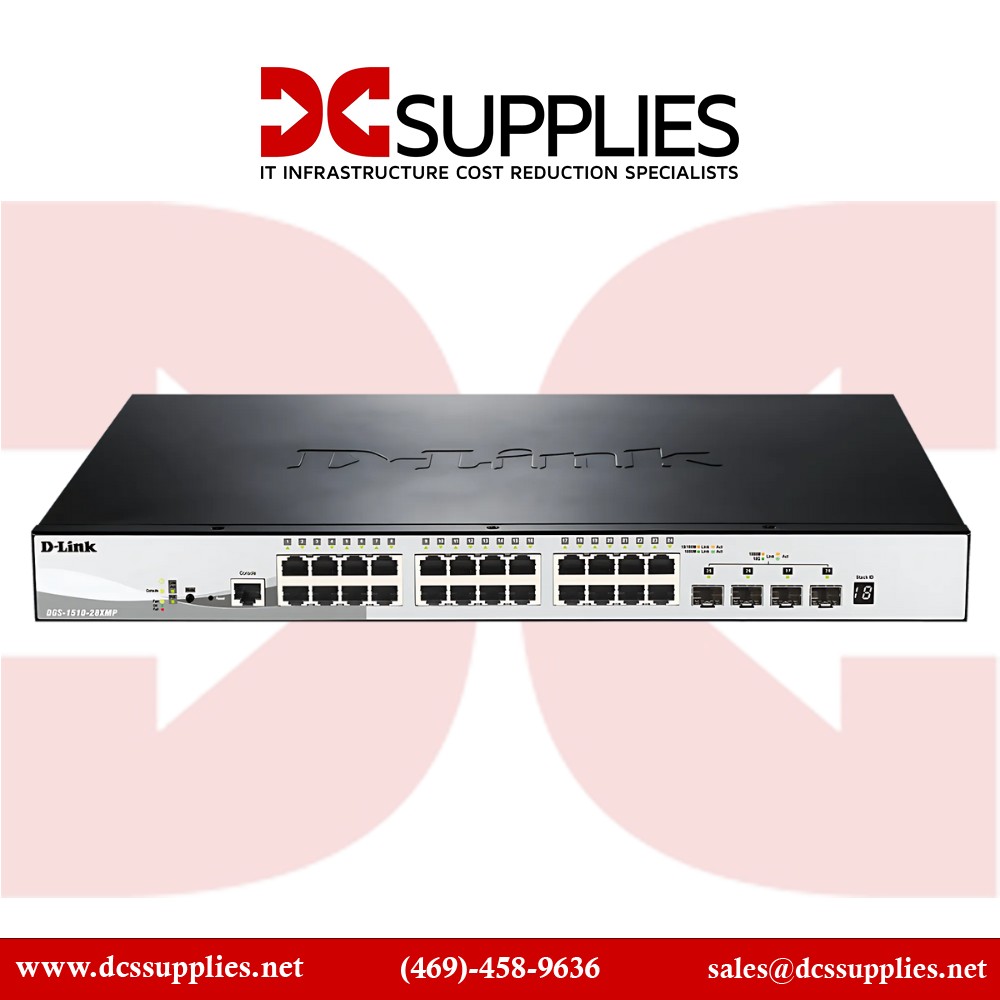

Managed L3 Network Switch - 28-Port Gigabit with 10G Uplinks
The D-Link DGS-1510-28X is a next-generation Layer 3 Smart Managed Switch, purpose-built for growing businesses and enterprise environments. With 28 total ports, including 4× 10-Gigabit SFP+ uplinks, it offers high-bandwidth uplinks and extensive management features at a competitive price point×ideal for campus networks, branch offices, or small data centers.
Features
Supporting static routing, VLAN segmentation, and stacking of up to 6 switches, the DGS-1510-28X delivers flexible network design and scalability. IT administrators benefit from a rich suite of management tools including web UI, command-line access,
Advanced Options
SNMP support, and dual image firmware. Its fanless design ensures quiet operation while maintaining reliability in mission-critical deployments.
Product Key Features
24× Gigabit RJ-45 ports + 4× 10G SFP+ uplinks for high-performance networking
Layer 3 Lite routing for enhanced traffic control and inter-VLAN routing
Smart Managed switch with robust CLI, SNMP, and web-based interface
High switching capacity of 128 Gbps for seamless data flow
Energy-efficient Ethernet (IEEE 802.3az) for reduced power consumption
Advanced security features like Access Control Lists (ACLs) and 802.1X authentication
Reliability & Performance
Engineered with a 128 Gbps switching fabric, the DGS-1510-28X ensures non-blocking throughput even during peak traffic loads. Features like 802.1p QoS, Loopback Detection, and IGMP Snooping optimize traffic flows for voice, video, and multicast applications. Meanwhile, energy-saving features and low power consumption reduce operating costs without compromising performance.
Key Features :
24 × 10/100/1000 Mbps RJ-45 ports
4 × 10-Gigabit SFP+ uplink ports
Layer 3 Lite (static routing) support
128 Gbps switching capacity
Supports stacking (physical/virtual)
Dual image firmware for redundancy
IEEE 802.3az energy-saving technology
Advanced security: 802.1X, ACLs, Storm Control
| Specification | Details |
|---|
| Model Number | DGS-1510-28X |
| Product Type | Managed Stackable L3 Gigabit Switch |
| Total Ports | 28 |
| RJ-45 Ports | 24 × 10/100/1000 Mbps |
| SFP+ Uplink Ports | 4 × 10-Gigabit SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.24 Mpps |
| Layer Support | Layer 2 + Layer 3 Lite (Static Routing) |
| Stacking Support | Up to 6 units (physical/virtual) |
| Management Interface | Web UI, CLI, SNMP, RMON |
| Energy Efficiency | IEEE 802.3az (EEE) |
| MAC Address Table | 16K entries |
| Dimensions | 440 × 210 × 44 mm |
| Weight | 2.5 kg (approx.) |
| Operating Temperature | 0°C to 50°C |
