Detailed Specifications

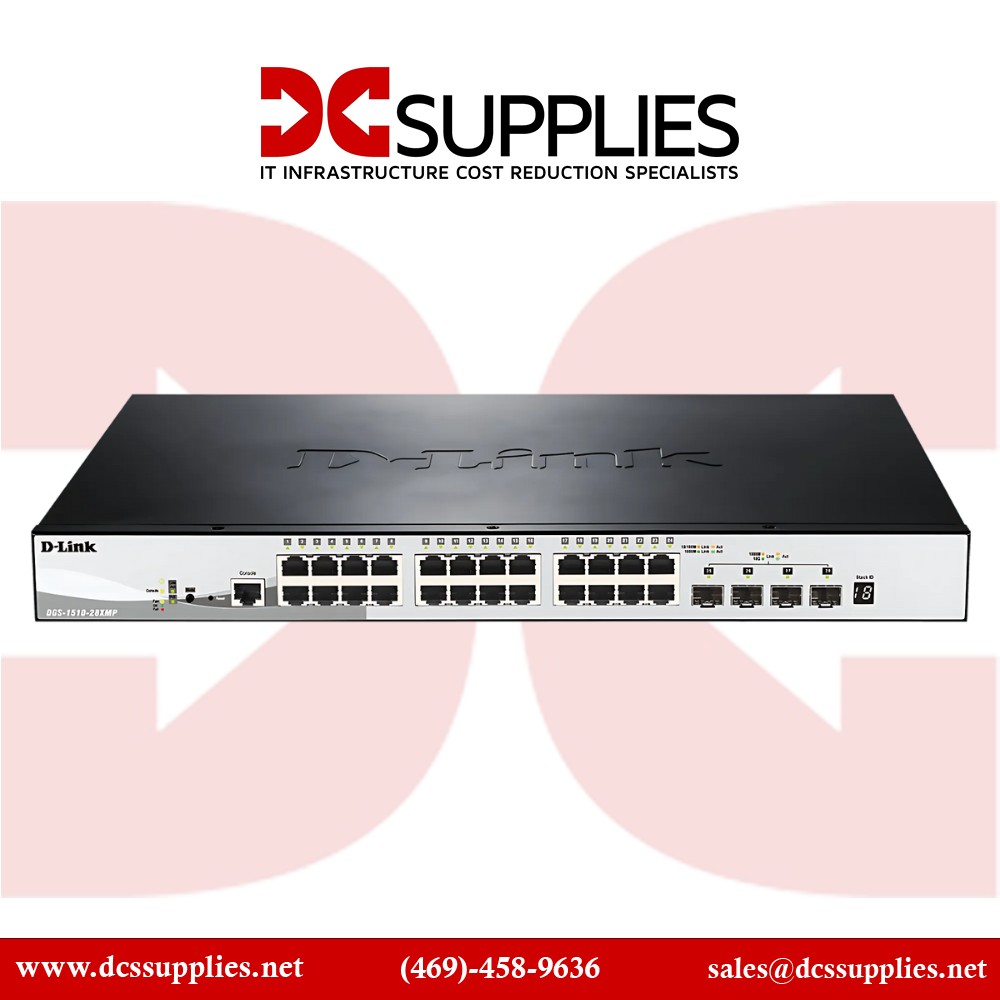

Smart Managed PoE+ Switch - 28-Port Gigabit with 10G SFP+ Uplinks
The D-Link DGS-1510-28XMP is a high-performance Gigabit Smart Managed PoE+ switch, perfect for medium-sized business networks that demand flexibility and power delivery. With 24 PoE+ ports and 4× 10G SFP+ uplinks, it's an ideal central point for powering devices like IP phones, wireless APs, and surveillance systems while maintaining strong uplink capacity for core network integration.
Features
Built with Layer 2+ and Layer 3 Lite features, the DGS-1510-28XMP offers advanced capabilities such as static routing, ACLs, and Auto Voice VLAN, making it well-suited for VoIP and video deployments.
Advanced Options
t supports physical and virtual stacking of up to 6 units, simplifying expansion and centralized management. The smart fan ensures efficient cooling while minimizing noise in office environments.
Product Key Features
4× 10-Gigabit SFP+ uplinks for high-speed backbone connectivity
Layer 3 Lite functionality including static routing and inter-VLAN routing
Supports IP cameras, access points, and VoIP phones with PoE+
Smart web-based and CLI management with dual firmware images
Energy-efficient design with IEEE 802.3az support
Reliability & Performance
The switch supports IEEE 802.3at PoE+ across all 24 ports, providing up to 30W per port with a total budget of 370W. This enables seamless integration of power-hungry devices without the need for extra power lines. Combined with robust security, Quality of Service (QoS), and loop prevention features, it ensures a resilient and energy-efficient network backbone.
Key Features :
24 × Gigabit PoE+ RJ-45 ports (802.3af/at)
4 × 10-Gigabit SFP+ uplink ports
370W total PoE power budget
Layer 3 Lite support (static routing)
Virtual/physical stacking (up to 6 switches)
Web UI, CLI, SNMP, and RMON management
IEEE 802.3az energy efficiency
Advanced security and VLAN features
| Specification | Details |
|---|
| Model Number | DGS-1510-28XMP |
| Product Type | Smart Managed PoE+ Switch |
| Total Ports | 28 |
| RJ-45 Ports | 24 × 10/100/1000 Mbps PoE+ |
| SFP+ Uplink Ports | 4 × 10-Gigabit SFP+ |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power Budget | 370W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.24 Mpps |
| Layer Support | Layer 2 + Layer 3 Lite (Static Routing) |
| Stacking Support | Up to 6 units (physical/virtual) |
| Management Interface | Web UI, CLI, SNMP, Dual Image |
| Energy Efficiency | IEEE 802.3az (EEE) |
| MAC Address Table | 16K entries |
| Dimensions | 440 × 250 × 44 mm |
| Weight | 3.6 kg (approx.) |
| Operating Temperature | 0°C to 50°C |
