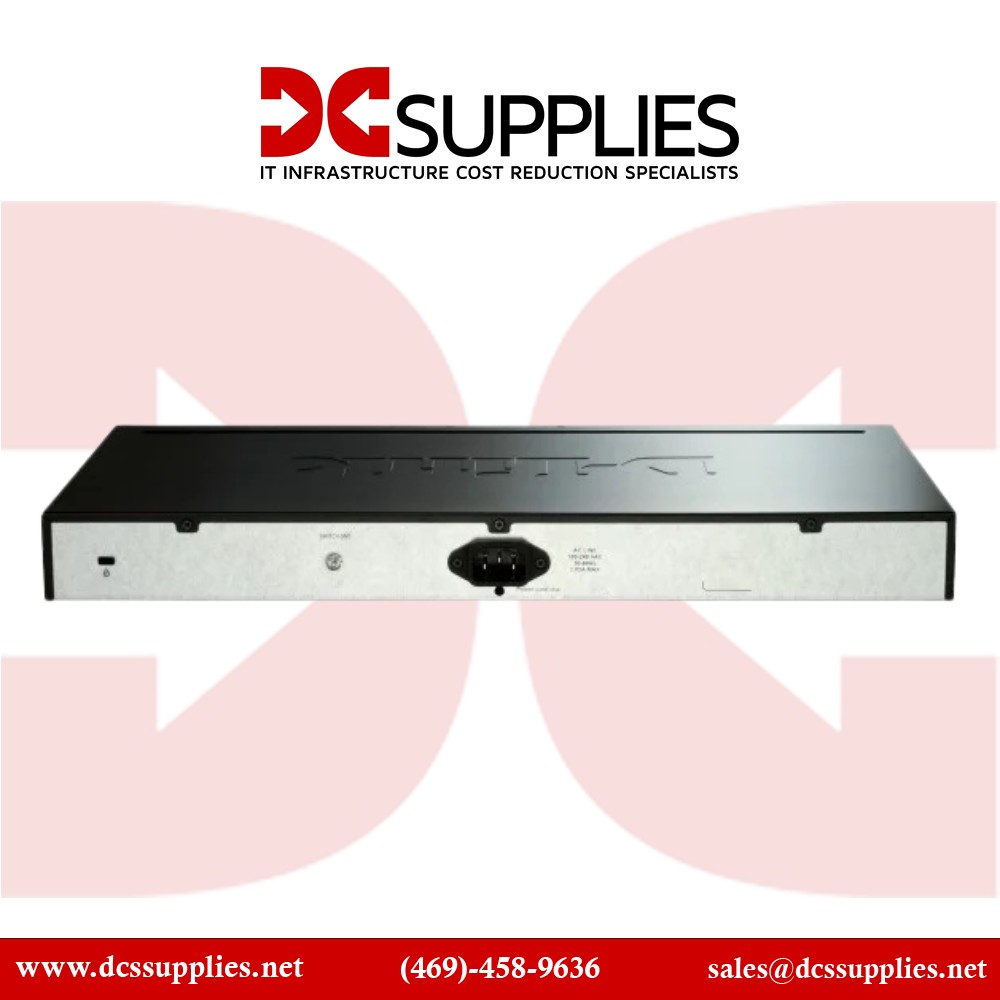

D-Link DGS-1510-20

DGS-1510-20 Gigabit Stackable Smart Managed Switch with 10G Uplinks

The D-Link DGS-1510-20 is a high-performing, stackable Smart Managed switch tailored for SMB edge and mid-tier network environments. With 16 Gigabit ports, dual 10G SFP+ uplinks, and advanced Layer 2/partial Layer 3 capabilities, it offers enterprise-grade performance without the complexity or cost of full-management switches.

Features

This switch excels in connectivity, combining 16 RJ-45 Gigabit ports with 2 SFP uplinks and 2 10 GbE SFP+ ports that support both stacking and backbone uplinks. It handles VLANs, link aggregation, MSTP, static routes, and IGMP/MLD snooping through a polished web GUI, CLI, SNMP, and console access.

Advanced Options

Networking pros benefit from stacking up to 6 devices physically and up to 32 virtually using D-Link's Single IP Management (SIM) feature. The switch includes smart features like Surveillance Mode for autonomous VLAN and QoS configuration for IP cameras.

Product Key Features

• 16× 10/100/1000 Mbps RJ-45 ports + 2× 10 GbE SFP+ + 2× 1 GbE SFP uplinks for flexible stacking & uplink connectivity

• Stackable (up to 6 units physical or 32 via virtual SIM) with single-IP management

• Supports Layer 2 + Lite Layer 3 static routing, VLANs, LACP, MSTP/stp, IGMP snooping

• Robust security suite: ACLs, 802.1X, ARP/MPLS spoofing protection, Safeguard Engine, DoS prevention

• Energy Efficiency: IEEE 802.3az, D-Link Green 3.0, fanless design, low power (~20 W)

• Dual firmware/config support, CLI, console, SNMP, web GUI (11 languages), optional D-View software

Reliability & Performance

Engineered for dependable 24/7 performance, the DGS-1510-20 is fanless, consumes around 20 W, and features energy-saving technologies like EEE and LED/off schedules . Security measures such as Safeguard Engine, ACL, 802.1X, ARP/MAC binding, and DoS defense are built-in. The dual firmware/images architecture allows safe updates and easy rollback.

Key Features :

• 16 × Gigabit RJ-45 ports

• 2 × Gigabit SFP uplinks

• 2 × 10 GbE SFP+ uplinks/stacking ports

• Layer 2 switching with Layer 3 static routing

• VLAN support (802.1Q), LACP, MSTP/STP, IGMP/MLD snooping

• Security: 802.1X, ACL, ARP spoofing, DoS, Safeguard Engine

• Energy wise: IEEE 802.3az, Green 3.0, fanless

• Management via web, CLI, console, SNMP, D-View, SIM stack

• Dual firmware/configuration images

Specification	Details
Model Number	DGS-1510-20
Product Type	Smart Managed Stackable Switch
RJ-45 Ports	16 × 10/100/1000 Mbps
SFP Uplink Ports	2 × 1 Gbps SFP
SFP+ Uplink Ports	2 × 10 Gbps SFP+
Stacking Support	Up to 6 physical / 32 virtual via SIM
Switching Capacity	76 Gbps
Forwarding Rate	56.54 Mpps
MAC Table	16,384 entries
VLANs	802.1Q, Private, Surveillance, Voice
Static Routing	IPv4/IPv6 Lite Layer 3
QoS & Multicast	802.1p, DSCP, IGMP/MLD snooping
Security	802.1X, ACL, ARP/MAC binding, DoS, Safeguard Engine
Management Interfaces	Web GUI (11 lang), CLI, Console, SNMP v1/v2c/v3, D-View
Energy Efficiency	IEEE 802.3az, Green 3.0, fanless, port/LED power saving
Stacking Topology	Physical ring/linear with DAC/SFP+
Power Consumption	~20.3 W
Dimensions	280 × 180 × 44 mm (1U rackmount)
Weight	~1.24 kg
