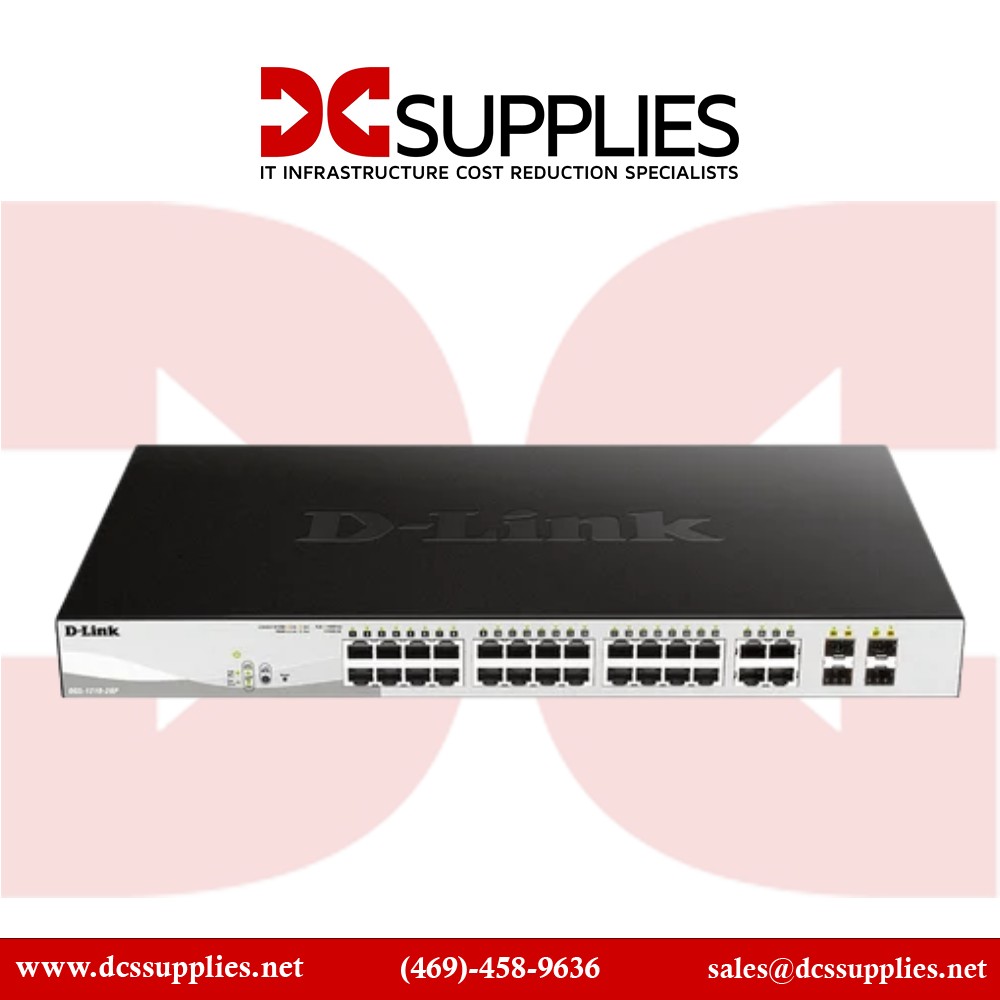

D-Link DGS-1250-28X 28-Port 10-Gigabit Smart Managed Switch

New

D-Link DGS-1250-28X 28-Port 10-Gigabit Smart Managed...

×




  • New

Detailed Specifications

D-Link DGS-1250-28X

1250‑28X 28‑Port 10‑Gigabit Smart Managed Switch

The D-Link DGS‑1250‑28X is a powerful yet cost‑effective 28‑port Smart Managed switch, tailored for SMBs and enterprise edge deployments. Combining 24 Gigabit Ethernet ports with four 10 Gbps SFP+ uplinks and rich Layer 2/Lite‑3 capabilities,it’s ideal for high‑performance networking with reliable surge protection and simplified management.

Features

Built for performance and scalability, the DGS‑1250‑28X provides broad connectivity with its mixed port configuration—perfect for linking servers, NAS devices, and uplinking to core switches. It supports essential L2 features like VLAN, STP/RSTP/MSTP, link aggregation (LACP), and IGMP snooping, while offering Lite L3 static routing for inter-VLAN traffic. The device is managed via an intuitive web interface (11 languages), CLI, or console port, making setup and monitoring simple.

Advanced Options

Advantageous for surveillance and VoIP environments, the “Surveillance Mode” automatically adjusts QoS, IGMP snooping, and VLAN segmentation for optimal video performance. Dual firmware/configuration support ensures easy rollback and enhanced uptime. All ports are equipped with built-in 6 kV surge protection, shielding your network from power spikes

Product Key Features

  • 24× 1 Gigabit RJ‑45 ports plus 4× 10 Gbps SFP+ uplink slots for high-speed backbone connectivity

  •  Layer 2 + Lite Layer 3 features: VLAN, link aggregation, static routing, IGMP snooping, QoS

  • Robust security: 802.1X authentication, ACLs, ARP spoofing prevention, D-Link Safeguard Engine

  •  6 kV surge protection on all Gigabit ports for enhanced network resilience

  •  Dual-image and configuration support, console access, CLI & intuitive web GUI in 11 languages

  •  Energy-efficient design with IEEE 802.3az support and fanless models for silent operation

Reliability & Performance

With fanless models and low power consumption (~30 W idle, ~30–39 W max) the DGS‑1250‑28X delivers whisper-quiet, efficient operation. Its dual-image firmware and console access capacities enhance reliability and management flexibility. Surge protection further safeguards your network investment. Supporting IPv6, 802.1X, ACLs, ARP spoofing prevention, and D-Link Safeguard Engine, it ensures network security is robust.

Key Features :

  • 146GB storage capacity

  • 15,000 RPM rotational speed

  • Dual-port SAS 6Gb/s interface

  • 2.5-inch small form factor

  • Hot-pluggable for serviceability

  • Designed for HP enterprise servers

  • 64MB cache for improved performance

  • High shock/vibration resistance

  • Energy-efficient operation

  • Built for continuous enterprise workloads

SpecificationDetails
Model Number DGS‑1250‑28X
Product Type Smart Managed Layer 2 + Lite Layer 3 Switch
Total Ports 28
Ethernet Ports 24 × Gigabit RJ‑45 (10/100/1000 Mbps)
Uplink Ports 4 × 10 Gbps SFP+
Switching Capacity 128 Gbps
Forwarding Rate 95.24 Mpps
VLAN Support 802.1Q, Private & Surveillance VLAN
QoS 802.1p CoS, DSCP, band control
Surge Protection 6 kV on all Gigabit ports
Security 802.1X, ACL, ARP spoof prevention
Management Interfaces Web GUI, CLI, Console, SNMP v1/v2c/v3
Dimensions (W×D×H) 441 × 140 × 44 mm (1 U rack)
Weight ~1.75 kg
Power Consumption 8.7 W standby / 30.6 W max
Operating Temp/Humidity –5 °C to 50 °C / 0–95% non‑condensing RH
