Mellanox920-9N110-00F1-0C0

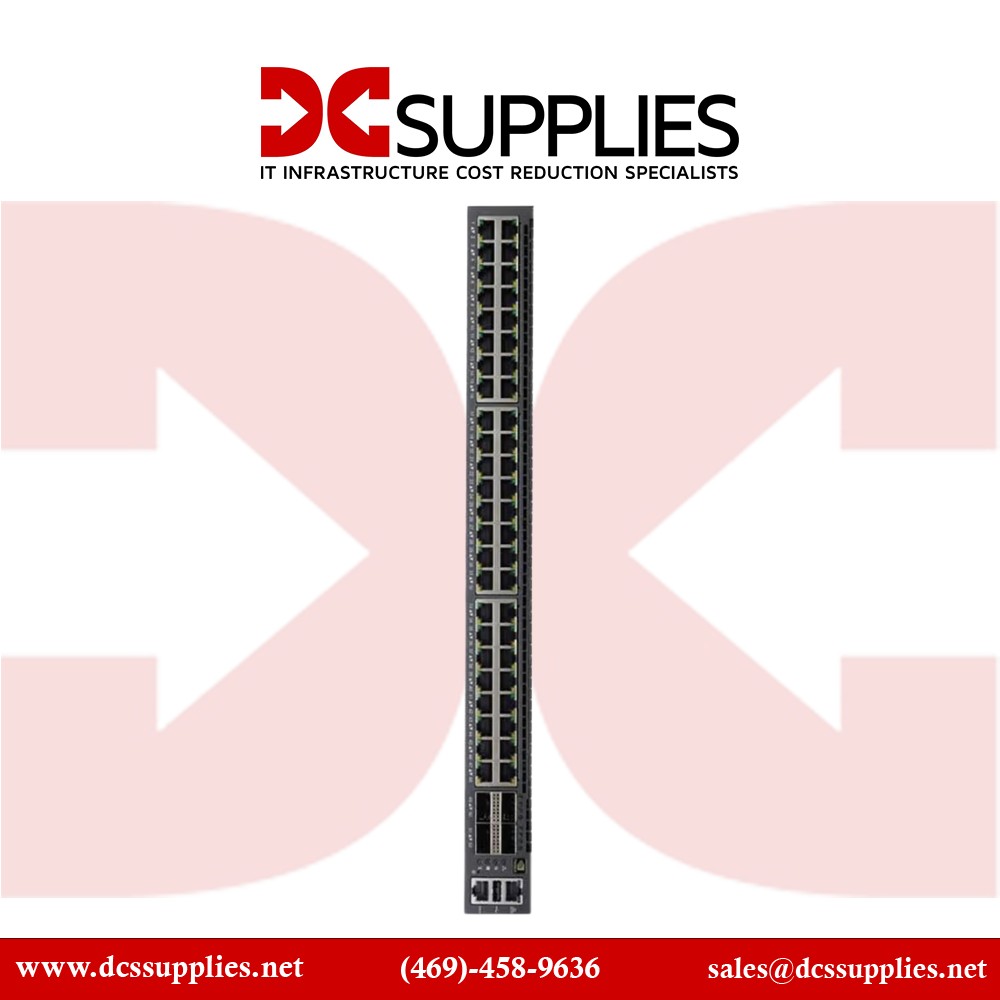

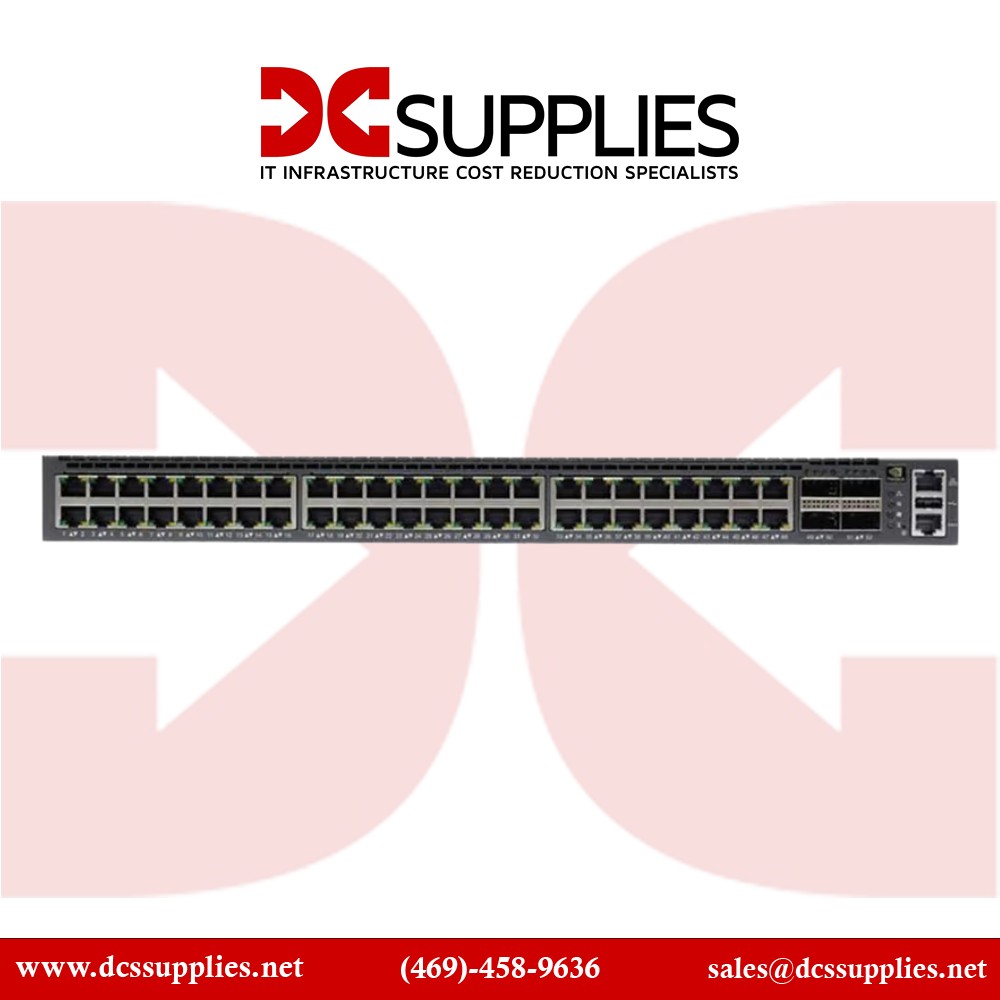

SN2201 52-Port Rack-Mountable Ethernet Switch

The MellanoxSN2201 (920-9N110-00F1-0C0) is a powerful 52-port rack-mountable Ethernet Switch tailored for next-generation enterprise and data center networks. Offering exceptional port density, wire-speed performance, and a compact form factor, it's the ideal core or aggregation switch for demanding networking infrastructures.

Features

Part of the NVIDIA MellanoxSpectrum family, the SN2201 provides 48 × 1/10/25GbE ports and 4 × 100GbE uplinks, delivering unmatched flexibility and performance in a 1U rack design. It is engineered for high-throughput environments such as enterprise backbones, Tier 1 service providers, and scale-out data centers.

Advanced Options

Running on the open and programmable MLNX-OS, the switch supports a comprehensive feature set including advanced Layer 2 and Layer 3 capabilities, traffic monitoring, automation interfaces, and secure management. Its efficient airflow and power design also contribute to lower TCO.

Product Key Features

• 52 high-performance Ethernet ports for dense connectivity

• Supports up to 1.3Tbps switching capacity

• Ideal for cloud, enterprise, and data center environments

• Advanced Layer 2/3 features for scalable networking

• Rack-mountable 1U chassis for space efficiency

• Designed for low-latency and high-throughput workloads

---

Reliability & Performance

Built with MellanoxSpectrum ASICs, the SN2201 offers non-blocking line-rate switching with ultra-low latency, essential for latency-sensitive workloads and real-time applications. Redundant hot-swappable power supplies and fans ensure consistent uptime, while its robust OS and telemetry features support rapid troubleshooting and automated network orchestration.

Key Features :

• 48 × 1/10/25GbE SFP28 ports

• 4 × 100GbE QSFP28 uplink ports

• Total switching capacity up to 1.3Tbps

• Advanced L2/L3 switching, QoS, VXLAN, ACLs

• Hot-swappable dual power supply units

• Redundant, front-to-rear airflow fans

• Rack-mountable 1U chassis

• Supports ONIE for open network installations

Specification	Details
Model Number	920-9N110-00F1-0C0
Series	MellanoxSN2201
Product Type	Layer 2/3 Managed Ethernet Switch
Port Configuration	48 × 1/10/25GbE SFP28 + 4 × 100GbE QSFP28
Switching Capacity	Up to 1.3Tbps
Forwarding Rate	~960 Mpps
Form Factor	1U Rack-Mountable
Power Supply	Dual hot-swappable (AC)
Cooling	Hot-swappable fans, front-to-rear airflow
Operating System	MLNX-OS (MellanoxOnyx or Cumulus Linux)
Layer Support	L2/L3, VXLAN, ECMP, QoS, ACLs
Dimensions	1.73" x 17.32" x 20.47" (44 x 440 x 520 mm)
Weight	Approx. 18.7 lbs (8.5 kg)
Compliance	RoHS, NEBS, UL, FCC
