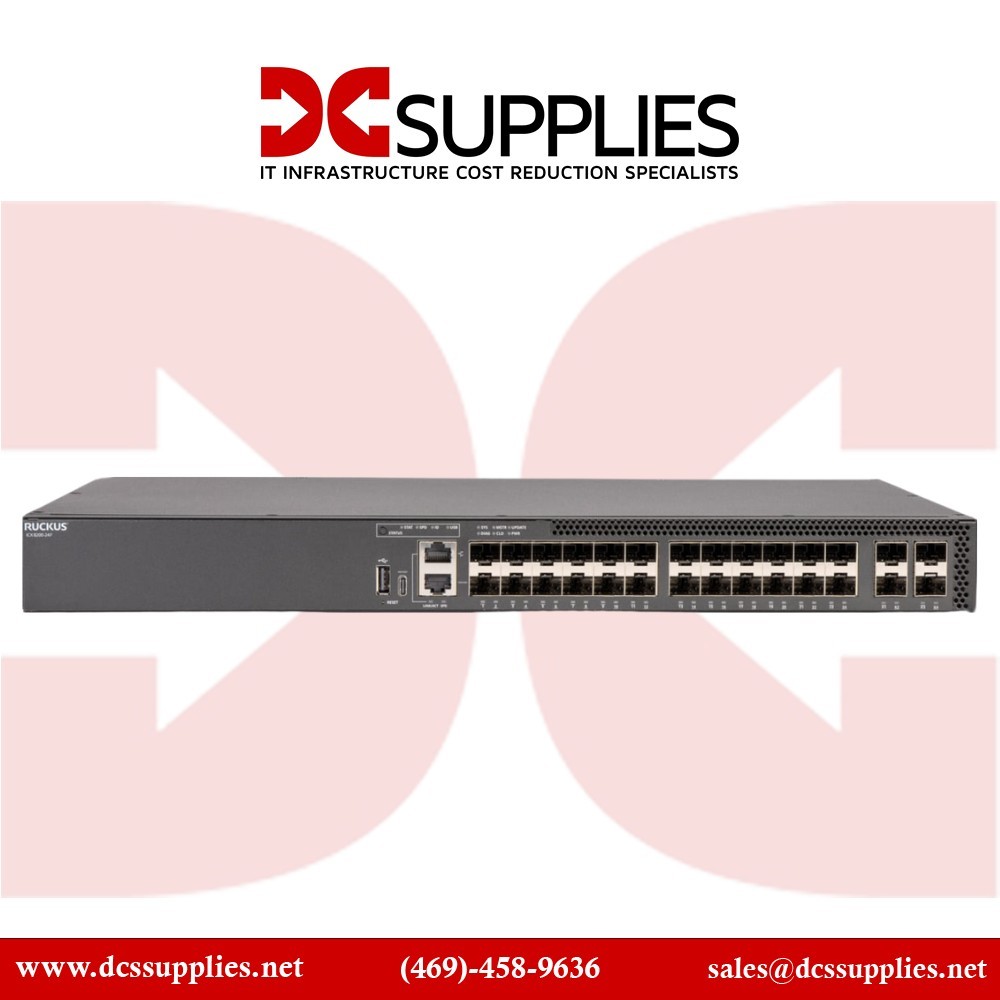

Ruckus ICX7150-24P-4X10GR 24-Port managed PoE+ Switch 4 x 10GbE Uplinks

Ruckus ICX7150-24P-4X10GR – 24-Port PoE+ Switch with 4 x 10GbE Uplinks

Overview :

The Ruckus ICX7150-24P-4X10GR is a managed Layer 3 stackable access switch designed for enterprise networks requiring high-density Power over Ethernet (PoE+) capabilities and high-speed uplink connectivity. Equipped with 24 Gigabit Ethernet PoE+ ports, it delivers up to 370W of power, supporting devices such as IP phones, wireless access points, and security cameras. The switch features four 10GbE SFP+ uplink ports, providing high-bandwidth connectivity for backbone connections or server aggregation. With a switching capacity of 132 Gbps and a forwarding rate of 98 million packets per second (Mpps), it ensures efficient data handling and low latency. The ICX7150-24P-4X10GR supports advanced Layer 3 features including OSPF, VRRP, PIM, and PBR, making it suitable for dynamic routing and resilient network designs. Its compact 1U rack-mountable form factor and fanless design contribute to silent operation, ideal for office environments. This switch is well-suited for branch offices, campus networks, and edge deployments requiring reliable power delivery and high-speed connectivity.

Key Features :

• 24 x 10/100/1000 Mbps PoE+ Ports: Delivers up to 370W of power for connected devices.

• 4 x 10GbE SFP+ Uplink Ports: High-speed uplinks for backbone connectivity.

• Layer 3 Features: Supports OSPF, VRRP, PIM, and PBR for advanced routing.

• High Switching Capacity: Offers 132 Gbps switching capacity for efficient data handling.

• Silent Operation: Fanless design ensures quiet operation in office environments.

Specifications
