Detailed Specifications

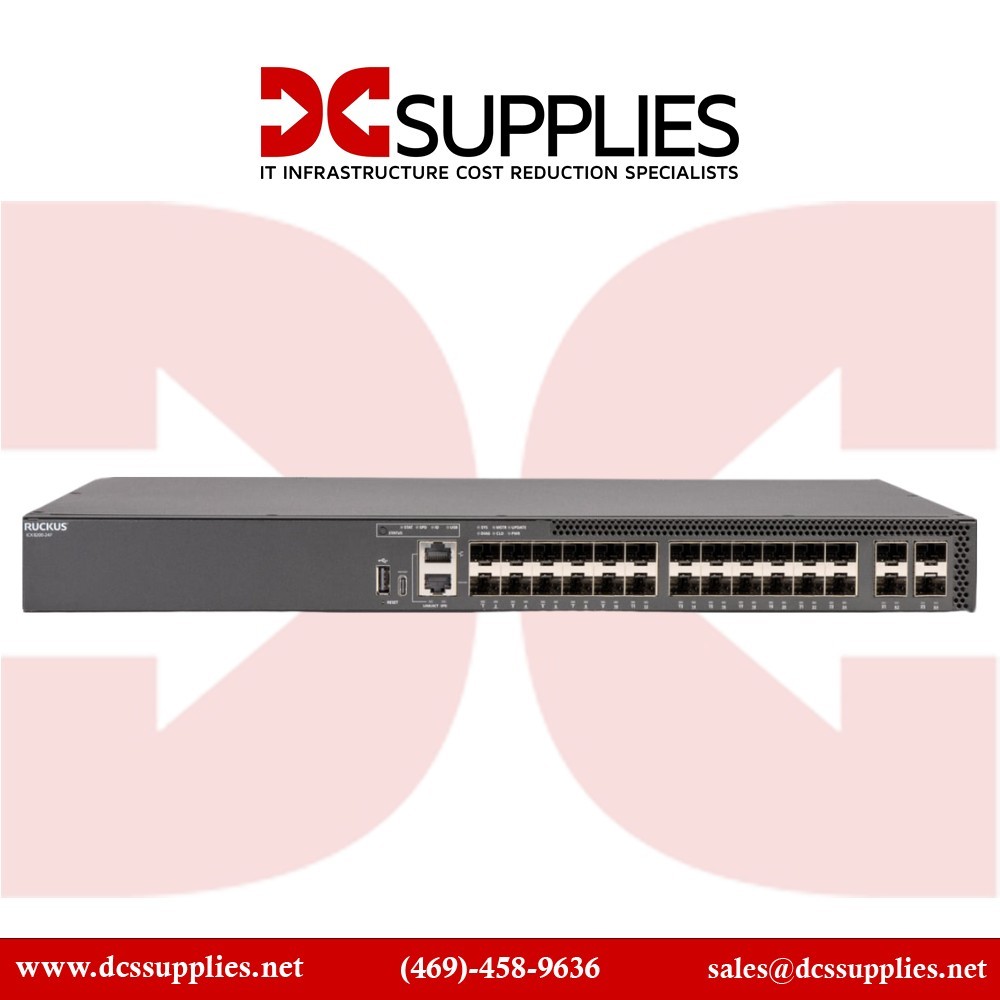

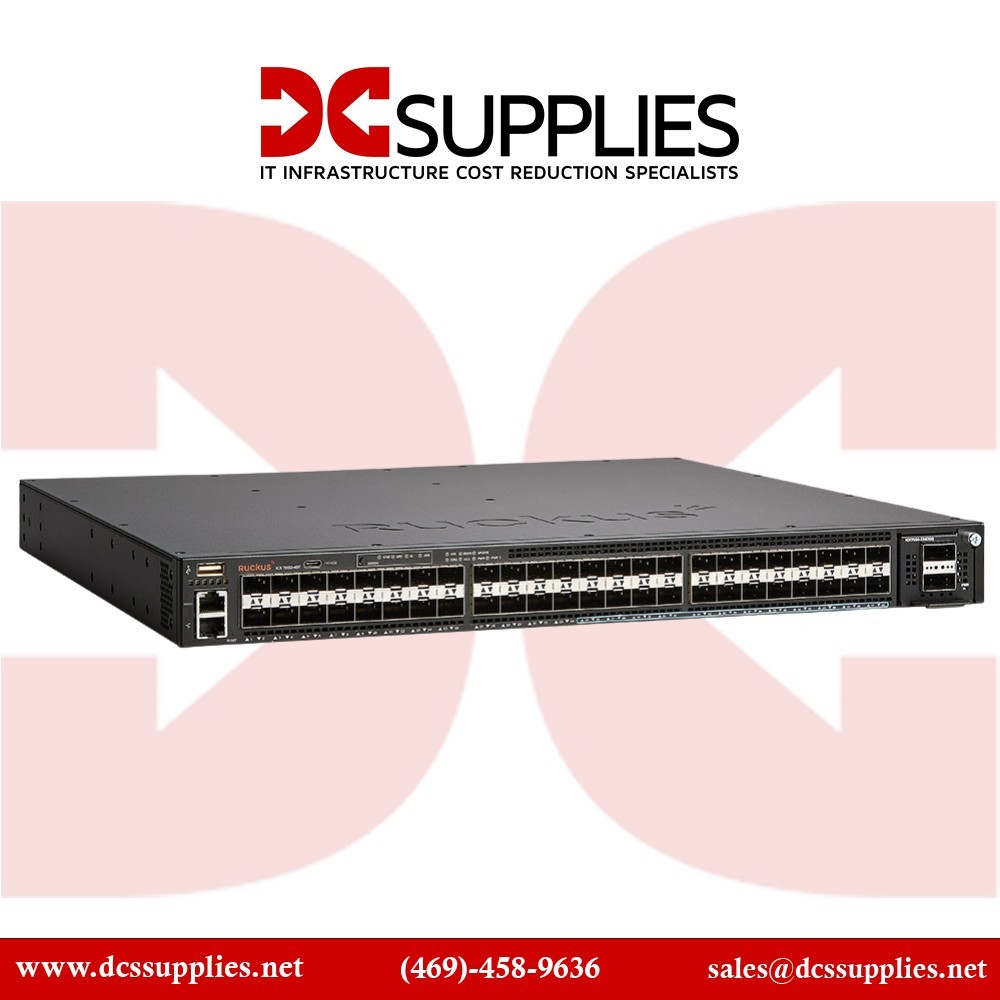

Ruckus ICX7650-48ZP-E – 48-Port Multigigabit PoE+ Switch with 40G QSFP+ Uplinks
Overview :
The Ruckus ICX7650-48ZP-E is a high-performance enterprise switch designed for high-density access and aggregation layers in campus networks. It features 48 ports, comprising 24 Multigigabit Ethernet ports (supporting 100M/1G/2.5G/5G/10G speeds) and 24 standard Gigabit Ethernet ports, all with Power over Ethernet Plus (PoE+) capabilities. This configuration allows for the deployment of power-hungry devices such as IP cameras, wireless access points, and VoIP phones without the need for separate power supplies. The switch also includes 4 QSFP+ ports for high-speed uplinks or stacking, providing flexible connectivity options. With a switching capacity of 1.128 Tbps and a forwarding rate of up to 839 million packets per second, it ensures efficient data handling for demanding applications. The ICX7650-48ZP-E is ideal for organizations seeking scalable, high-performance networking solutions that support next-generation wireless technologies and high-bandwidth applications.
Key Features :
48 ports: 24 Multigigabit and 24 Gigabit Ethernet
Supports IEEE 802.3bt PoE+ on all ports
4 x 40G QSFP+ uplink ports
Switching capacity of 1.128 Tbps
Forwarding rate of 839 Mpps
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7650-48ZP-E |
| Product Type | Multigigabit PoE+ Switch |
| Form Factor | 1U Rack-Mountable |
| Ports | 48 (24 Multigigabit, 24 Gigabit) |
| PoE Standard | IEEE 802.3bt PoE+ |
| Uplink Ports | 4 x 40G QSFP+ |
| Switching Capacity | 1.128 Tbps |
| Forwarding Rate | 839 Mpps |
| MAC Address Table Size | 80,000 entries |
| Stacking Capability | Yes |
| Cooling | Front-to-Back Airflow |
| Power Supply | Dual 1000W AC (optional) |
| Management | Fully Managed, Layer 3 |
| Dimensions (H x W x D) | 1.75 x 17.3 x 17.5 inches |
| Weight | 15.4 lbs |
