Detailed Specifications

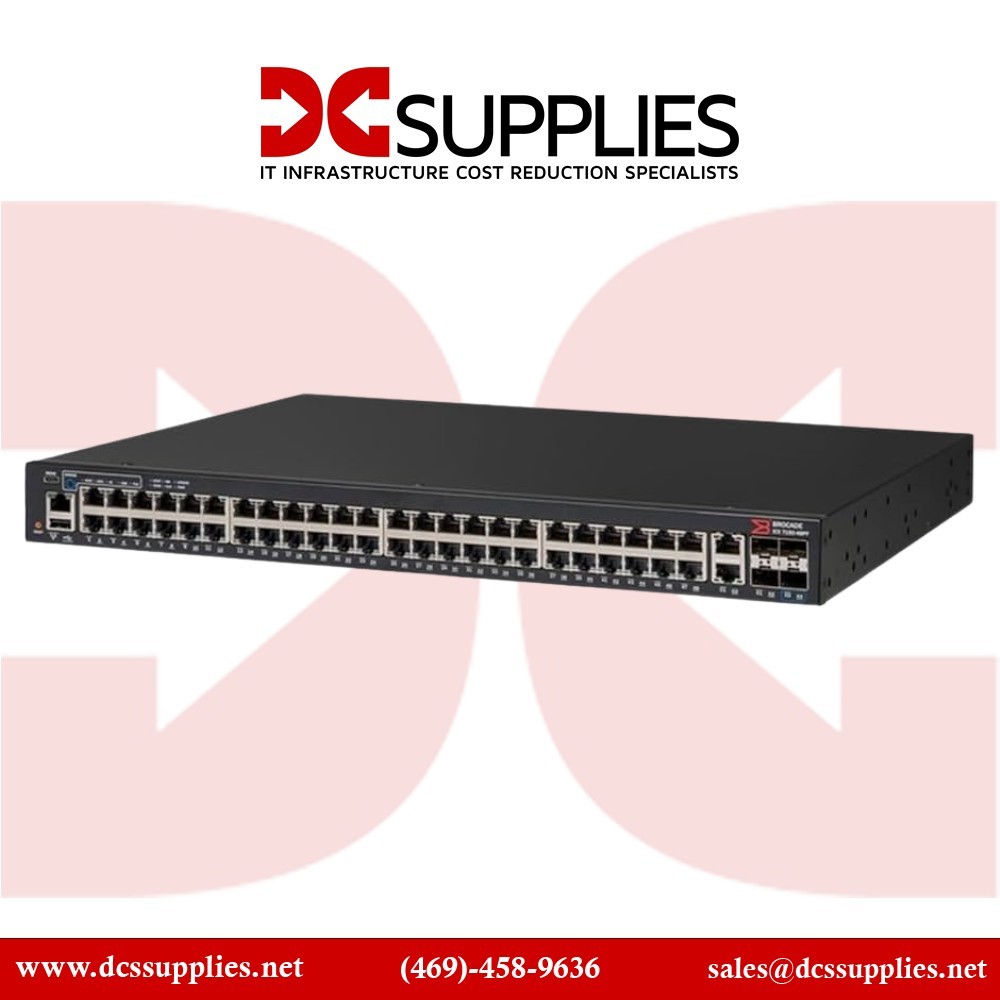

Ruckus ICX7650-48ZP – 48-Port MultiGigabit PoE+ Switch with 40G QSFP+ Uplinks
Overview :
The Ruckus ICX7650-48ZP is a high-performance access switch designed for enterprise networks requiring high-density PoE+ support and scalable uplink options. It features 48 ports, including 24 MultiGigabit Ethernet ports (100/1000/2500/5000/10000 Mbps) and 24 Gigabit Ethernet ports, all supporting Power over Ethernet Plus (PoE+). This switch is ideal for powering and connecting devices such as wireless access points, IP cameras, and VoIP phones. Equipped with 4x 40G QSFP+ uplink ports, the ICX7650-48ZP offers high-speed connectivity for backbone or aggregation layers, ensuring seamless data flow across the network. The switch also supports stacking capabilities, allowing multiple units to be managed as a single entity, simplifying network management and increasing redundancy. Designed for deployment in data centers, campus networks, and high-density environments, the ICX7650-48ZP provides a reliable and scalable solution to meet the growing demands of modern enterprise networks.
Key Features :
48 ports: 24 MultiGigabit and 24 Gigabit Ethernet
4x 40G QSFP+ uplink ports for high-speed connectivity
Supports Power over Ethernet Plus (PoE+) on all ports

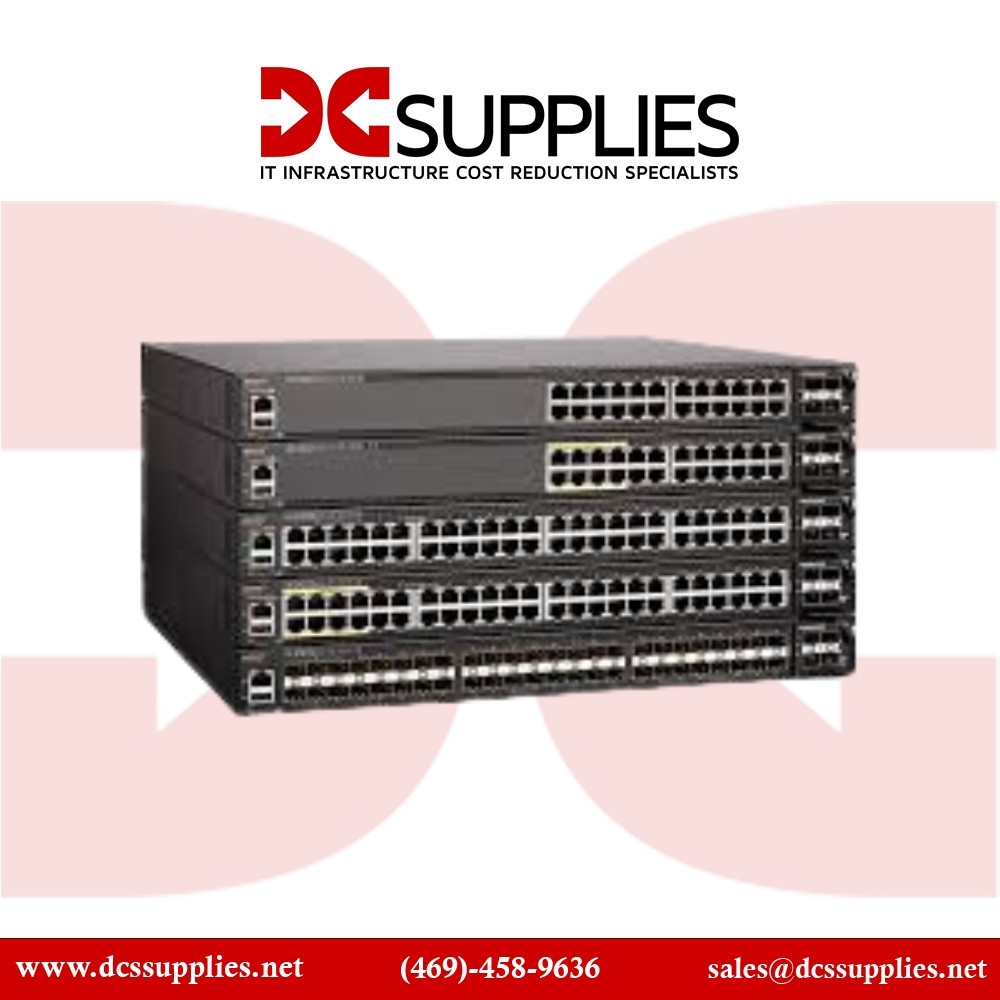

Stackable design for scalable network architecture
Advanced security and management features
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | ICX7650-48ZP |
| Product Type | 48-Port MultiGigabit PoE+ Switch with 40G QSFP+ Uplinks |
| Ports | 48 (24 MultiGigabit, 24 Gigabit) |
| Uplink Ports | 4x 40G QSFP+ |
| PoE Standard | IEEE 802.3at (PoE+) |
| PoE Power Budget | 1,500W (with dual power supplies) |
| Switching Capacity | 1,128 Gbps |
| Stacking Bandwidth | 2.4 Tbps |
| Management Ports | 1x Out-of-Band Management RJ45, 1x Serial Console RJ45, 1x USB Type-C, 1x USB Type-A |
| Cooling | Front-to-back airflow, fanless design |

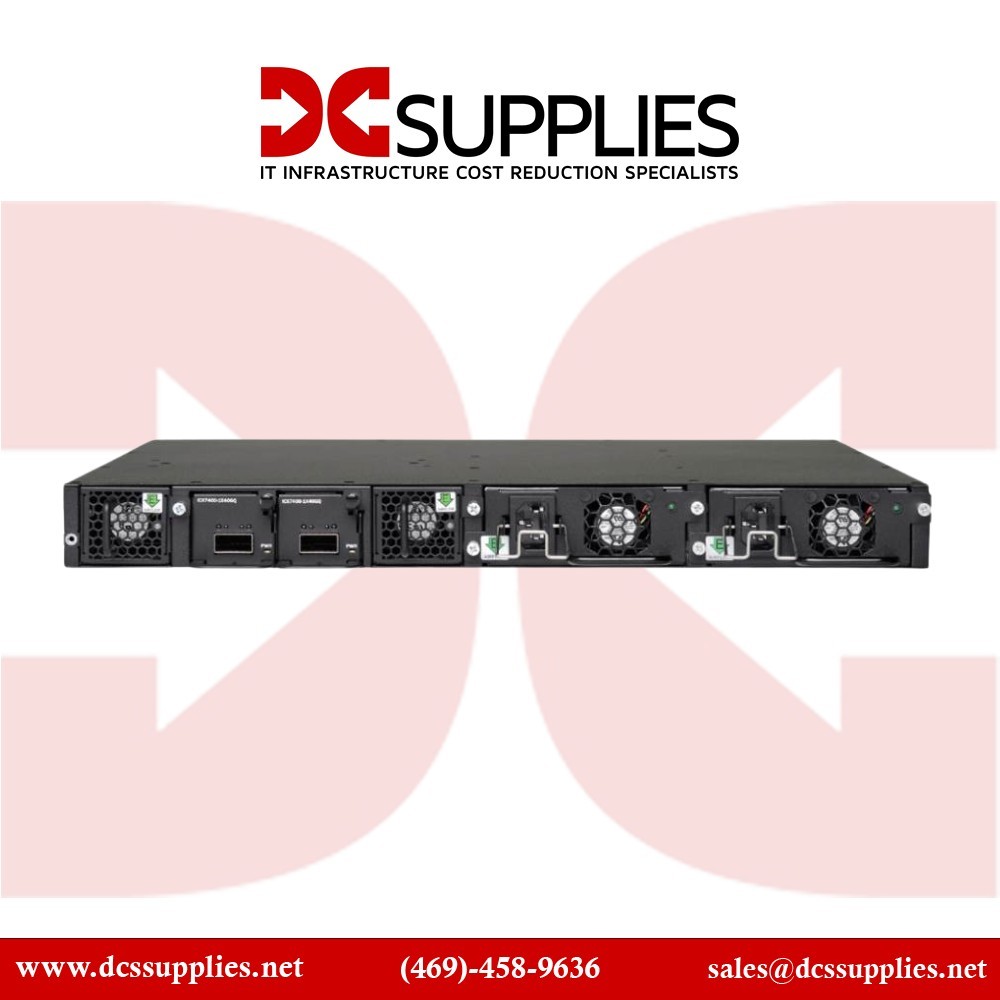

| Power Supply | Dual redundant AC power supplies (sold separately) |
| Mounting | 1U rackmount |
| Dimensions (H x W x D) | 1.75 x 17.3 x 16.9 inches |
| Weight | 11.5 lbs |
