Detailed Specifications

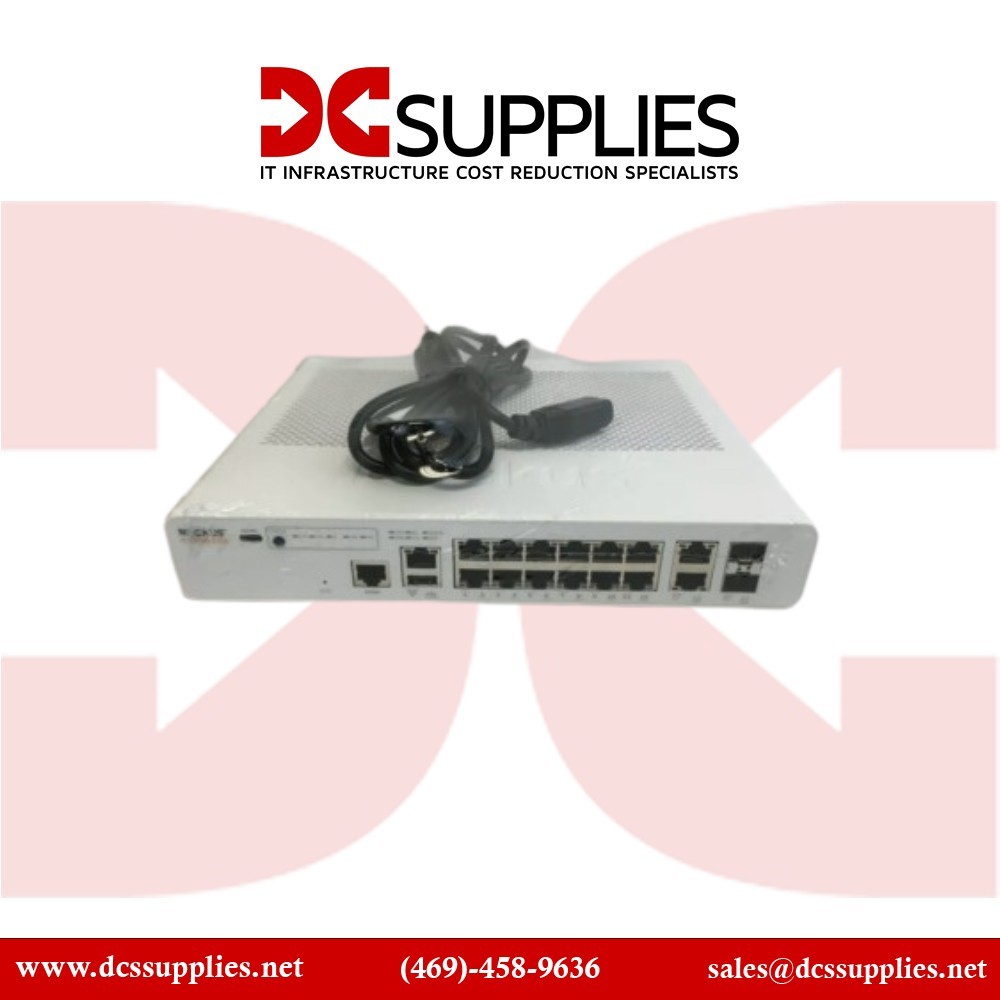

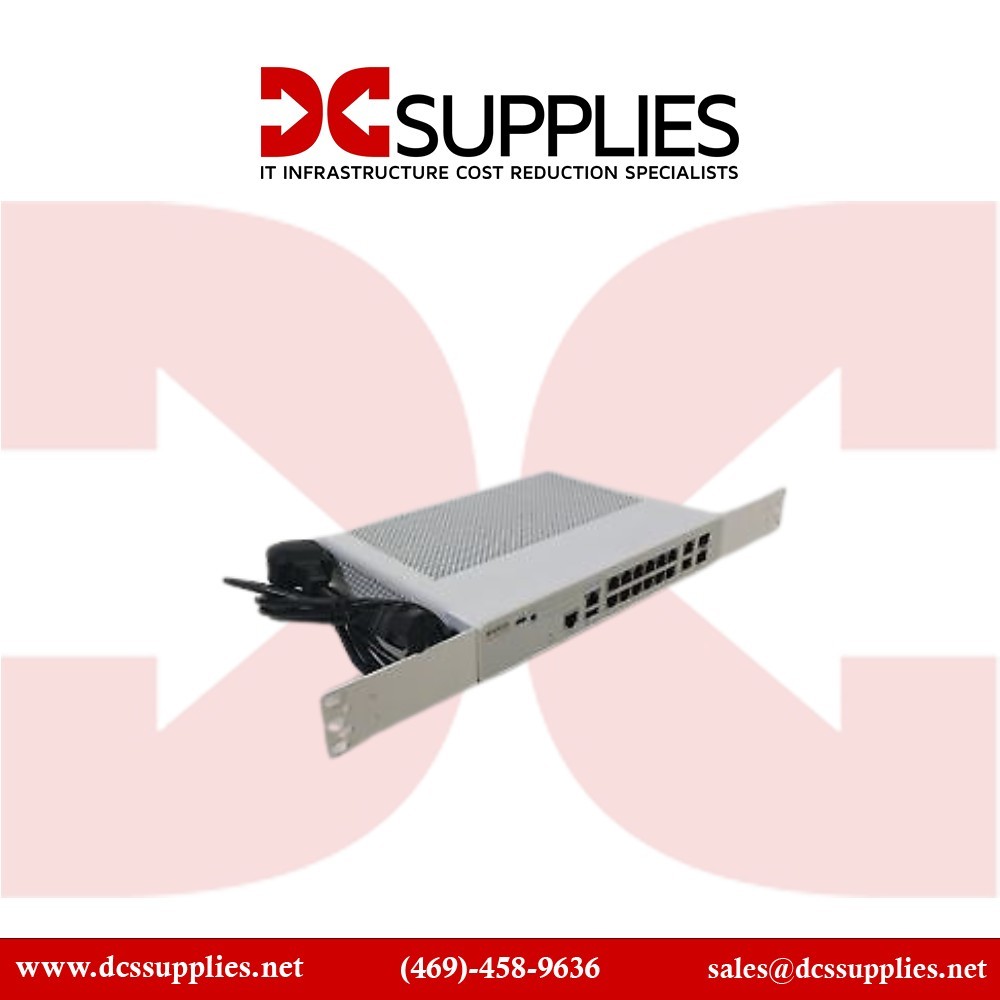

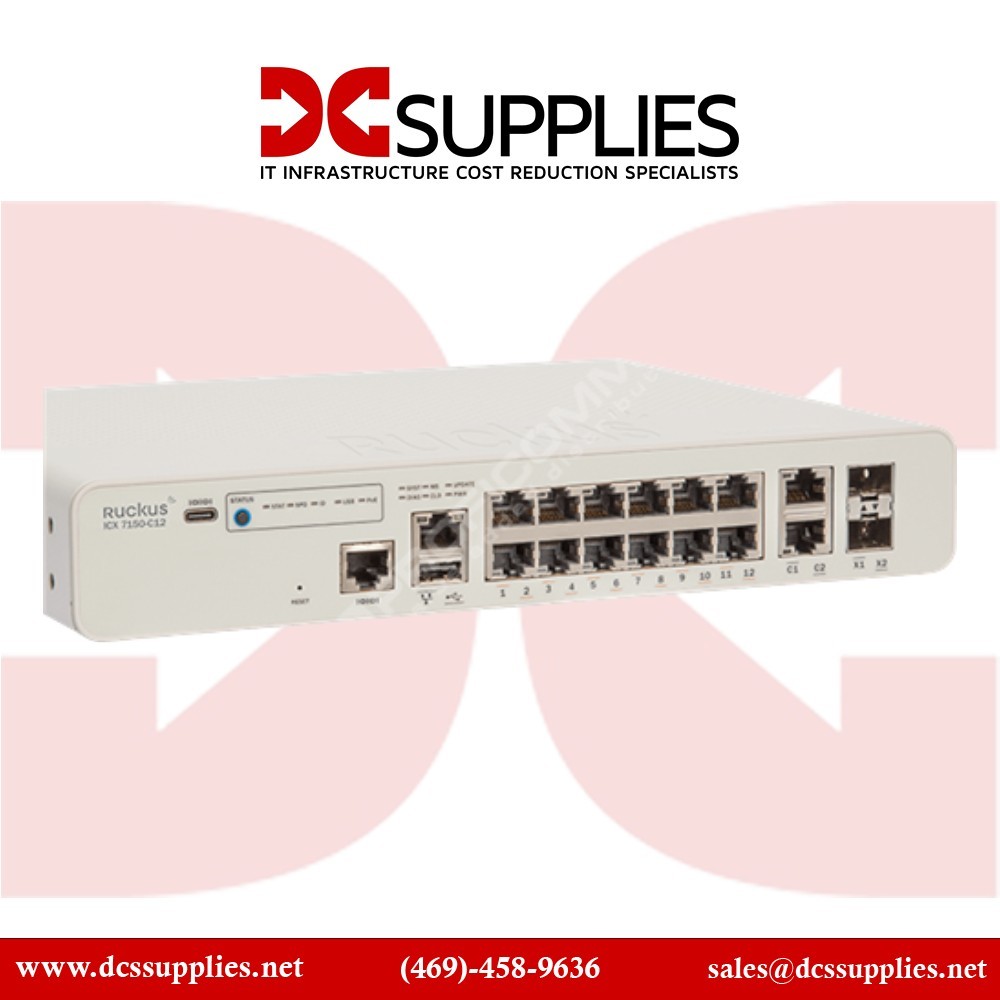

Ruckus ICX7150-C10ZP-2X10GR-RMT3 – Compact 10-Port Multigigabit PoE+ Switch
Overview :
The Ruckus ICX7150-C10ZP-2X10GR-RMT3 is a compact, fanless Layer 3 managed switch designed for high-performance networking in environments requiring silent operation. It features 10 ports, including 4 multigigabit PoE+ ports capable of delivering up to 90W per port, and 2 10G SFP+ uplink/stacking ports. With a total PoE budget of 240W, it supports power-hungry devices such as Ruckus R750 and R850 access points. The switch offers advanced Layer 3 features like OSPF, VRRP, PIM, and PBR, ensuring robust network performance and flexibility. Its fanless design makes it suitable for deployment in noise-sensitive environments like offices, classrooms, and retail spaces. The RMT3 model includes three years of remote support, providing peace of mind for IT administrators.
Key Features :
Multigigabit PoE+ Ports: 4 ports delivering up to 90W per port.
10G SFP+ Uplink Ports: 2 ports for high-speed stacking and uplink.
Fanless Design: Silent operation ideal for noise-sensitive environments.
Layer 3 Features: Supports OSPF, VRRP, PIM, and PBR for advanced routing.
Remote Support: Includes 3 years of remote support for reliable assistance.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7150-C10ZP-2X10GR-RMT3 |
| Product Type | Managed Switch |
| Ports | 10 (4 PoE+, 2 10G SFP+, 4 Multigigabit) |
| PoE Budget | 240W |
| PoE Standards | IEEE 802.3bt PoH, IEEE 802.3at PoE+ |
| Uplink Ports | 2 x 10G SFP+ |
| Stacking Ports | 2 x 10G SFP+ |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Fanless Design | Yes |
| Dimensions (H x W x D) | 1.70 x 11.96 x 11.00 inches |
| Weight | 7.87 lbs |
| Operating Temperature | 0°C to 40°C |
| Power Supply | Internal, AC input |
| Compliance | TAA Compliant |
| Warranty | 3 Years Remote Support |
