Detailed Specifications

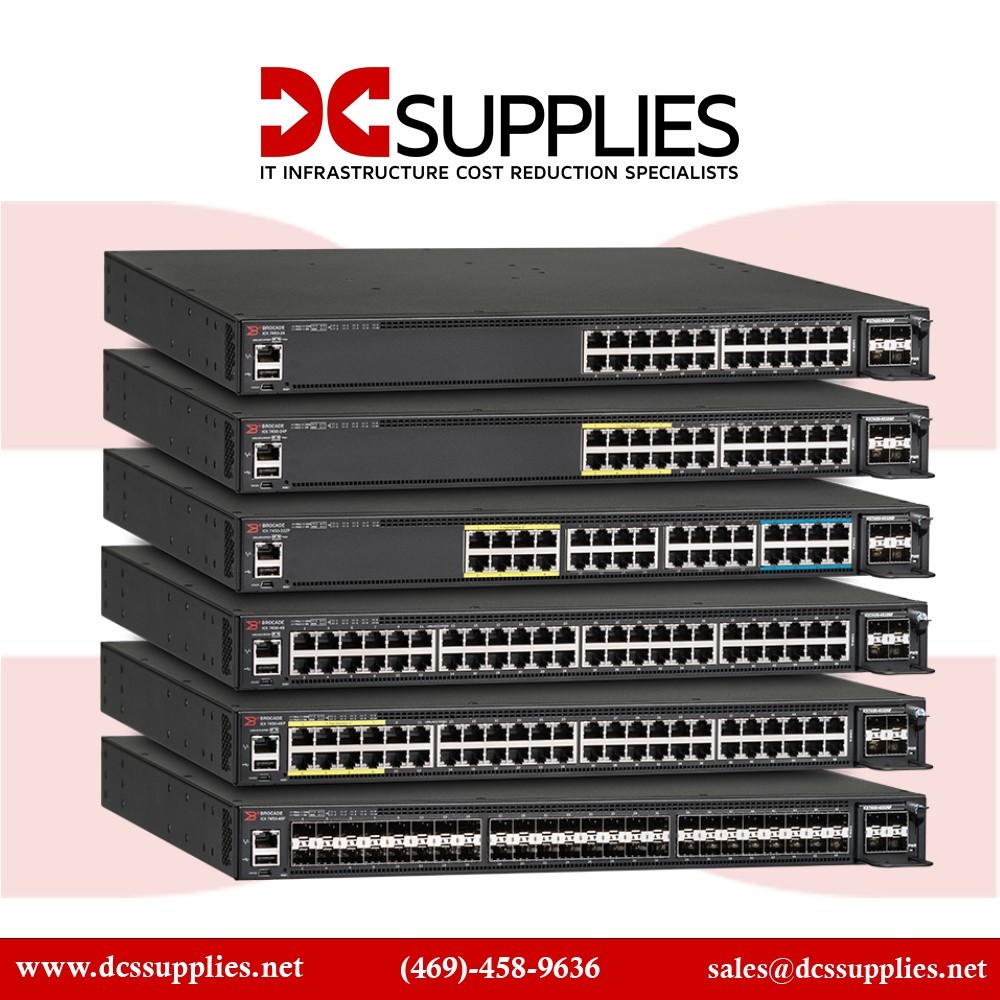

RUCKUS ICX7450-48P-E – 48-Port PoE Stackable L3 Access Switch
Overview
The RUCKUS ICX7450-48P-E is a 1 RU stackable Layer 3 switch offering 48 10/100/1000 Mbps RJ-45 ports with full PoE/PoE+ and PoH support, targeted at enterprise access deployments. It enables network engineers to power and connect access devices—such as IP cameras, Wi-Fi access points and thin clients—while supporting uplinks and stacking modules for 10 GbE or 40 GbE expansion. The switch fits into campus wiring closets, branch offices, or small aggregation roles where growth to higher uplink bandwidth is required. In stacked mode (up to 12 units), it serves as a flexible building-edge platform, and when paired with the RUCKUS management ecosystem it integrates into wired-wireless unified infrastructures.
Key Features
48 1 GbE RJ-45 access ports with PoE+ support
Supports full 1 000 W PoE budget (with dual PSUs) for PoH on dedicated ports
Three modular uplink/stack slots enabling 4×10 GbE SFP+ or 2×40 GbE QSFP+
Stackable up to 12 switches with standard QSFP+ links, delivering up to 960 Gbps backplane
Specification :
| Specification | Value |
|---|
| Brand | RUCKUS |
| Part Number | ICX7450-48P-E |
| Product Type | Fixed stackable access switch |
| Switching Capacity | 336 Gb/s |
| 1 GbE RJ-45 ports (max) | 48 |
| 10 GbE SFP+ ports (max) | 12 |
| 40 GbE QSFP+ ports (max) | 3 |
| Max switches per stack | 12 |
| Aggregate stack bandwidth | 960 Gb/s |
| PoE / PoE+ / PoH support | Yes (PoH: 90 W on 8 ports) |
| PoE power budget (2 PSU) | 1 500 W |
| Dimensions (H × W × D) | 1.72 in × 17.32 in × 15.50 in |
| Weight | 15.87 lbs |
| Operating temperature | -5 °C to 50 °C (23 °F to 122 °F) |
