Detailed Specifications

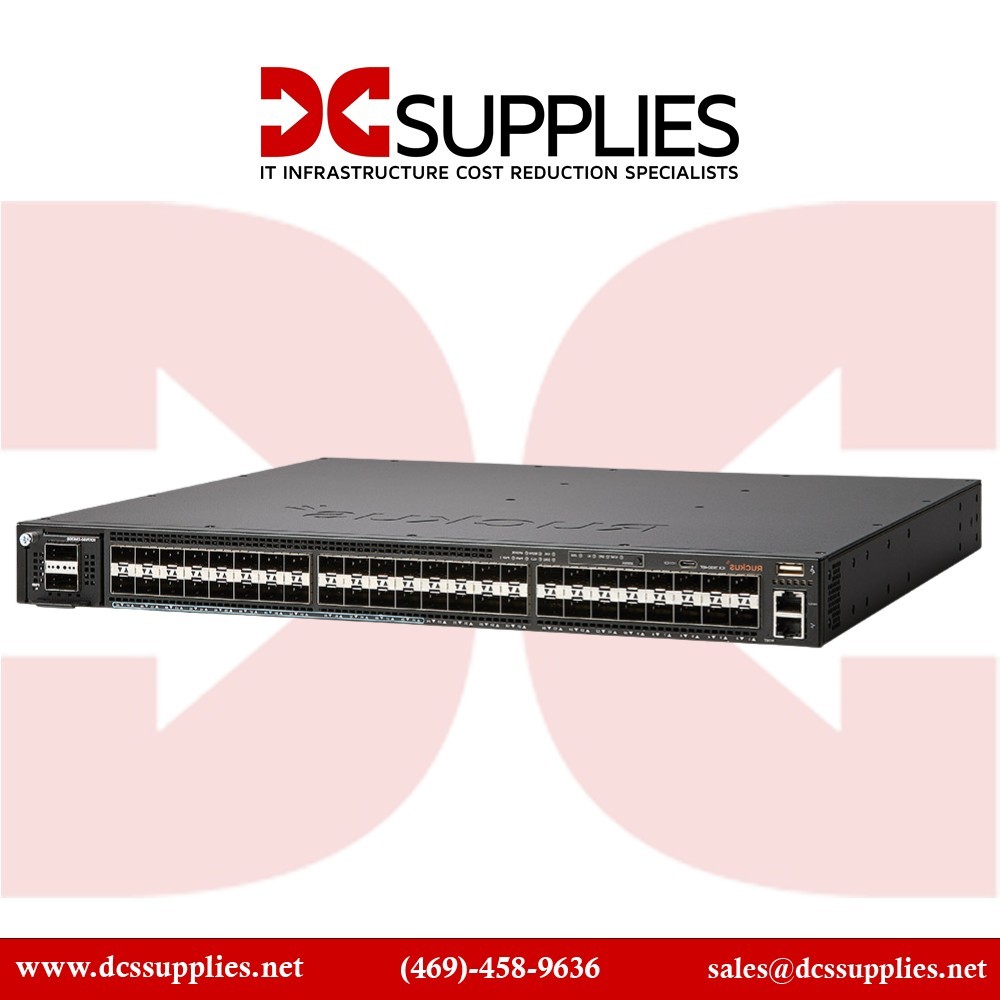

RUCKUS ICX7550-48F-E2-R3 – 48-Port Fiber/10Gb Uplink Switch
Overview :
The RUCKUS ICX7550-48F-E2-R3 is a 48-port fiber-centric fixed switch suitable for aggregation or high-density access in enterprise and campus networks. It supports up to 36 SFP ports for 100/1000 Mbps fiber links plus 12 SFP+ ports for 1/10 Gb connectivity, and dual-mode QSFP/ QSFP28 uplink/stacking capability. The device can participate in a stack of up to 12 switches with aggregate stack bandwidth up to 2.4 Tb/s, delivering L2 and full L3 services including RIP, OSPF and BGP. It supports full redundancy with dual load-sharing power supplies and hot-swappable fans, and offers both front-to-back or back-to-front airflow. Deployment scenarios include campus distribution, edge aggregation, and fiber-to-the-room access where high port-density and uplink bandwidth are required.
Key Features :
48 fiber/SFP downlink ports for large-scale fiber access
12 SFP+ ports providing 1/10 Gb uplink or server connectivity
Two 40/100 Gb QSFP/ QSFP28 stacking/uplink slots for high throughput
Supports stacking up to 12 units and 2.4 Tb/s stack bandwidth
Dual redundant power supplies and hot-swappable fan modules
Specification :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7550-48F-E2-R3 |
| Product Type | 48-port fiber aggregation/stackable Layer-3 switch |
| Switching Capacity | 912 Gbps |
| Stack Bandwidth | 2.4 Tbps |
| Maximum Stack Members | 12 |
| Fixed Downlink Ports | 36 × 1/10 Gb SFP + 12 × 1/10 Gb SFP+ |
| Uplink/Stack Ports | 2 × 40/100 Gb QSFP+ |
| Routing Protocols | RIP-1/2, OSPF, BGP, static IPv4/IPv6 |
| Dimensions (W×D×H) | 17.3 in × 16 in × 1.7 in |
| Weight | 14.15 lbs |
| Redundant Power | Yes, dual hot-swappable AC |
| Airflow Options | Front-to-back or back-to-front |
| Layer Supported | Up to Layer 3 |
| MACsec Support | Yes, 128-bit/256-bit |
