Detailed Specifications

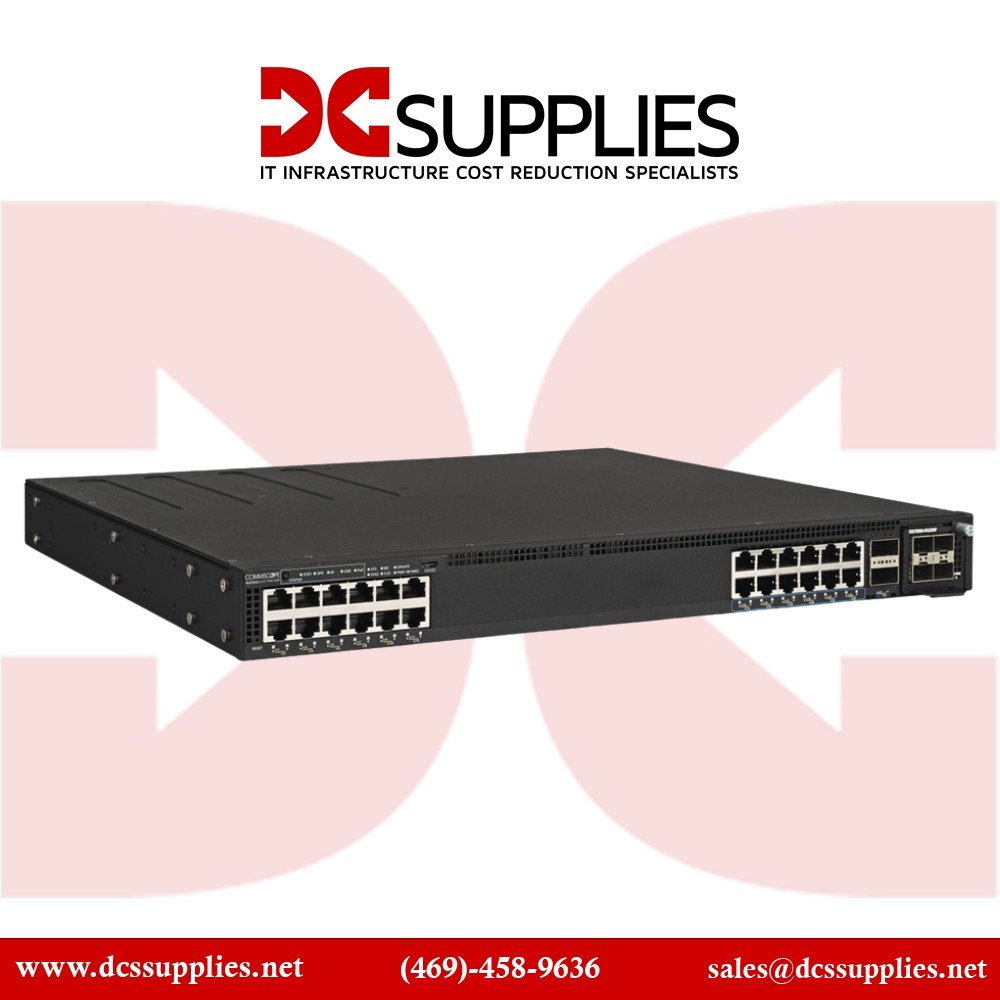

RUCKUS ICX7550-24ZP – Multigig PoE++ Access Switch
Overview :
The RUCKUS ICX7550-24ZP is a 24-port stackable access-layer switch designed for high-density enterprise and campus network environments. It targets deployment in Wi-Fi 6/6E and next-generation multigigabit wired segments, delivering up to 90 W of 802.3bt PoE++ per port and a total PoE budget of up to 2,000 W. Its port mix includes 12 × 1 / 2.5 GbE RJ-45 and 12 × 1 / 2.5 / 5/ 10 GbE RJ-45, plus dual-mode uplink/stacking QSFP+ ports supporting 40 / 100 GbE. The unit supports advanced Layer 2/3 features including BGP, OSPF, VRF and MACsec encryption, enabling it to serve both wired edge and aggregation roles. With stacking support for up to 12 units and aggregate stack bandwidth of 2.4 Tbps, it fits in environments such as branch campuses, high-density Wi-Fi deployments, and converged access deployments where power, speed and scalability are required.
Key Features :
24 ports, mix of multigigabit (2.5-10 GbE) RJ-45 access.
802.3bt PoE++ support, up to 90 W per port, 2,000 W budget.
Dual 40/100 GbE QSFP+ uplink/stacking ports for high aggregation.
Full Layer 3 feature set including BGP, OSPF, VRF, MACsec.
Stackable up to 12 units with long-distance stacking and hot-swappable modules.
Specification :
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | ICX7550-24ZP |
| Product Type | Multi-Gigabit PoE++ Access Switch |
| Switching Capacity | 700 Gb/s |
| RJ-45 Ports (1 GbE) | 24 |
| RJ-45 Ports (1/2.5 GbE) | 12 |
| RJ-45 Ports (1/2.5/5/10 GbE) | 12 |
| SFP Ports (1 GbE) | 4 |
| SFP+ Ports (10 GbE) | 4 |
| QSFP/ QSFP28 Ports | Up to 2 × 100 Gbps / Up to 4 × 40 Gbps |
| Maximum PoE Budget | 2000 W |
| PoE Standard | IEEE 802.3bt (up to 90 W/port) |
| Stackable Units | Up to 12 |
| Aggregate Stack Bandwidth | 2400 Gb/s |
| Dimensions (H × W × D) | 1.7 in × 17.32 in × 16.00 in |
| Weight | 15.39 lbs |
