Detailed Specifications

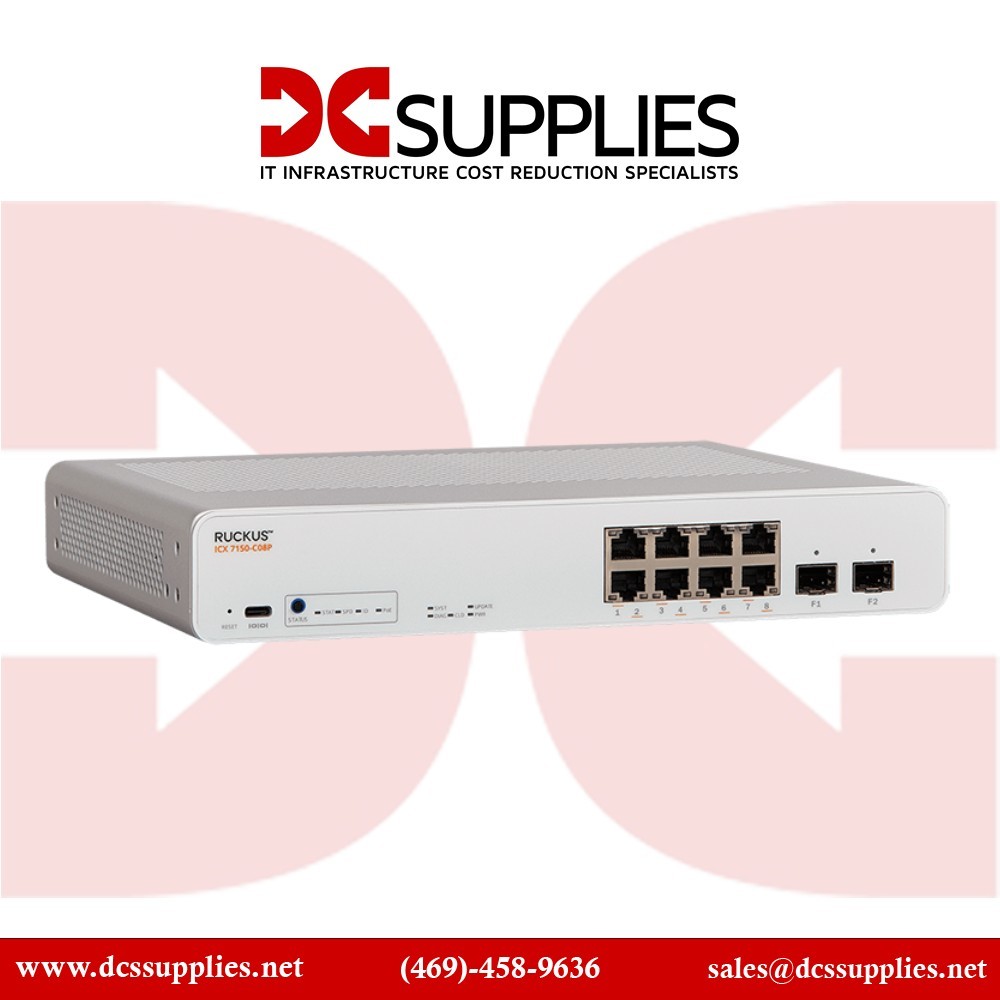

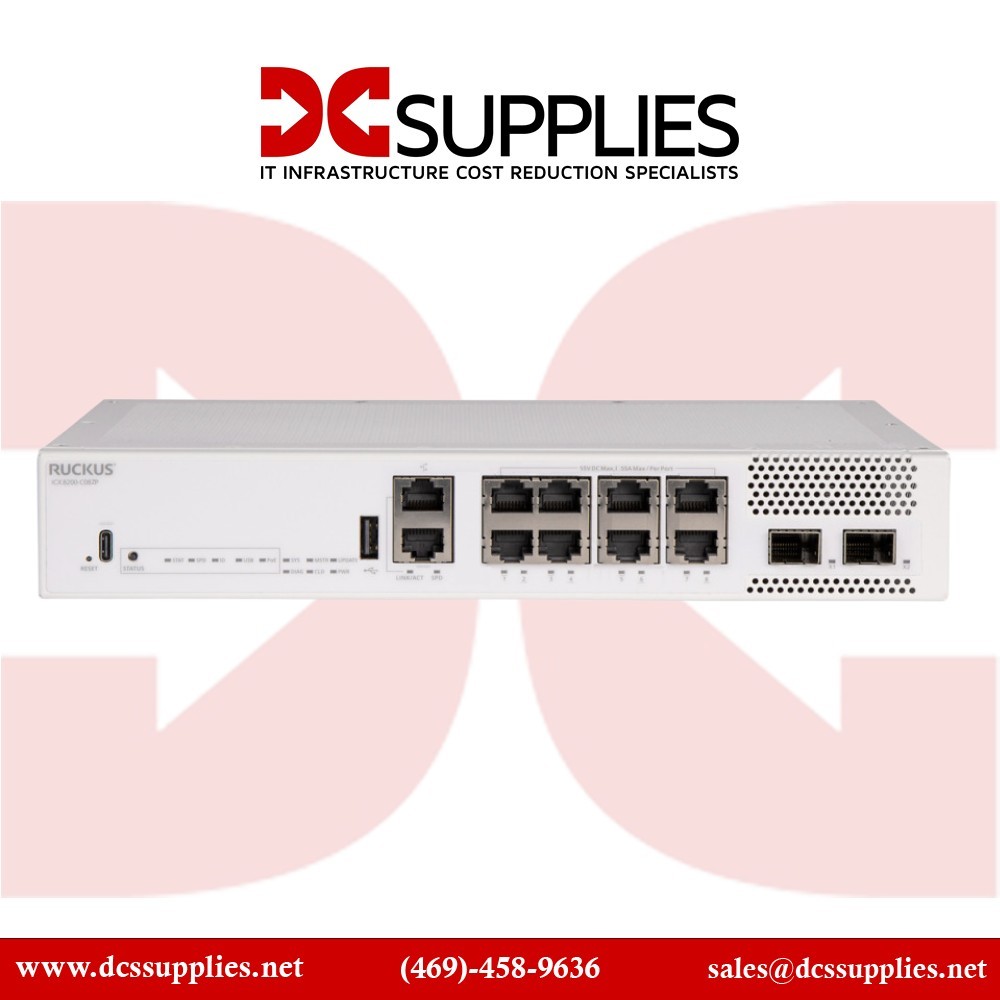

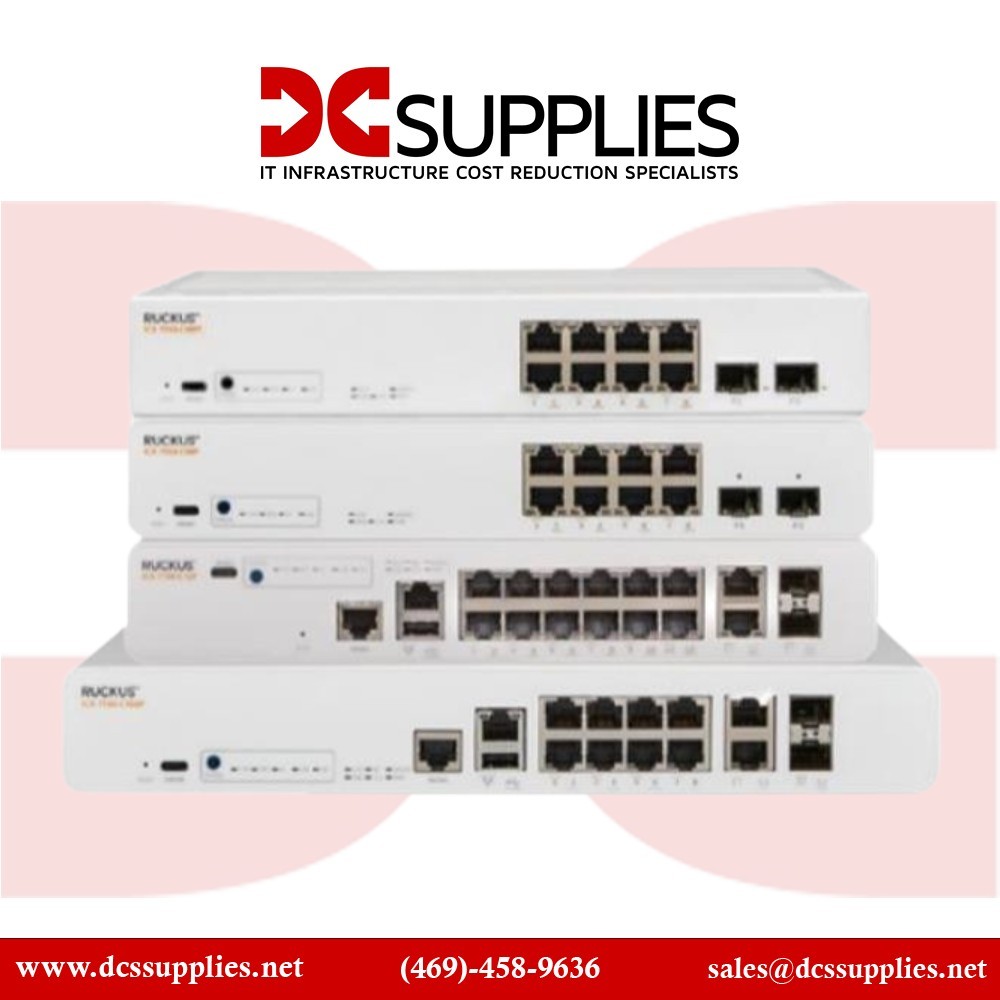

RUCKUS ICX7150-C10ZP-2X10GR – Compact 12 Port Multigigabit PoE+ Switch
Overview :
The RUCKUS ICX7150-C10ZP-2X10GR is a compact, stackable access switch designed for environments where high-speed copper interconnects, PoE+ and multigigabit support are required but space is constrained. It offers a form-factor with 12 user-accessible ports (combining multigig RJ-45 and 10Gb SFP+ uplinks) to power and connect next-generation devices such as WiFi 6/6E access points, IP cameras and IoT endpoints. The unit supports up to 240 W total PoE budget, with ports capable of PoH/802.3bt level power delivery (up to ~90 W on select ports), enabling more demanding powered devices. It supports stacking of up to 12 units with aggregate stack bandwidth reaching 240 Gb/s, and integrates full Layer 3 features (OSPF, VRRP, PIM, PBR) in a fanless design for quiet deployments. Ideal for wiring-closet, retail, hospitality or enterprise edge environments where multigig performance and PoE+ budget matter.
Key Features :
Multigig RJ-45 ports supporting 2.5/5/10 Gb/s traffic
Select ports deliver up to ~90 W PoH/802.3bt power
Two 10 Gb SFP+ ports for uplink or stacking
Stack of up to 12 units, up to 240 Gb/s aggregate bandwidth
Fanless compact design suitable for noise-sensitive deployments
Specifications
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | ICX7150-C10ZP-2X10GR |
| Product Type | Compact Multigig PoE+ Access Switch |
| RJ-45 Downlink Ports | 12 (2×2.5/5/10 Gb + 2×2.5 Gb + 6×2.5 Gb) |
| Uplink/Stacking Ports | 2 × 10 Gb SFP+ |
| Switching Capacity | 120 Gb/s |
| PoE/PoH Budget | 240 W total |
| Max PoH Power per Port | Up to ~90 W |
| Stackable Units | Up to 12 |
| Aggregate Stack Bandwidth | 240 Gb/s |
| Dimensions (H × W × D) | 1.7 in × 12 in × 12 in |
| Weight | 7.87 lbs |
| Fan/Noise Design | Fanless |
| Layer 3 Features | Static Routing, OSPF, VRRP, PIM, PBR |
| Operating Temperature | 0 °C to 45 °C |
| Power Input | 100-240 V AC |
