Detailed Specifications
IBM 95P4436 800/1600GB LTO Ultrium 4 Data Cartridge
Overview:

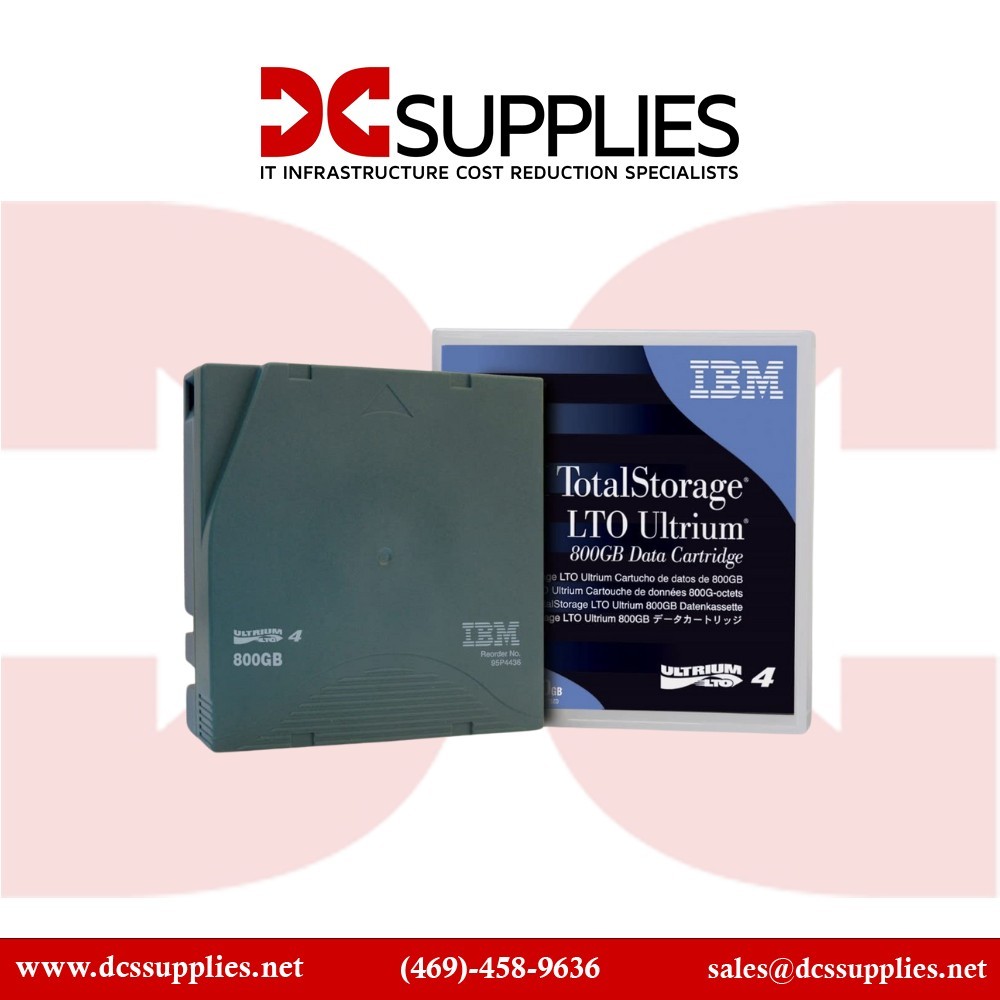

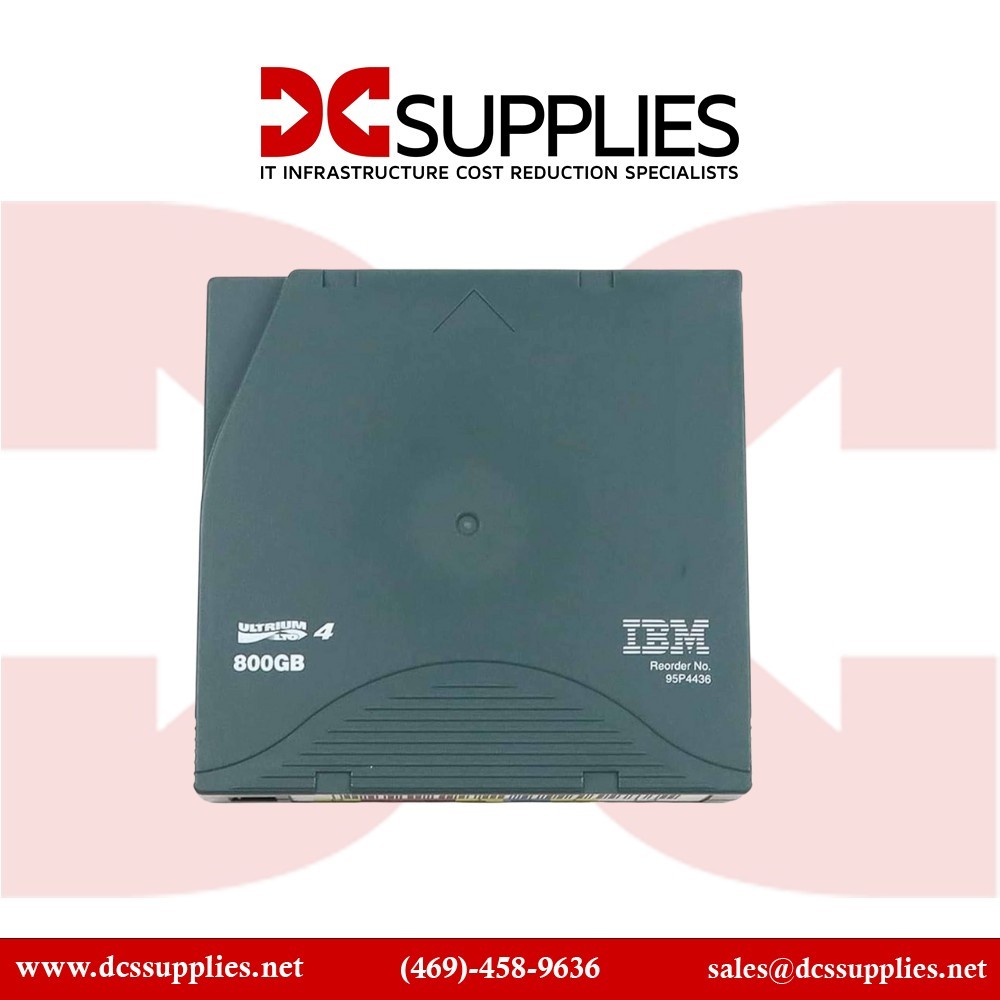

IBM 95P4436 LTO Ultrium 4 800 GB Data Cartridge
The 95P4436 LTO Ultrium 4 Data Cartridge from IBM is a tape cartridge for the LTO Ultrium Generation 4 storage environments. It provides 800GB storage physical capacity (1.6TB with 2:1 compression). Data that is encrypted by LTO 95P4436 Ultrium 4 drivers can be stored on this media to securely maintain data integrity. Higher capacity per volume requires less library cartridge capacity and helps reduce backup windows by requiring less volume mounts. This cartridge is designed to help improve read/write reliability by storing IBM's statistical media read/write analysis on every use of the cartridge when used with IBM LTO tape drives, and to adhere to widely supported Linear Tape-Open (LTO) Ultrium design specifications.
Specifications:
Quantity |
1 Cartridge |
Media Type |
LTO-4 |
Capacity |
800 GB (1.6 TB Compressed) |
Compression Rate |
2:1 |
Rewritable |
Yes |
Tape Length |
2690' / 820 m |
Tape Thickness |
6.6 µm |
Magnetic Coercivity |
2710 Oe |
Material |
Metal Particle |
WORM Support |
Yes |
Operating Temperature |
50 to 113°F / 10 to 45°C |
Operating Humidity |
10 to 80% |
Storage Temperature |
61 to 95°F / 16 to 35°C |
Storage Humidity |
20 to 80% |
Archive Temperature |
61 to 77°F / 16 to 25°C |
Archive Humidity |
20 to 50% |
Dimensions (W x H x D) |
4.2 x 4 x 0.9" / 101.6 x 106.7 x 22.9 mm |
Weight |
0.4 lb / 0.2 kg |
Packaging Info 95P4436
Package Weight |
0.55 lb |
Box Dimensions (LxWxH) |
4.5 x 4.3 x 1.1" |
