Detailed Specifications

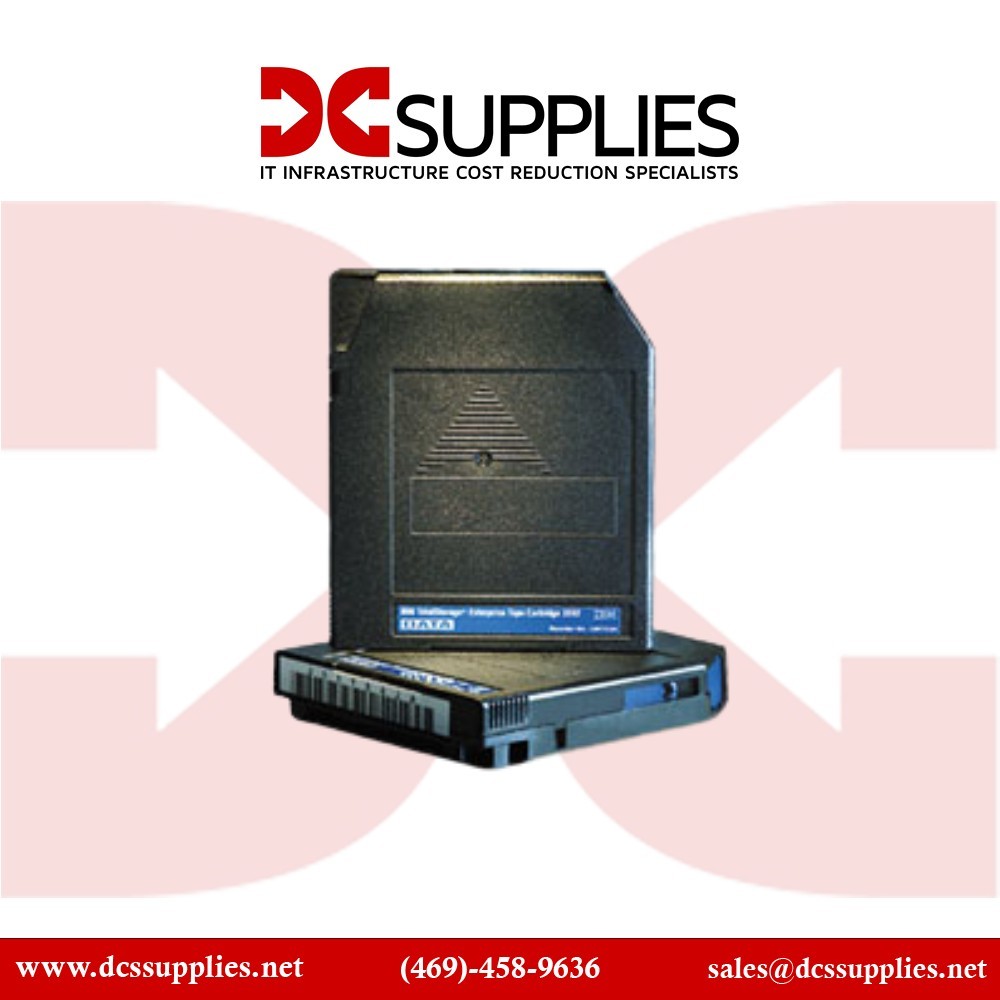

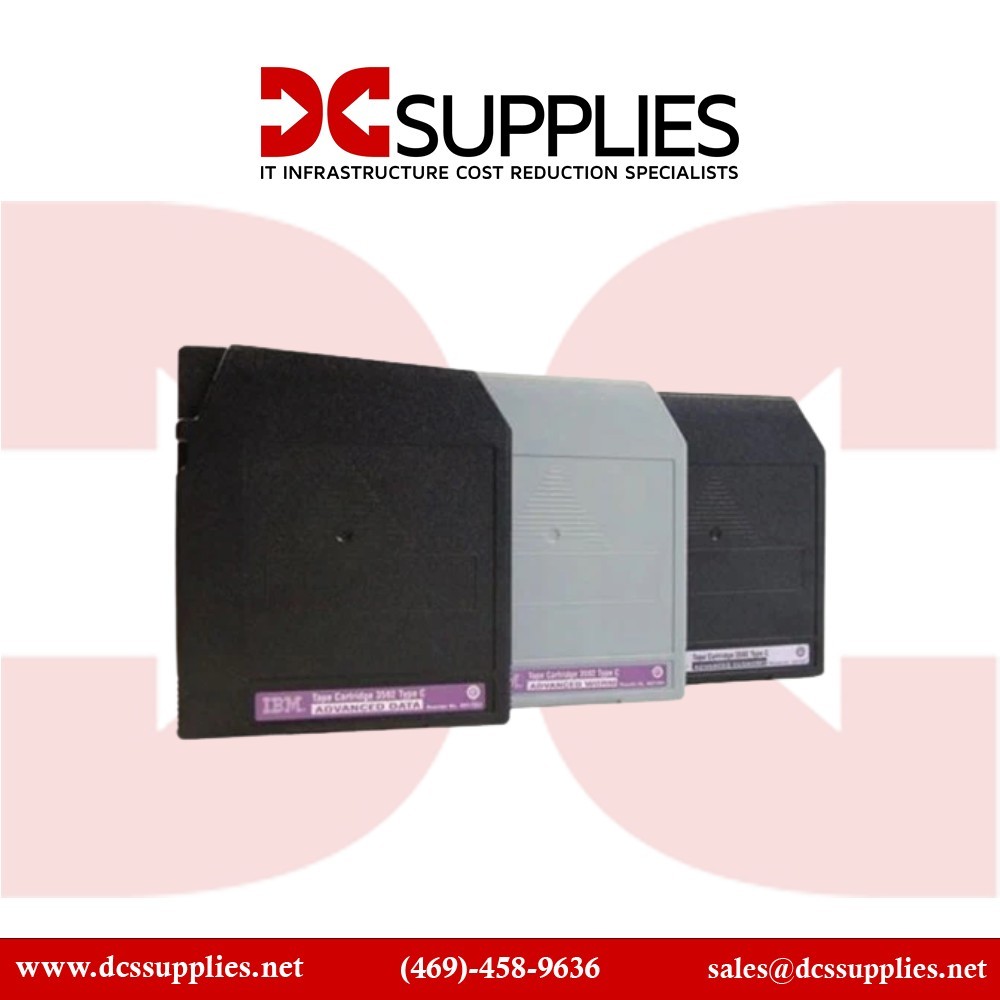

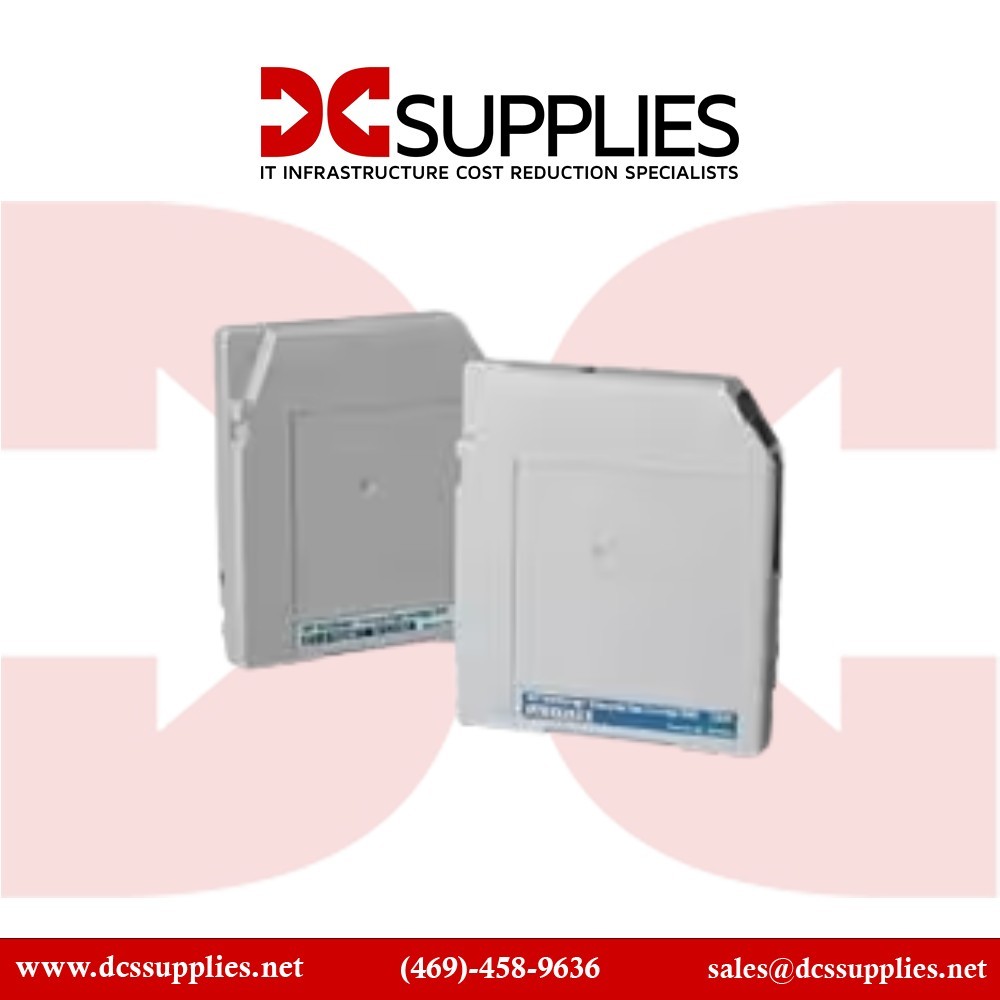

IBM 18P7538 TotalStorage 3592 WORM Tape Cartridge
Overview :
The IBM TotalStorage Enterprise Tape Drive 3592 is designed to provide fast time to data and excellent levels of storage capacity. To support that high-capacity capability, the tape drive uses the IBM TotalStorage Enterprise Tape Cartridge 3592.
The 3592 cartridge contains half-inch, advanced metal particle, dual-layer tape. This tape uses a high-quality coating that provides the signal and aerial density margin to store an extremely high capacity of data - up to 300GB (up to 900GB with 3: 1 compression), greatly exceeding the capacity available from most other tape media. The tape also features an ultra-smooth surface and uniform magnetic layer less than 0.2 microns thick - both intended to help improve media reliability and tape drive processing times.
Because normal wear and tear can degrade media, the 3592 cartridge offers significant improvements in tape cartridge design - such as enhanced locking pin, hub and clutch assemblies - to help improve durability.
The cartridge also minimizes surface defects and uses a precision timing - based servo formatting process to enable higher track densities without increasing error rates. With these design features, the 3592 tape cartridge can help better protect your mission-critical data.
Specifications :
| Category | Specification |
|---|
| Overview |
|
| Product Name |
IBM TotalStorage 3592 WORM Tape Cartridge |
| Description |
High-capacity data cartridge designed for IBM TotalStorage Enterprise Tape Drives |
| Designed For |
IBM TotalStorage Enterprise Tape Drives |
| Tape Technology |
Half-inch, advanced metal particle, dual-layer tape |
| Data Capacity |
Native: 300 GB, Compressed: Up to 900 GB (with 3:1 compression) |
| Tape Length |
2001.31 ft |
| Media Formats |
WORM (Write Once Read Many) |
| Physical Characteristics |
|
| Cartridge Type |
Data Cartridge |
| Manufacturer |
IBM Corporation |
| Manufacturer Part Number |
18P7538 |
| Brand Name |
IBM |
| Technical Information |
|
| Coating |
High-quality coating for signal and aerial density margin |
| Surface |
Ultra-smooth surface |
| Magnetic Layer Thickness |
< 0.2 microns |
| Durability Features |
Enhanced locking pin, hub, and clutch assemblies |
| Servo Formatting |
Precision timing-based servo formatting process |
| Error Rates |
Maintains low error rates at higher track densities |
