Detailed Specifications

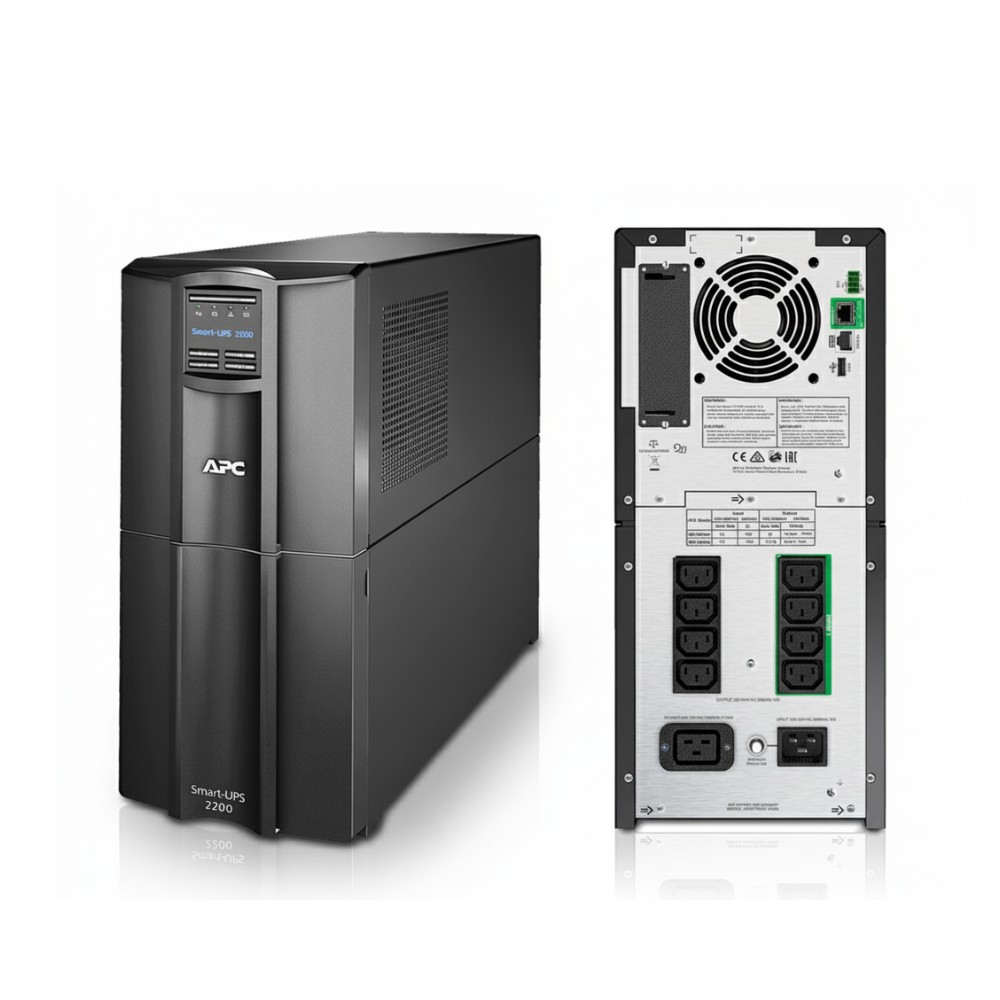

APC SMT2200IC Smart-UPS avr Line Interactive 2200VA Tower 230V C19 outlets
Overview
The APC SMT2200IC is a 2.2 kVA / 1.98 kW line-interactive UPS built for protecting servers, networking gear, storage systems, and edge infrastructure. With AVR (Automatic Voltage Regulation), pure sine-wave output, and SmartConnect cloud monitoring, it keeps equipment running cleanly during brownouts, surges, and short power disruptions. In practice, it can support a small rack of switches, a couple of edge servers, and network appliances for a few minutes while giving you time to shut down gracefully.It includes a multifunction LCD for status and configuration, and uses hot-swappable sealed lead acid battery technology so you don't need to take the load offline during battery replacement. The unit offers multiple IEC outputs (eight C13 and one C19 plus jumpers) making it ideal for standard IT rack and tower gear. With its line-interactive topology, it's a strong fit for branch offices, small data closets, and distributed edge sites where reliable UPS protection and remote visibility matter.
Key Features
2.2 kVA / 1.98 kW capacity with pure sine-wave output for powering sensitive IT loads
SmartConnect cloud monitoring enables remote status, alerts, and firmware update via web portal
Automatic Voltage Regulation (AVR) corrects under/over voltage without using battery energy
Hot-swappable battery (RBC55) and LCD interface allow maintenance without downtime
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | SMT2200IC |
| Product Type | Line-Interactive UPS |
| Key Spec 1 | 2,200 VA / 1,980 W output capacity |
| Key Spec 2 | 8 × IEC C13 + 1 × IEC C19 + 2 jumpers outputs |
| Key Spec 3 | SmartConnect cloud management / SmartSlot support |
| Input Voltage | 230 V nominal |
| Input Range | 160-286 V (adjustable 151-302 V) |
| Output Voltage Distortion | < 5 % |
| Transfer Time | 6 ms typical, up to 10 ms |
| Battery Type & Qty | Sealed lead-acid (RBC55), 1 unit |
| Recharge Time | ~3 hours |
| Surge Energy Rating | 365 J |
| Dimensions / Weight | 435 × 197 × 544 mm; ~48.8 kg net |
| Operating Temp / Humidity | 0-40 °C, 0-95 % RH |
| Warranty | 3 years (unit), 2 years (battery) |
