APC SMT1500CNC 1500 VA Line-Interactive UPS 120 V
Overview :
The APC SMT1500CNC is a line-interactive uninterruptible power supply (UPS) designed to protect critical IT assets against power disturbances in 120 V single-phase environments. It is deployed by network and system engineers to provide short-duration backup power and line conditioning for servers, storage systems, networking equipment, VoIP/UC systems, and point-of-sale hardware during brownouts, surges, and outages.
Rated at 1440 VA / 1000 W, the UPS delivers pure sine-wave output and incorporates Automatic Voltage Regulation (AVR) to stabilise incoming mains voltage without unnecessary battery discharge. Its line-interactive topology reduces transfer time during power events and supports efficient operation in commercial and enterprise settings.

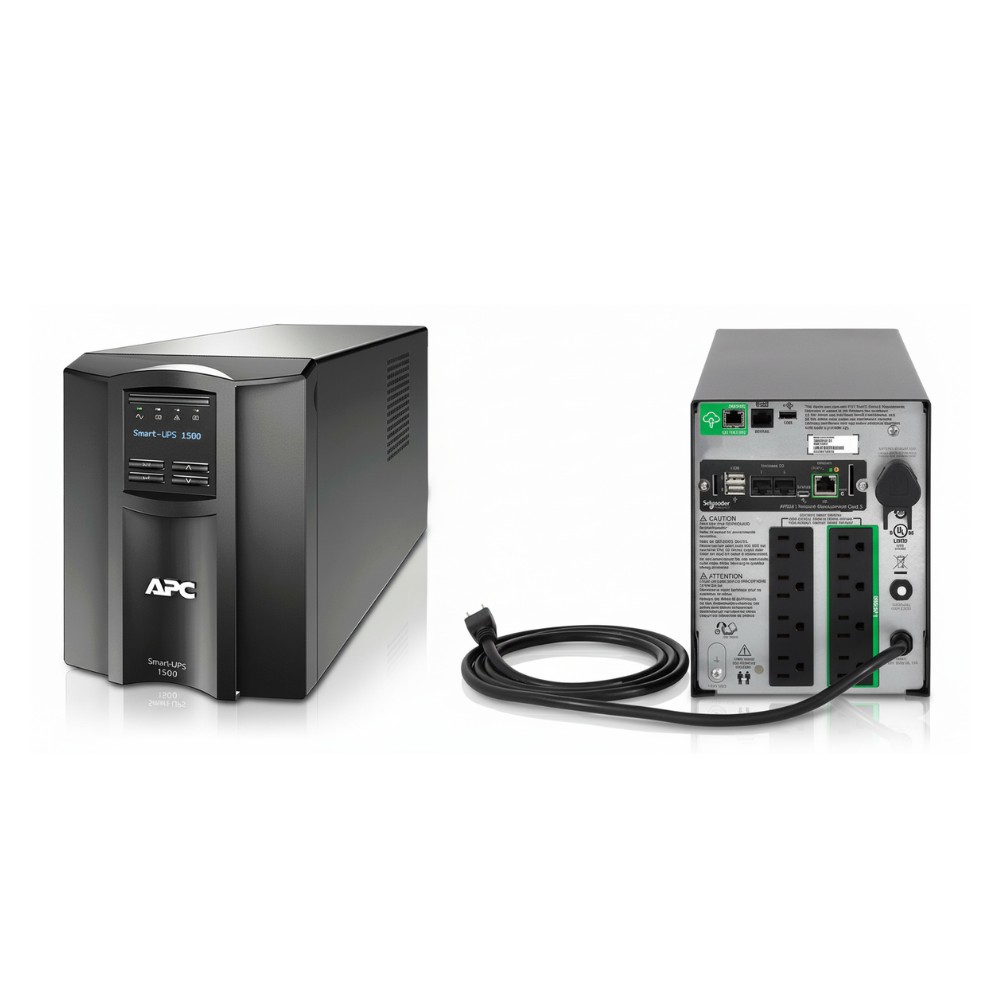

The SMT1500CNC is packaged in a tower form factor with an LCD display for real-time status and diagnostics, making it suitable for server closets, retail network rooms, and small data environments where rackmount space isn't mandatory. Connectivity includes USB and serial ports, an Ethernet SmartConnect port, and a pre-installed Network Management Card (NMC) for remote monitoring and integration with APC EcoStruxure IT or third-party SNMP platforms.
Typical runtime is approximately ~6.5 minutes at full load and ~23 minutes at half load, enabling orderly shutdowns or transition to standby generators for moderate load profiles. The lead-acid battery design is user-replaceable, and typical recharge time is around 3 hours.
This UPS is not suitable for deployment in 208 V/230 V mains systems without the appropriate regional variant and is optimised for tower installations rather than 19″ rack mounting
Key Features
• 1500 VA / 1000 W line-interactive UPS capacity
• Pure sine-wave output with AVR for power stabilisation
• Pre-installed Network Management Card (NMC)
• SmartConnect cloud-enabled remote monitoring
• Tower UPS with LCD status and diagnostics
Specifications
| Parameter | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMT1500CNC |
| Product Type | Line-Interactive UPS |
| Power Capacity | 1440 VA / 1000 W |
| Topology | Line-interactive with AVR |
| Nominal Input Voltage | 120 V AC |
| Input Voltage Range | 75-154 V AC (adjustable) |
| Nominal Output Voltage | 120 V AC |
| Output Waveform | Pure sine wave |
| Frequency | 50/60 Hz auto-sensing |
| Input Connector | NEMA 5-15P |
| Output Connectors | 8× NEMA 5-15R |
| Communications | SmartConnect (Ethernet), USB, Serial |
| Surge Energy Rating | ~680 J |
| Battery Type | Lead-acid, user-replaceable |
| Runtime (Full Load) | ~6.5 min |
| Runtime (Half Load) | ~23 min |
| Recharge Time | ~3 hours |
| LCD Display | Yes - status & diagnostics |
| Dimensions (HxWxD) | ~8.6″ × 6.7″ × 17.3″ (219×171×439 mm) |
| Weight | ~54.2 lb (24.6 kg) |
| Certifications | ENERGY STAR, cULus, RoHS |
