Detailed Specifications

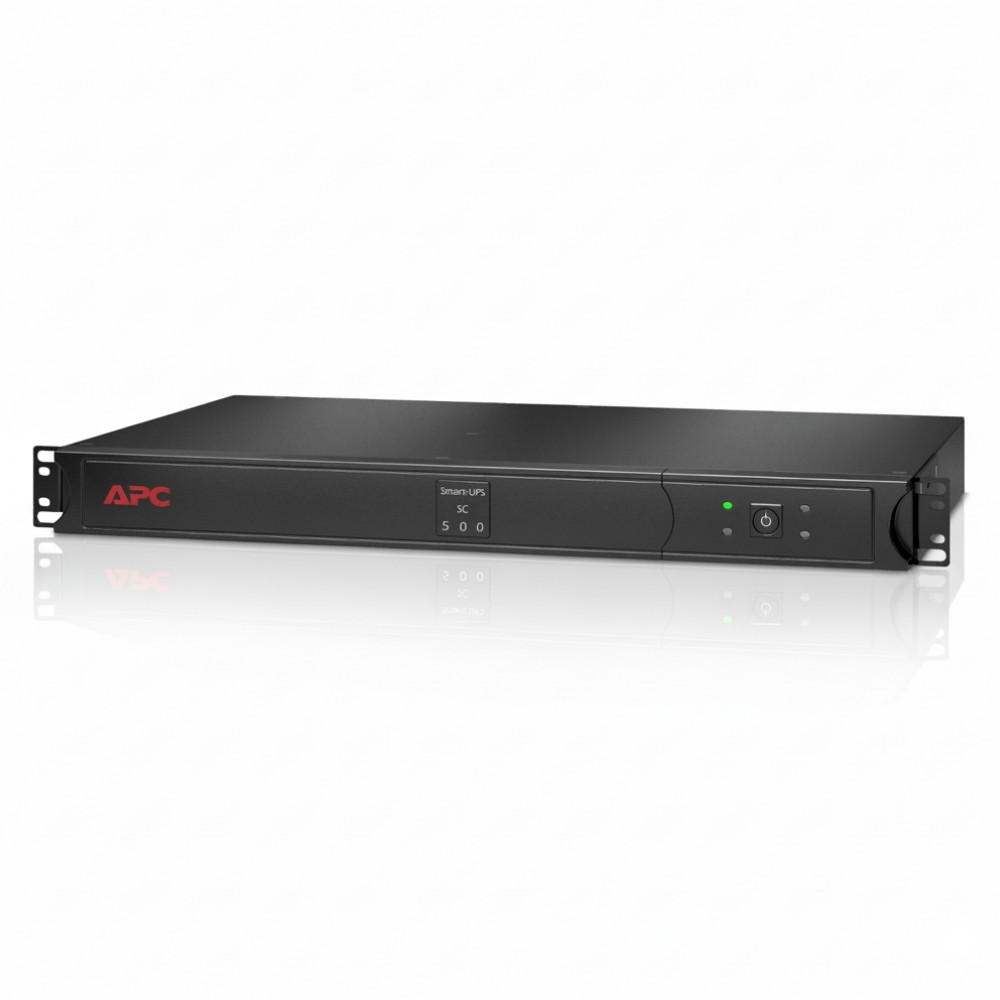

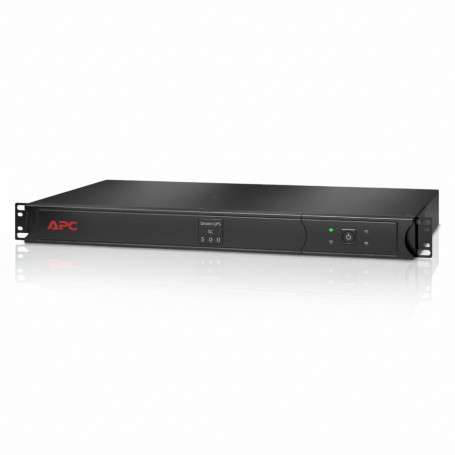

APC SC500RM1U - Line-Interactive UPS
Overview
The APC SC500RM1U is a 1U rackmount line-interactive uninterruptible power supply (UPS) designed to protect small IT and network equipment from outages and voltage anomalies. It delivers up to 500 VA / 300 W of backup power and stabilizes incoming utility voltage with automatic voltage regulation (AVR). This model fits in shallow racks or tight spaces where depth is limited, making it suitable for edge closets, small data closets, or branch IT racks. USB and serial interfaces allow integration with graceful shutdown software and basic UPS management.
Key Features
500 VA / 300 W backup power capacity
Rackmount 1U, short-depth form factor
Line-interactive topology with AVR
Four NEMA 5-15R battery/surge outlets
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SC500RM1U |
| Product Type | Line-Interactive UPS |
| Capacity | 500 VA / 300 W |
| Input Voltage | 120 VAC |
| Input Frequency | 50-60 Hz |
| Output Voltage | 120 VAC |
| Output Connections | 4 × NEMA 5-15R |
| Transfer Time | Typical 5 ms, Max 8 ms |
| Battery Type | VRLA sealed lead-acid |
| Replacement Battery | APCRBC189 |
| Interface Ports | USB, Serial (RJ-45) |
| Dimensions (HxWxD) | 44 × 440 × 268 mm |
| Net Weight | 15.7 lbs (≈ 7.1 kg) |
