CyberPower OR700LCDRM1U 700VA Line-Interactive UPS

CyberPower

OR700LCDRM1U

700 VA Line-Interactive UPS (1U Rackmount, Smart App LCD)

The CyberPower OR700LCDRM1U is a compact 1U rackmount UPS offering 700 VA / 400 W of clean, uninterrupted power with line-interactive topology and simulated sine wave output. Built for networking gear, workgroup servers, telecom installations, and critical workstations, it integrates Automatic Voltage Regulation (AVR) and GreenPower' bypass technology to optimize energy usage and protect sensitive electronics. With a Smart App LCD display and optional remote management, this UPS empowers IT teams with vital insights into power health and system status.

Features

The OR700LCDRM1Uensures durable protection and compliance for equipment lacking active PFC power supplies. Its AVR design corrects minor voltage dips and surges without activating the battery, significantly prolonging component life. The compact 1U chassis saves space in data closets or rack cabinets, while six outlets×four battery-backed and two surge-only×offer versatile load management.

Advanced Options

The multifunction LCD panel provides real-time feedback, including input/output voltage, load percentage, battery status, runtime, and alerts. Remote shutdown, email notifications, and syslog integration are accessible via PowerPanel® Business software, and SNMP/HTTP control is enabled through an optional RMCARD205 card.

Product Key Features

• 700 VA / 400 W capacity with pure (simulated) sine wave output

• Line-interactive design with AVR and GreenPower bypass

• 1U rackmount form factor with Smart App LCD

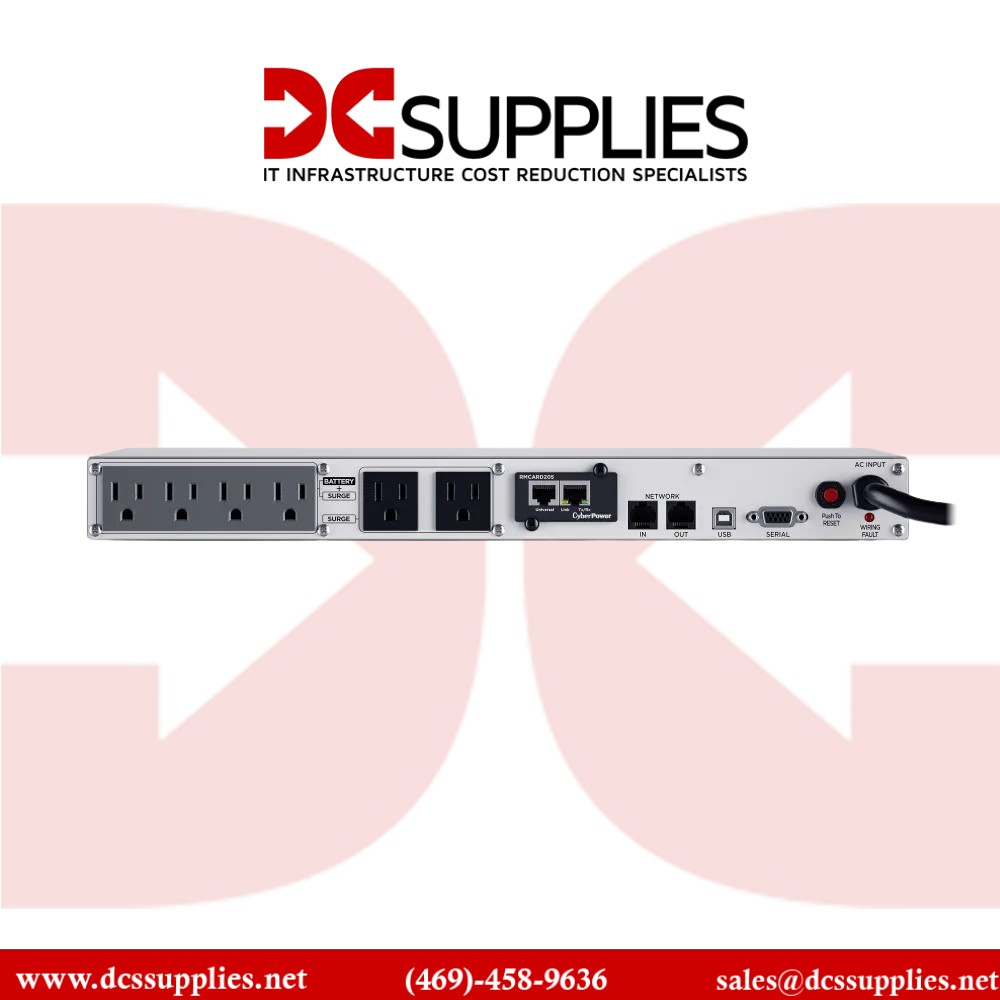

• 6 NEMA 5-15R outlets: 4 battery+s surge protection, 2 surge-only

• USB, serial ports + optional SNMP card slot

• PowerPanel® Business management suite included

---

Reliability & Performance

The OR700LCDRM1Udelivers enterprise-grade performance with ENERGY STAR® certification and 1150 J surge suppression. Its line-interactive topology with AVR and GreenPower bypass reduces heat and electrical waste. Battery runtime is approximately 3 minutes at full load and 11 minutes at half load, with an 8-hour recharge time and hot-swappable battery capability. The UPS includes EMI/RFI shielding and phone/network line protection via RJ11/RJ45, ensuring clean power delivery. A robust 3-year warranty and a $300,000 connected equipment guarantee add confidence for mission-critical deployments.

Key Features :

• 700 VA / 400 W capacity

• Line-interactive topology with AVR

• Simulated sine wave output

• Smart App LCD display

• 6 NEMA 5-15R outlets (4 battery + 2 surge)

• USB & serial ports; optional RMCARD205 slot

• PowerPanel® Business management

• ENERGY STAR certified, 1150 J surge protection

Specifications :

Specification	Details
Model Number	OR700LCDRM1UU
UPS Type	Line-Interactive
Capacity	700 VA / 400 W
Output Waveform	Simulated Sine Wave
Topology	Line-Interactive with AVR
Form Factor	1U Rackmount
Input Voltage Range	90-140 VAC
Output Voltage	120 VAC ± 10%
Outlets	6 × NEMA 5-15R (4 battery + surge, 2 surge-only)
Communication Ports	USB, Serial, Optional SNMP (RMCARD205)
Display	Smart App LCD
Battery Configuration	2 × 6 V/8 Ah SLA, hot-swappable
Runtime	~3 min @ full load, ~11 min @ half load
Recharge Time	~8 hours
Surge Suppression	1150 J
EMI/RFI Protection	Yes
Dimensions (WxHxD)	17.05″ × 1.75″ × 9.25″
Weight	18.5 lb (8.39 kg)
Warranty	3 Years + $300K Connected Equipment Guarantee
