CyberPower CP1500PFCRM2U 1500VA Line-Interactive UPS

CyberPower

CP1500PFCRM2U

1500VA Rack-mount UPS

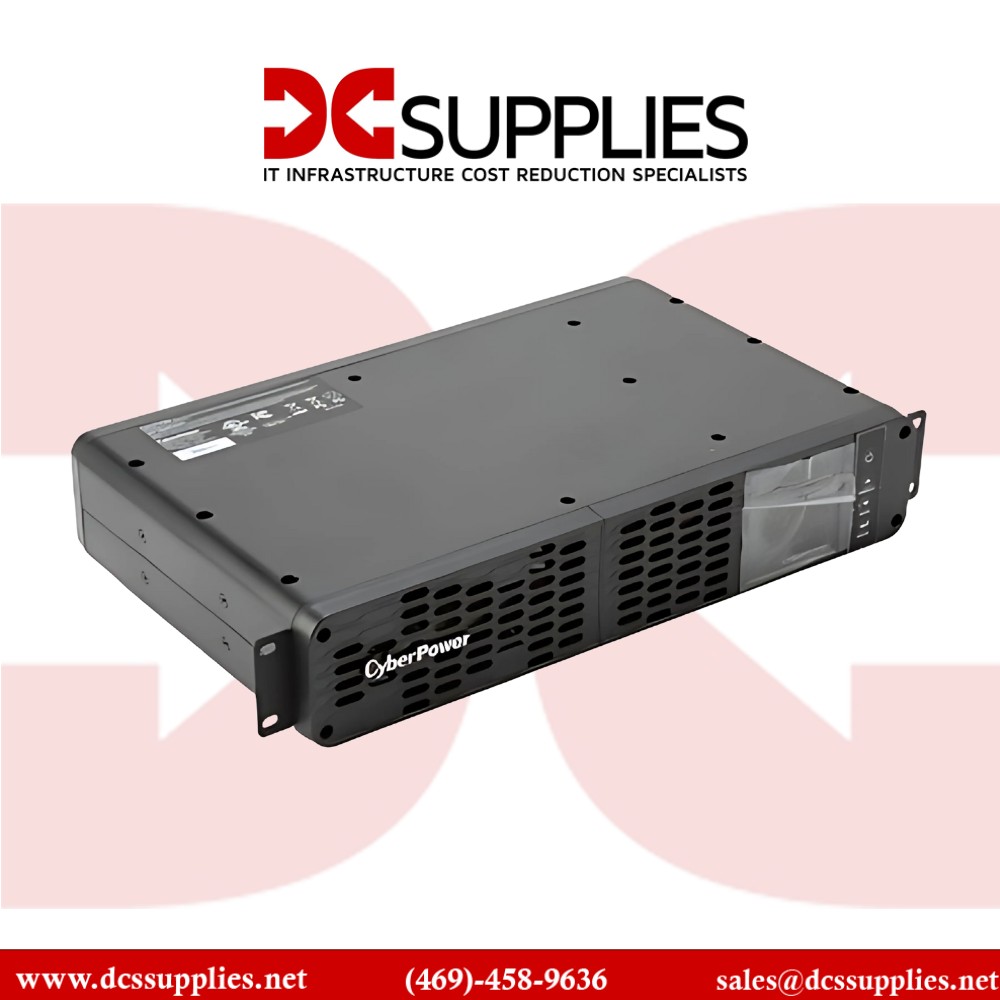

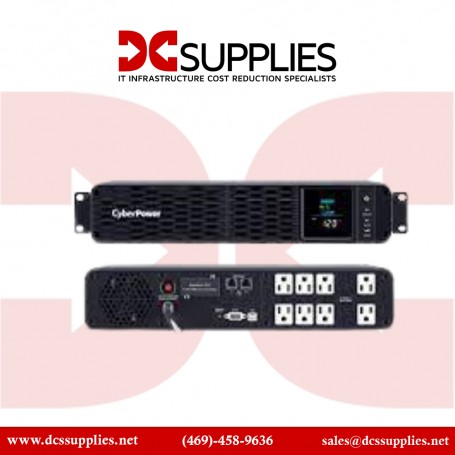

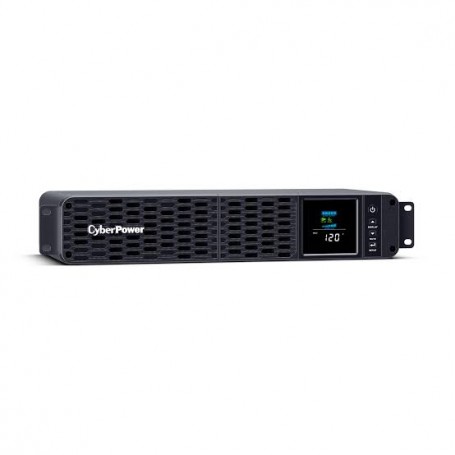

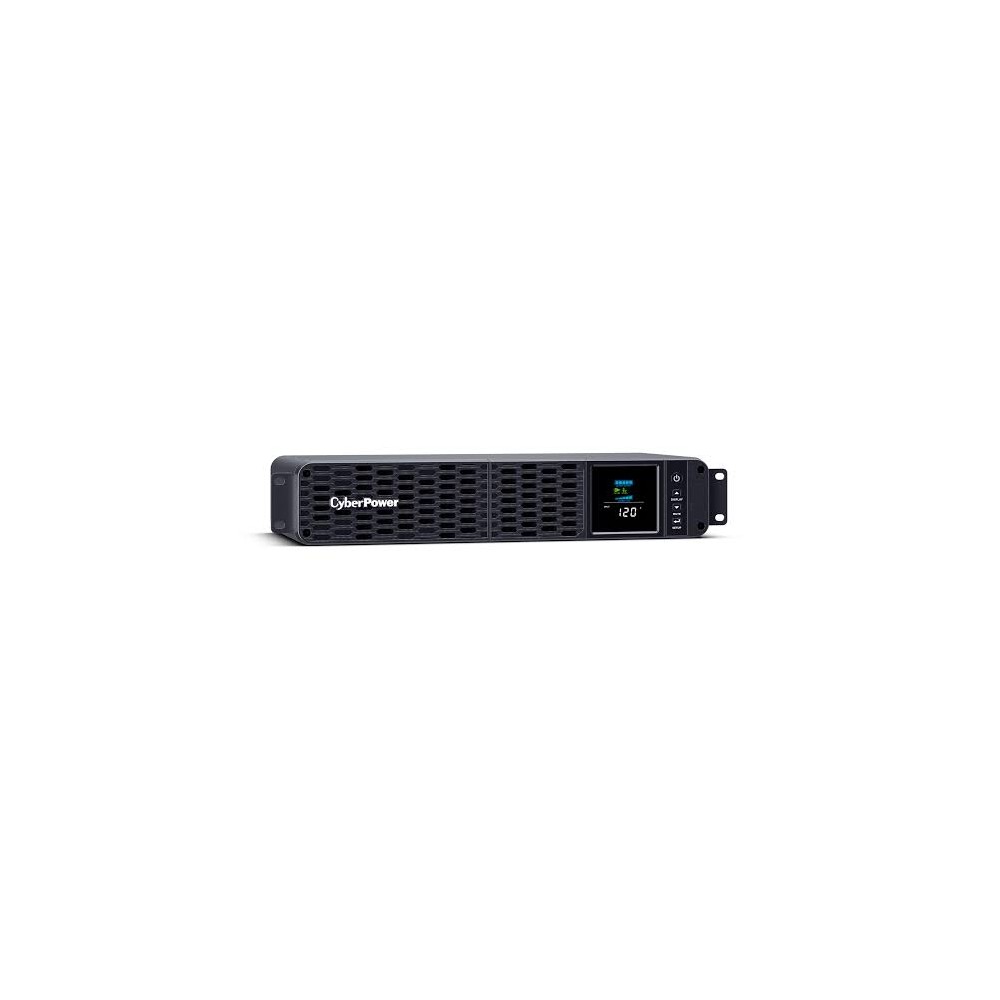

The CyberPower CP1500PFCRM2U is a 2U, short-depth (10.5″) rackmount UPS delivering 1500 VA / 1000 W of true sine-wave power. Designed for server rooms, network closets, and edge IT deployments, it offers robust battery backup, surge protection, and EMI/RFI noise filtering. Featuring a color LCD and automatic voltage regulation (AVR), it helps prevent unexpected shutdowns and equipment damage×all in a compact, rack-friendly form

Features

This line-interactive UPS supports devices using active PFC power supplies and offers 8 outlets (all battery-backed and surge-protected), including 2 widely spaced for bulky plugs. It provides 3.1 minutes of runtime at full load and 10.2 minutes at half load, giving you enough time for safe shutdowns or bridge-over brief interruptions

Advanced Options

The unit features a multifunction color LCD for real-time status monitoring and alerts. It also supports remote connectivity via USB or optional SNMP cards for network integration. GreenPower bypass technology helps reduce energy consumption, heat, and noise during normal operation

Product Key Features

• 1500 VA / 1000 W capacity with true sine-wave output

• 8 battery-backed/up-surge outlets (2 transformer-spaced)

• Short-depth 2U rackmount design (10.5″/267 mm)

• Automatic Voltage Regulation (AVR) corrects brownouts/surges

• Color LCD panel with status and alert indicators

• EMI/RFI filtering and network surge protection (RJ45 passthrough)

• GreenPower bypass mode for eco-efficient operation

• USB + optional SNMP remote management

• ENERGY STAR certified

---

Reliability & Performance

Built for short-depth racks, the CP1500PFCRM2U balances power and form factor. With sealed lead-acid batteries (2 × 9 Ah) that are hot-swappable, it ensures minimal maintenance and high uptime. The GreenPower bypass reduces energy overhead and inefficiency×an advantage supported by CDW and manufacturer documentationAutomatic Voltage Regulation extends battery life by stabilizing incoming power. The LCD provides instant feedback, helping to anticipate issues before they cause interruptions. Surge protection, EMI/RFI filtering, and $500,000 connected equipment coverage (per CyberPower's guarantee) make it a comprehensive package

Key Features :

• Capacity: 1500 VA / 1000 W

• Outlets: 8 × NEMA 5-15R (all battery + surge)

• Waveform: Pure sine-wave

• Run Time: 3.1 min (full), 10.2 min (half)

• Form Factor: 2U short-depth rackmount

• Depth: 10.5″ (267 mm)

• Battery: 2 × 12 V 9 Ah SLA, hot-swappable

• Management: USB built-in, SNMP optional

• Surge Protection: 1500 J + RJ45 EMI/RFI filtering

• Warranty: 3 years + $500k connected equipment guarantee

Specifications :

Specification	Details
Model Number	CP1500PFCRM2UU
UPS Type	Line-Interactive
Capacity	1500VA / 1000W
Output Waveform	Pure Sine Wave
Form Factor	2U Rackmount
Voltage Range	90-150V (Input), 120V (Output)
Outlets	8 × NEMA 5-15R
Communication Ports	USB, Serial, SNMP Slot
LCD Display	Multifunction Status Panel
Battery Type	Sealed Lead-Acid, User-Replaceable
Hot-Swappable Batteries	Yes
Dimensions (W×D×H)	17.25″ × 15.25″ × 3.5″ (2U)
Weight	52.5 lbs (23.8 kg)
Software	PowerPanel® Business Edition
Surge Protection	Yes (EMI/RFI + RJ11/RJ45 Data Line)
Warranty	3-Year Limited (Battery Covered)
