Detailed Specifications
Overview

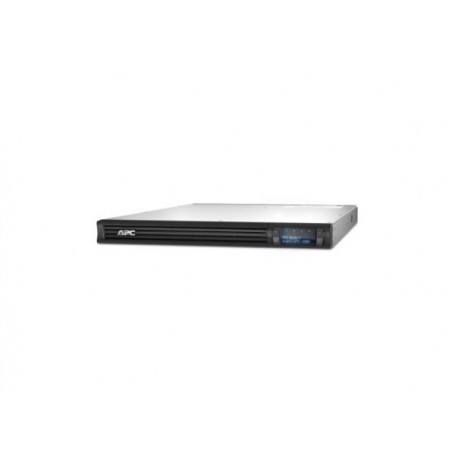

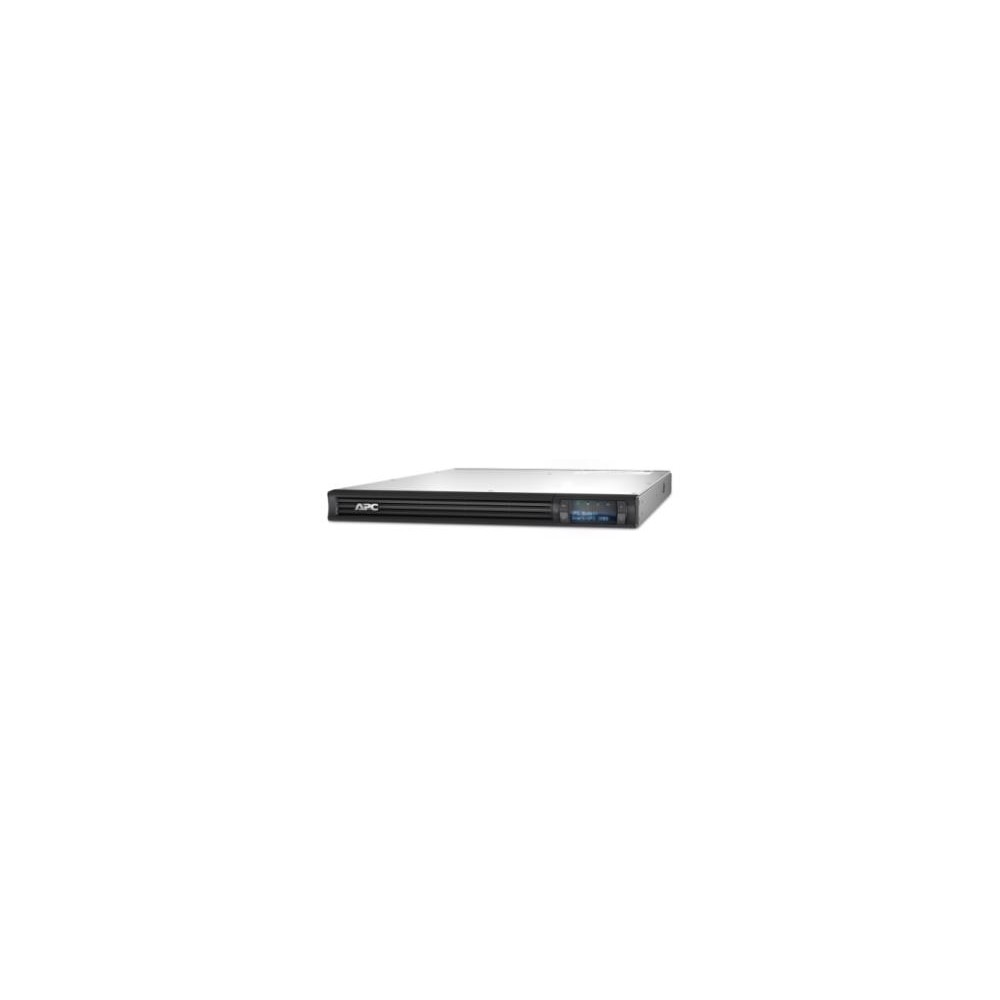

The APC SMT1000RM1U Smart-UPS is a line-interactive uninterruptible power supply designed to provide backup power and voltage regulation for critical IT and electronic equipment. It offers 1000VA / 800W capacity, a front LCD status display, and a compact 1U short-depth rackmount form factor. Automatic Voltage Regulation (AVR) helps correct overvoltage and undervoltage conditions without unnecessarily switching to battery power.
Key Features
- 1000VA / 800W capacity: Supports compatible networking and IT equipment.
- 1U rackmount design: Helps conserve rack space in compact installations.
- LCD status display: Provides convenient access to UPS operating information.
- Automatic Voltage Regulation: Double-boost and trim AVR helps stabilize input voltage.
- Four output outlets: Four NEMA 5-15R receptacles for compatible 120V devices.
- USB and serial communication: Supports monitoring and controlled shutdown with compatible software.
- Replaceable lead-acid battery: Internal battery is replaceable; the specified replacement cartridge is APC RBC43.
- SmartSlot support: Allows compatible management accessories to be installed.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | SMT1000RM1U |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS |
| UPS Topology | Line-interactive |
| Rated Capacity | 1000VA |
| Output Power | 800W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Input Connection | 1 × NEMA 5-15P |
| Output Connections | 4 × NEMA 5-15R |
| Voltage Regulation | Automatic Voltage Regulation (AVR), double boost and trim |
| Waveform | Sine wave |
| Battery Type | Internal sealed lead-acid (VRLA) |
| Replacement Battery | APC RBC43 |
| Typical Recharge Time | 5 hours |
| Rack Height | 1U |
| Communication | USB, serial, SmartSlot |
| Dimensions (H × W × D) | 1.73 × 17.01 × 19.76 inches |
| Net Weight | 34.83 lb (15.8 kg) |
Applications
- Network switches and routers
- Small servers and IT equipment
- Network and telecommunications racks
- Business workstations and connected electronics
- Equipment requiring backup power and voltage regulation
Compatibility and Installation
Before installation, verify that the connected equipment operates at 120V AC and that its combined power demand remains within the UPS rating of 1000VA / 800W. The UPS uses a NEMA 5-15P input plug and provides four NEMA 5-15R output receptacles. Confirm rack depth and mounting requirements, and use compatible APC monitoring software and communication connections where required. The replacement battery should match the specified APC RBC43 cartridge.
Frequently Asked Questions
What is the power capacity of the SMT1000RM1U?
It is rated at 1000VA and 800W.
How many outlets does it have?
It provides four NEMA 5-15R output outlets.
Does this UPS support automatic voltage regulation?
Yes. It includes AVR with double-boost and trim functions.
What battery does it use?
It uses an internal sealed lead-acid battery. APC lists RBC43 as the replacement battery cartridge.
How much rack space is required?
The unit occupies 1U of rack space. Check the product dimensions and rack depth before installation.
Can it connect to a computer for monitoring?
Yes. USB and serial communication are supported for compatible monitoring and shutdown software.
DC Supplies Product Note
DC Supplies recommends verifying the exact manufacturer part number, voltage requirements, connected load, and rack dimensions before ordering. Included accessories and warranty coverage may vary by sales channel and region.
