Detailed Specifications
Overview

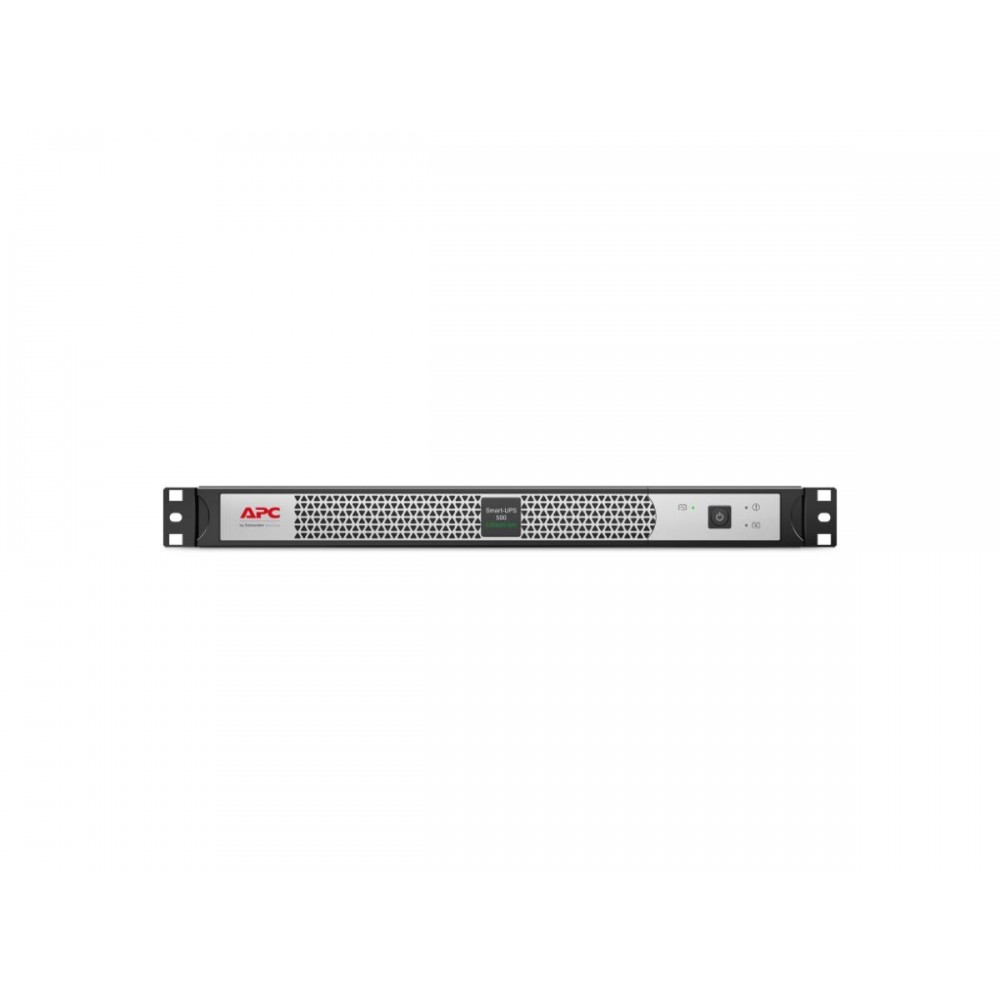

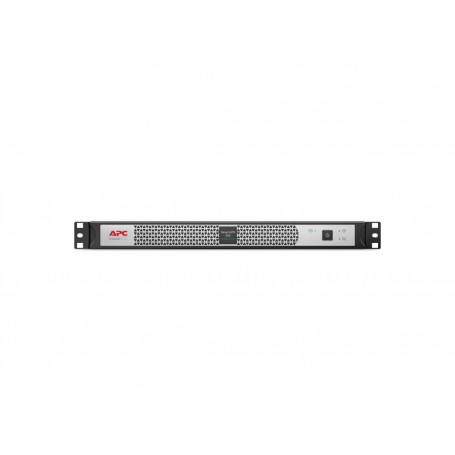

The APC SCL500RM1U Smart-UPS is a compact, line-interactive uninterruptible power supply designed to provide backup power and power protection for compatible electronic equipment. It delivers 500VA / 400W capacity in a 1U short-depth rackmount design, making it suitable for space-constrained network closets, equipment racks, and small IT installations. Its internal lithium-ion battery supports dependable backup power, while USB and serial connectivity support system monitoring and graceful shutdown with compatible software.
Key Features
- 500VA / 400W capacity: Supports compatible connected equipment during power interruptions.
- Lithium-ion battery: Uses an internal rechargeable lithium-ion battery.
- Compact 1U rackmount design: Short-depth chassis helps preserve rack space.
- Four output outlets: Includes four NEMA 5-15R receptacles for compatible devices.
- 120V operation: Designed for 120V input and output power.
- USB and serial connectivity: Supports monitoring and graceful shutdown with compatible software.
- Line-interactive topology: Provides UPS power protection for connected equipment.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | SCL500RM1U |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS |
| Rated Capacity | 500VA |
| Output Power | 400W |
| UPS Topology | Line-interactive |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Input Connector | 1 × NEMA 5-15P |
| Output Connectors | 4 × NEMA 5-15R |
| Battery Type | Internal lithium-ion |
| Rack Height | 1U |
| Form Factor | Short-depth rackmount |
| Communication | USB and serial |
| Color | Black with silver front bezel |
| Dimensions (H × W × D) | 1.73 × 17.01 × 9.13 inches |
| Net Weight | 9.22 lb (4.18 kg) |
Applications
- Network switches and routers
- Small business IT equipment
- Compact server and network racks
- Communications and security equipment
- Compatible desktop and rack-mounted electronics
Compatibility and Installation
Confirm that connected equipment operates at 120V AC and that its combined power demand does not exceed the UPS's 500VA / 400W rating. The unit uses a NEMA 5-15P input plug and provides four NEMA 5-15R output outlets. Rack-mounting support rails are included. Use compatible APC software and supported USB or serial connections for monitoring and graceful shutdown.
Frequently Asked Questions
What is the capacity of the APC SCL500RM1U?
It is rated at 500VA and 400W.
What type of battery does it use?
It uses an internal rechargeable lithium-ion battery.
How many output outlets are included?
It provides four NEMA 5-15R output outlets.
How much rack space does it require?
The UPS occupies 1U of rack space and features a short-depth chassis.
Can it be monitored by a computer?
Yes. USB and serial connectivity support monitoring and graceful shutdown with compatible software.
What should I check before purchasing?
Verify 120V power requirements, the total connected load, rack dimensions, and outlet compatibility before installation.
DC Supplies Product Note
DC Supplies recommends checking the exact manufacturer part number and equipment requirements before ordering. Specifications and included accessories should be confirmed against the product supplied.
