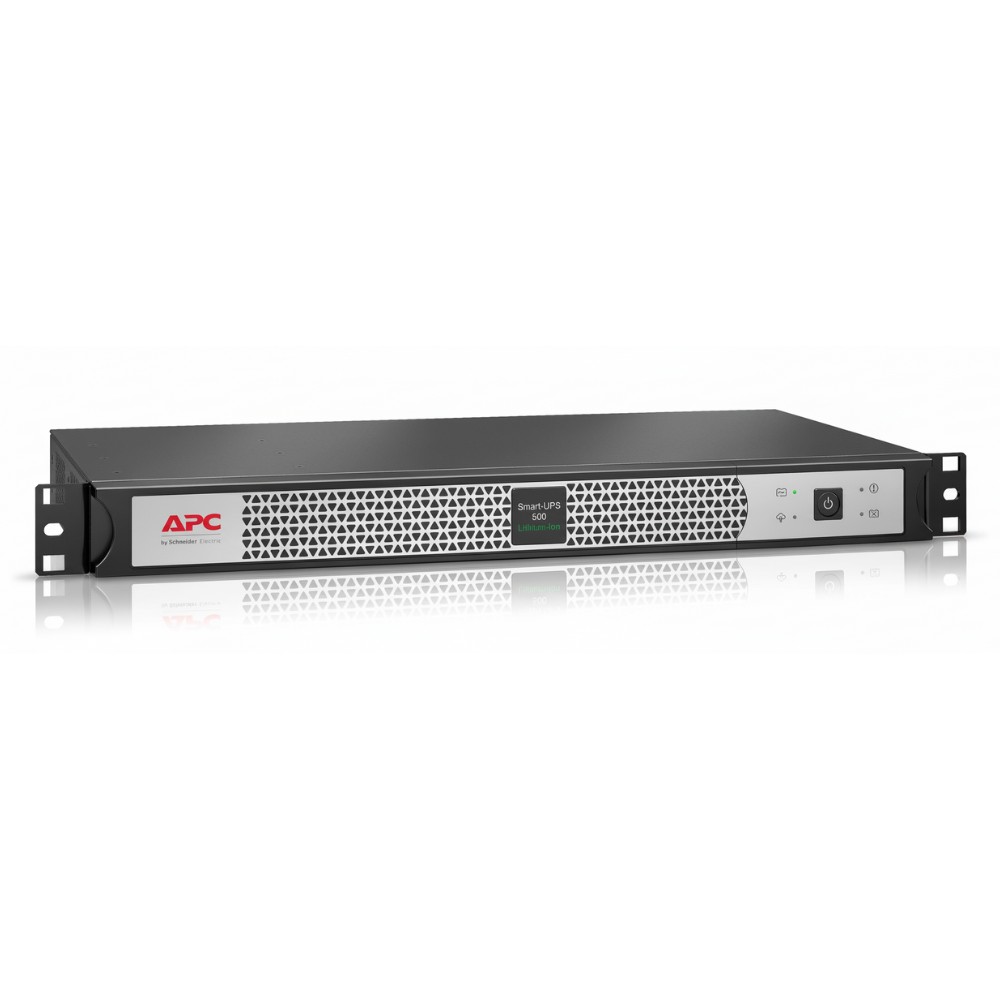

APC SCL500RM1UCUS 500 VA Short-Depth Rackmount UPS
Overview
The APC SCL500RM1UCUS is a 500 VA / 400 W line-interactive UPS featuring a lithium-ion battery, designed for 1U short-depth rackmount installations in edge computing, network closets, and small IT environments. It delivers a pure sine-wave output, ensuring compatibility with active PFC power supplies and sensitive electronics. The SmartConnect Ethernet port enables remote cloud-based monitoring for power management visibility. With its compact 9.13″ depth and lightweight design, it's ideal for shallow racks and wall-mount enclosures where space is limited.
Key Features
500 VA / 400 W line-interactive UPS with lithium-ion battery
1U short-depth (9.13″) design for shallow racks
SmartConnect Ethernet port for remote cloud monitoring
Pure sine-wave output for active PFC compatibility
4 × NEMA 5-15R outlets with surge protection
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SCL500RM1UCUS |
| Product Type | Line-Interactive Rackmount UPS |
| Rated Power Capacity (VA) | 500 VA |
| Rated Power Output (W) | 400 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 92-139 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lithium-Ion |
| Recharge Time | 3 hours |
| Transfer Time | 6 ms typical / 10 ms max |
| Dimensions (H×W×D) | 1.73″ × 17.01″ × 9.13″ (4.4 × 43.2 × 23.2 cm) |
| Weight | 9.22 lb (4.18 kg) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Outlets | 4 × NEMA 5-15R |
