APC SMT1500IC 1500 VA Line-Interactive UPS 230 V
Overview :
The APC SMT1500IC is a line-interactive uninterruptible power supply (UPS) built for 230 V single-phase environments to provide conditioned power and short-duration backup for critical IT equipment. It is deployed by network and data-centre engineers to protect servers, network switches, storage, telecom gear, and edge infrastructure against utility power disruptions such as brownouts, surges, and outages.
Rated at 1500 VA / 1000 W, this UPS uses Automatic Voltage Regulation (AVR) to stabilise input voltage variations without discharging the battery whenever possible, preserving battery life. Output power during outage conditions is delivered as a pure sine-wave, ensuring compatibility with active PFC power supplies and sensitive electronics.

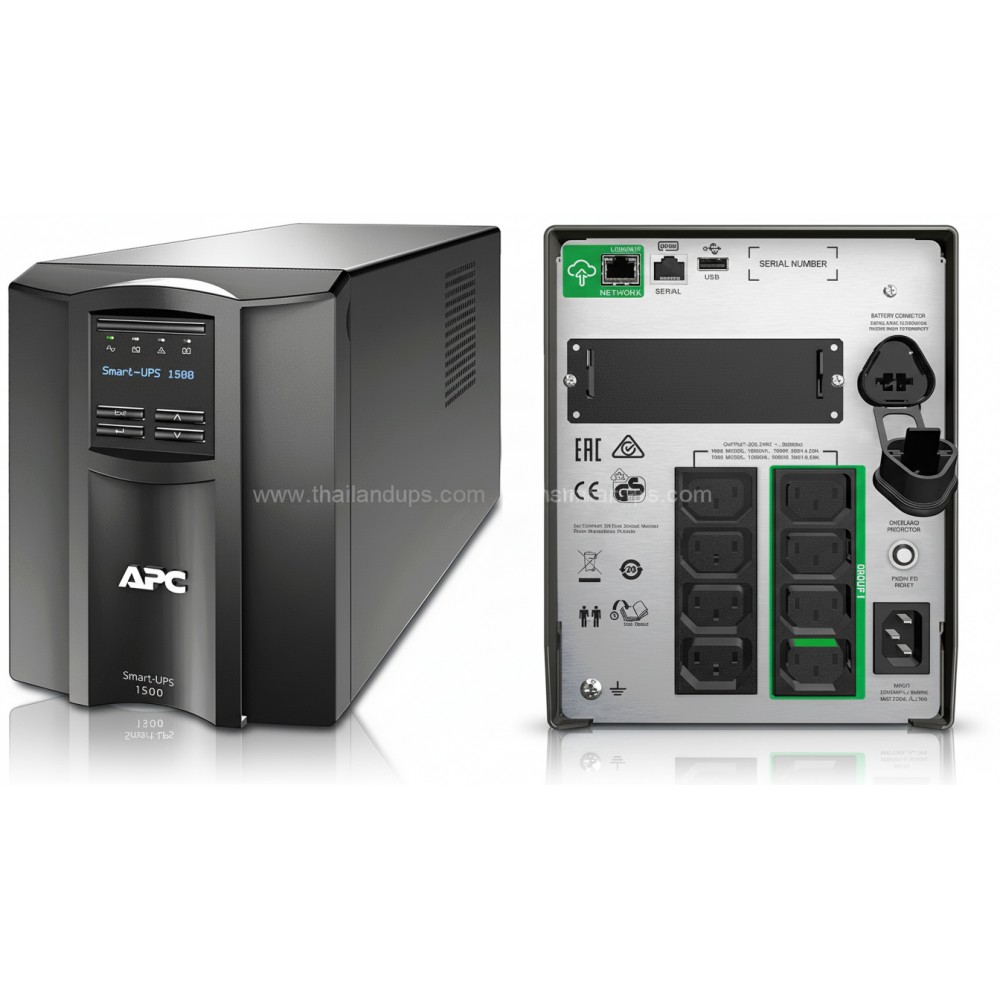

The unit is packaged in a tower form factor with a graphical LCD status display providing real-time information on load level, battery status, and input/output voltages. It includes multiple IEC C13 outlets to support distributed loads in server rooms, small data centres, and enterprise closets.
Management and remote monitoring capabilities include a SmartConnect Ethernet port for cloud-based UPS monitoring and alerts, a SmartSlot for optional expansion cards, and standard USB/serial interfaces for local communications and graceful shutdown integration with centralised power management platforms.
Typical internal runtime supports orderly shutdown operations or bridging to standby power during short outages. Lead-acid batteries are user-replaceable, enabling maintenance without significant equipment downtime.
This UPS is not intended for extended long-duration standalone runtime without external expansion, nor is it suited for 120 V distribution without the appropriate model variant.
Key Features
• 1500 VA / 1000 W line-interactive UPS capacity
• Pure sine-wave output on battery
• SmartConnect cloud monitoring via Ethernet
• SmartSlot expansion for network management
• LCD status panel with load and battery diagnostics
Specifications
| Parameter | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMT1500IC |
| Product Type | Line-Interactive UPS |
| Power Capacity | 1500 VA / 1000 W |
| Topology | Line-interactive with AVR |
| Nominal Input Voltage | 230 V AC |
| Nominal Output Voltage | 230 V AC |
| Input Connection | IEC C14 inlet |
| Output Connectors | 8× IEC C13 + 2 IEC jumpers |
| Output Waveform | Pure sine wave |
| Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Transfer Time | ~6 ms typical / ≤10 ms max |
| Battery Type | Sealed lead-acid (VRLA), user-replaceable |
| Runtime (Half Load) | ~6-7 min |
| Runtime (Full Load) | ~3-4 min |
| Recharge Time | ~3 hours |
| Communications | SmartConnect Ethernet, SmartSlot, USB, Serial |
| LCD Display | Yes - status & control |
| Surge Protection | Yes, multi-pole filtering |
| Dimensions (HxWxD) | ~219 × 171 × 439 mm |
| Weight | ~24.1 kg |
| Operating Temp | 0-40 °C |
| Humidity | 0-95% non-condensing |
| Warranty | UPS 3 years, battery 2 years |
