Detailed Specifications

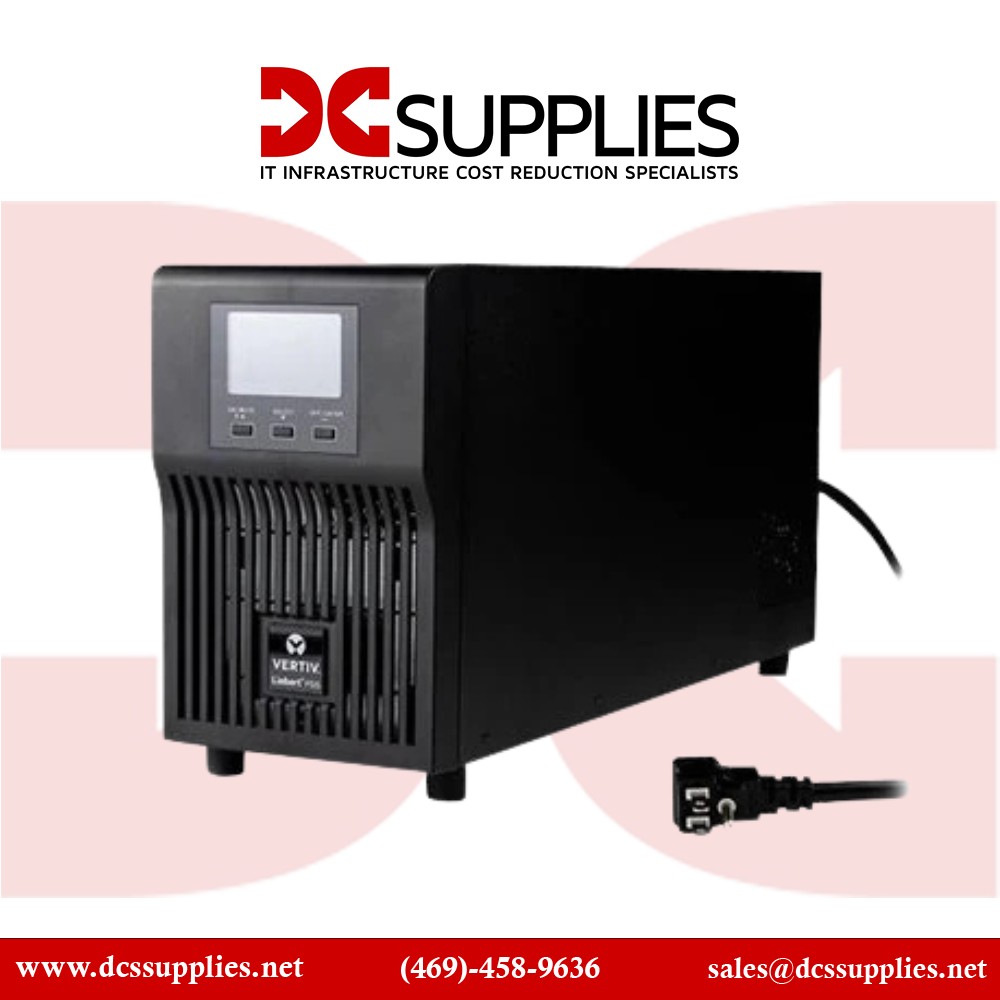

Vertiv PSI5-1500MT120 Tower 1440VA 1350W
Overview :
The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 1440VA UPS tower offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage.
Specification :
| Product Name |
PSI5 Tower 1440VA 1350W |
| Manufacturer Part Number |
PSI5-1500MT120 |
| Product Type |
Line-interactive UPS |
| Phase |
Single Phase |
| Receptacle Type |
NEMA 5-15R |
| Network (RJ-45) |
Yes |
| Product Family |
PSI5 |
| Backup / Run Time (Half Load) |
18 Minute |
| Backup / Run Time (Full Load) |
6 Minute |
| Load Capacity (VA) |
1500 VA |
| Load Capacity (Watt) |
1350 W |
| TAA Compliant |
No |
| Energy Star |
No |
| AVR |
Yes |
| Receptacle Detail |
5 x NEMA 5-15R |
| Rack Height |
1U |
| Plug / Connector Type |
NEMA 5-15P |
| Input Voltage Range |
75 V AC - 146 V AC |
| Form Factor |
Tower |
| Waveform Type |
Pure Sine Wave |
| Hot Swappable |
Yes |
| Input Voltage |
120 V AC |
| Battery Chemistry |
Lead Acid |
| Input Frequency |
65 Hz |
| Battery Size |
12V |
| Environmentally Friendly |
Yes |
| Battery Capacity |
9000 mAh |
| Maximum Operating Temperature |
104°F (40°C) |
| Serial Port |
No |
| Number of Batteries |
4 |
| Battery Characteristics |
Valve-regulated, Non-spillable |
| DC System Voltage |
12 V DC |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
| Maximum Operating Elevation |
9842.52 ft |
| Operating Humidity |
20% - 90% |
| Storage Relative Humidity |
20% - 90% |
| Storage Temperature |
5°F (-15°C) - 122°F (50°C) |
| Transfer Time |
4 ms |
| Typical Battery Recharge Time |
8 Hour |
| Country of Origin |
China |
| Height |
8.7" |
| Width |
5.7" |
| Depth |
18.9" |
| Output Frequency |
60 Hz |
| Product Series |
PSI5 |
| Dataline Protection |
RJ-11 RJ-45 |
| Product Model |
PSI |
| Limited Warranty |
2 Year |
| Software Included |
Power Insight 2.2 |
