Detailed Specifications

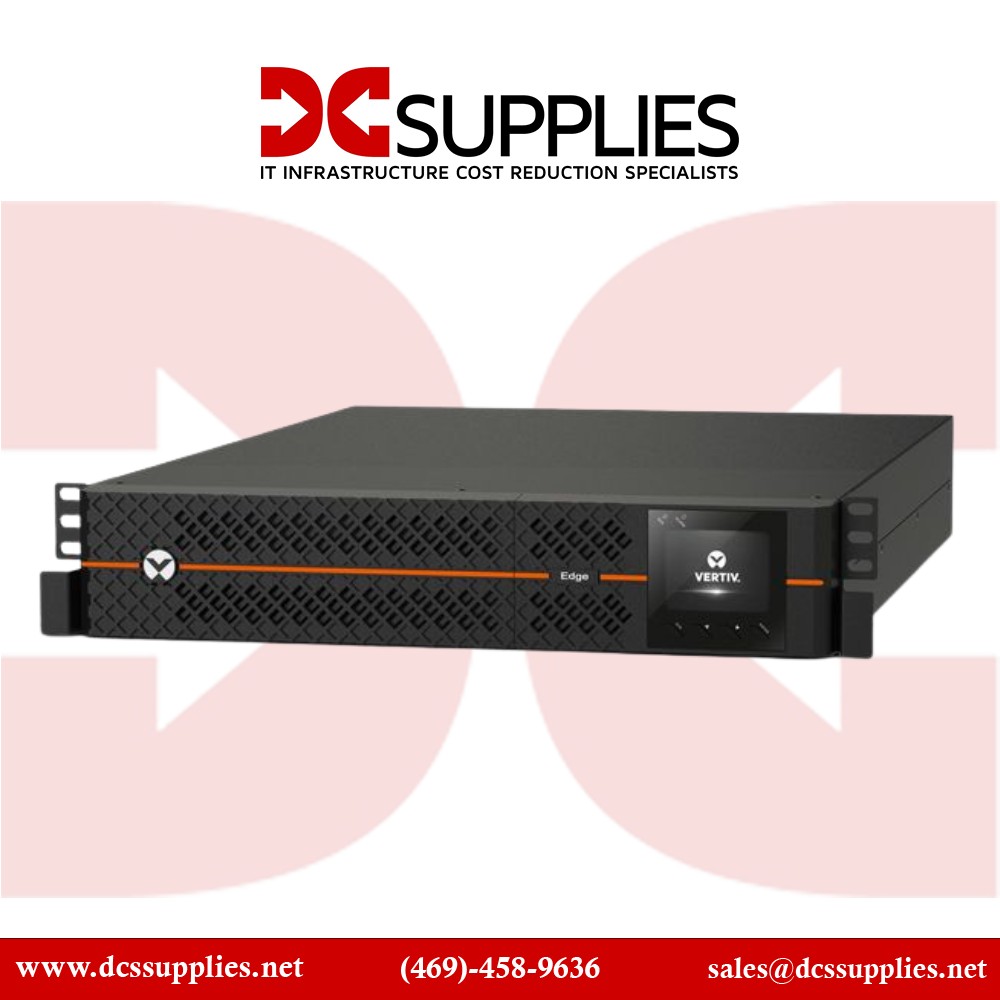

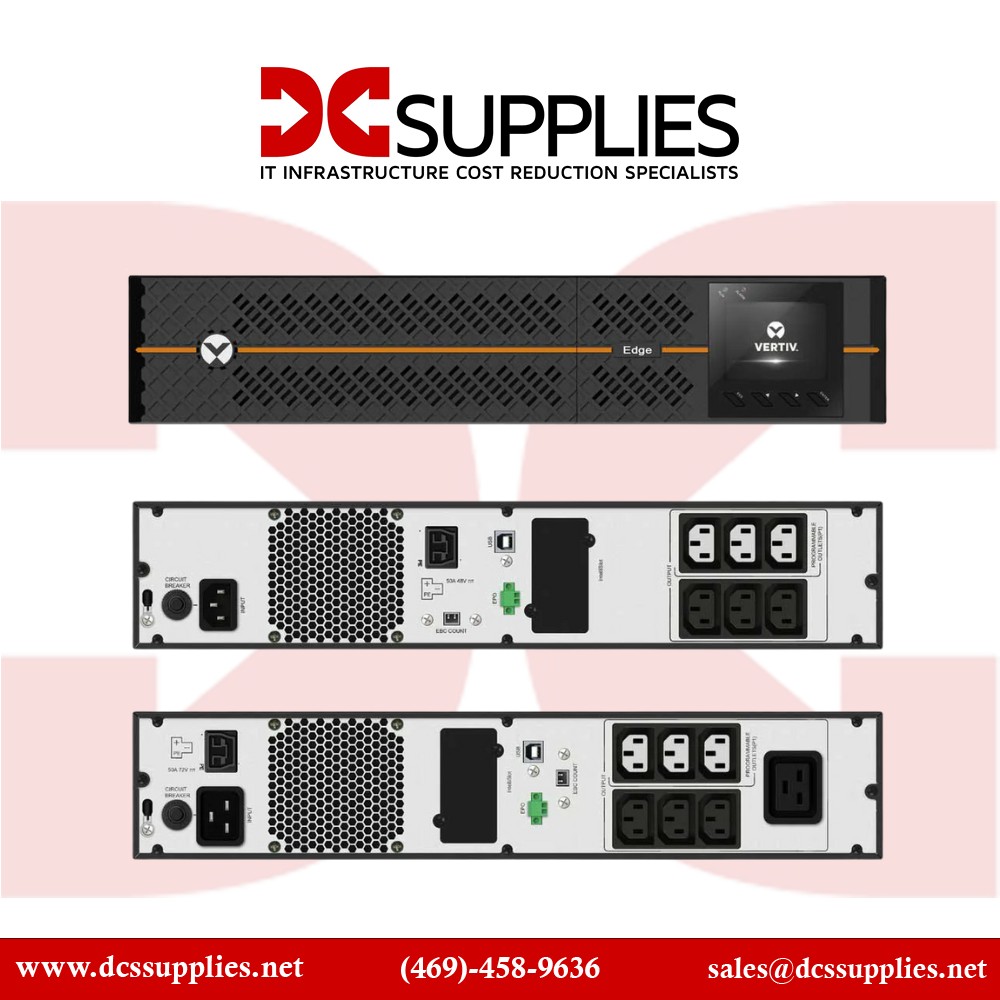

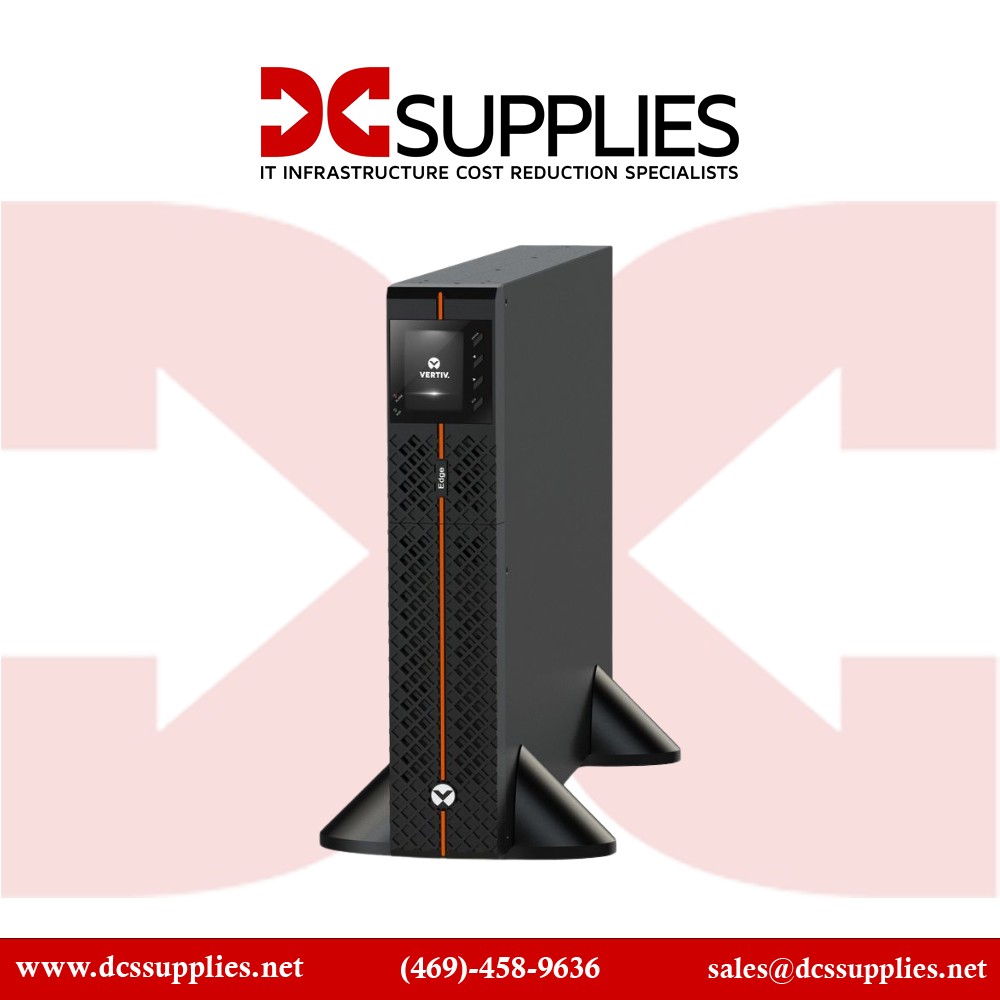

Vertiv EDGE-2200IRT2UXL Edge 2200VA/1980W 230V Ups
Overview :
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
Specification :
| Product Name |
Edge 2200VA/1980W 230V Ups |
| Product Type |
Line-interactive UPS |
| Phase |
Single Phase |
| Receptacle Type |
IEC 60320 C13 IEC 60320 C19 |
| Product Family |
EDGE |
| Backup / Run Time (Half Load) |
14 Minute |
| Backup / Run Time (Full Load) |
4.40 Minute |
| Load Capacity (VA) |
2200 VA |
| Load Capacity (Watt) |
1980 W |
| TAA Compliant |
No |
| Energy Star |
No |
| Product Color |
Black |
| Receptacle Detail |
6 x IEC 60320 C13 1 x IEC 60320 C19 |
| Rack Height |
2U |
| Input Voltage Range |
144 V AC - 290 V AC |
| Form Factor |
Rack/Tower |
| Waveform Type |
Pure Sine Wave |
| Hot Swappable |
Yes |
| Battery Chemistry |
Lead Acid |
| Input Frequency |
65 Hz |
| Battery Size |
12V |
| Battery Capacity |
7000 mAh |
| USB |
Yes |
| Maximum Operating Temperature |
104°F (40°C) |
| Number of Batteries |
6 |
| Battery Characteristics |
Valve-regulated, Non-spillable |
| DC System Voltage |
72 V DC |
| USB (HID Compliant) Port |
Yes |
| Storage Temperature |
-13°F (-25°C) - 131°F (55°C) |
| Transfer Time |
4 ms |
| Typical Battery Recharge Time |
3 Hour |
| Height |
3.5" |
| Width |
17.2" |
| Depth |
24.8" |
| Alarm |
Yes |
| Circuit Breaker |
Yes |
| Status Indicators |
LCD Display |
| Product Model |
EDGE-2200IRT2UXL |
| Product Line |
EDGE |
| Sound Emission |
45 dB |
| Color Family |
Black |
