Detailed Specifications

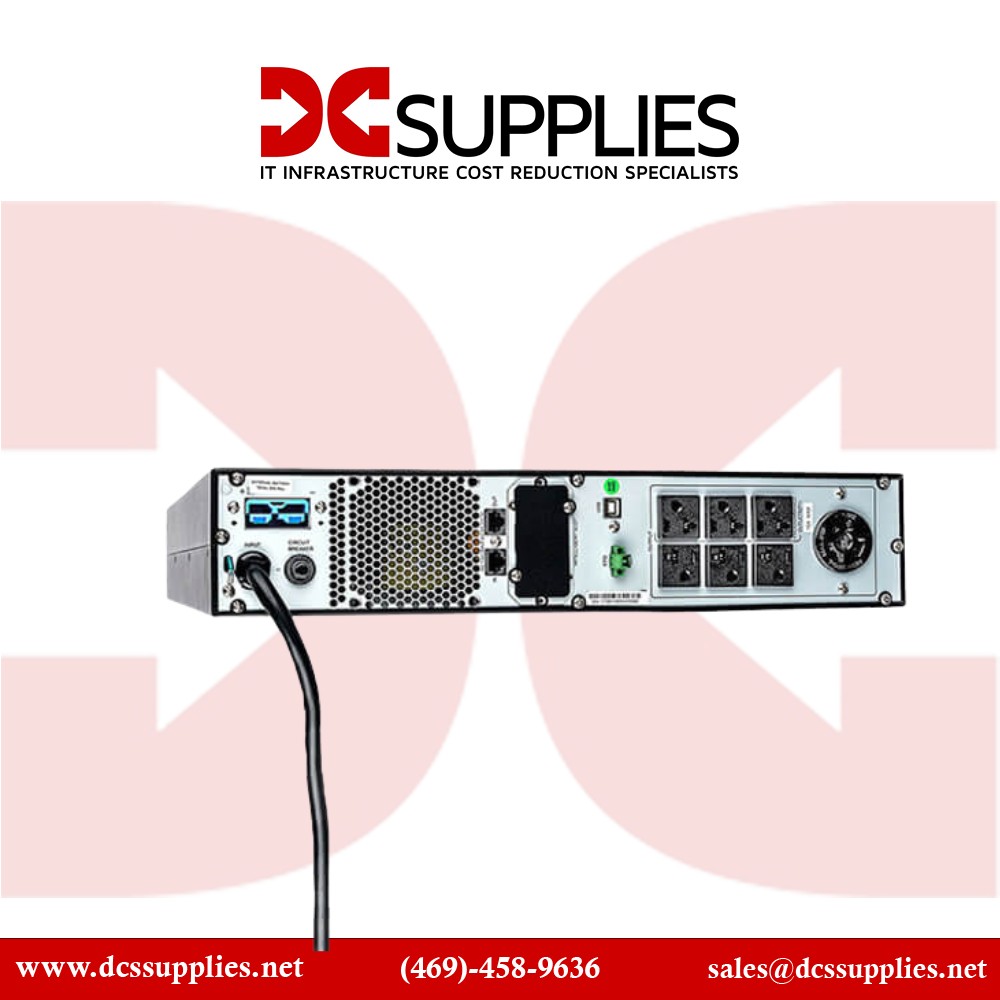

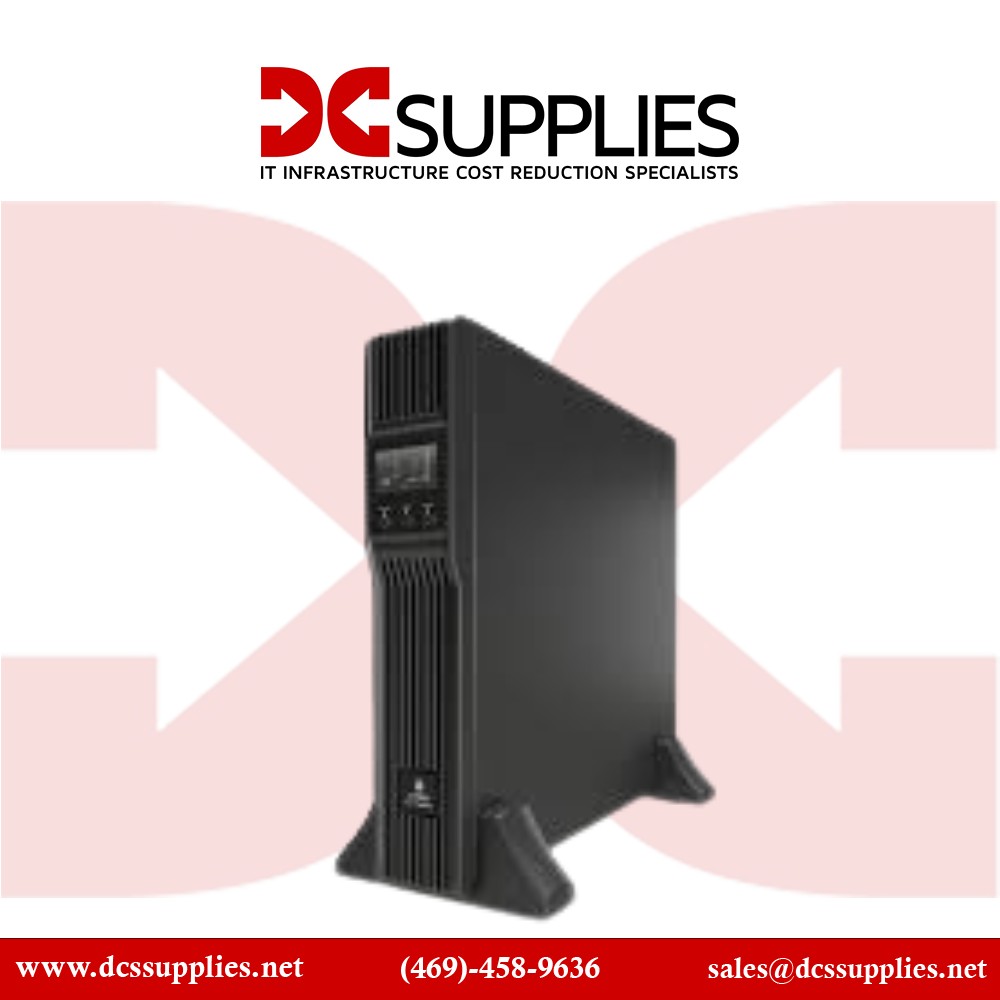

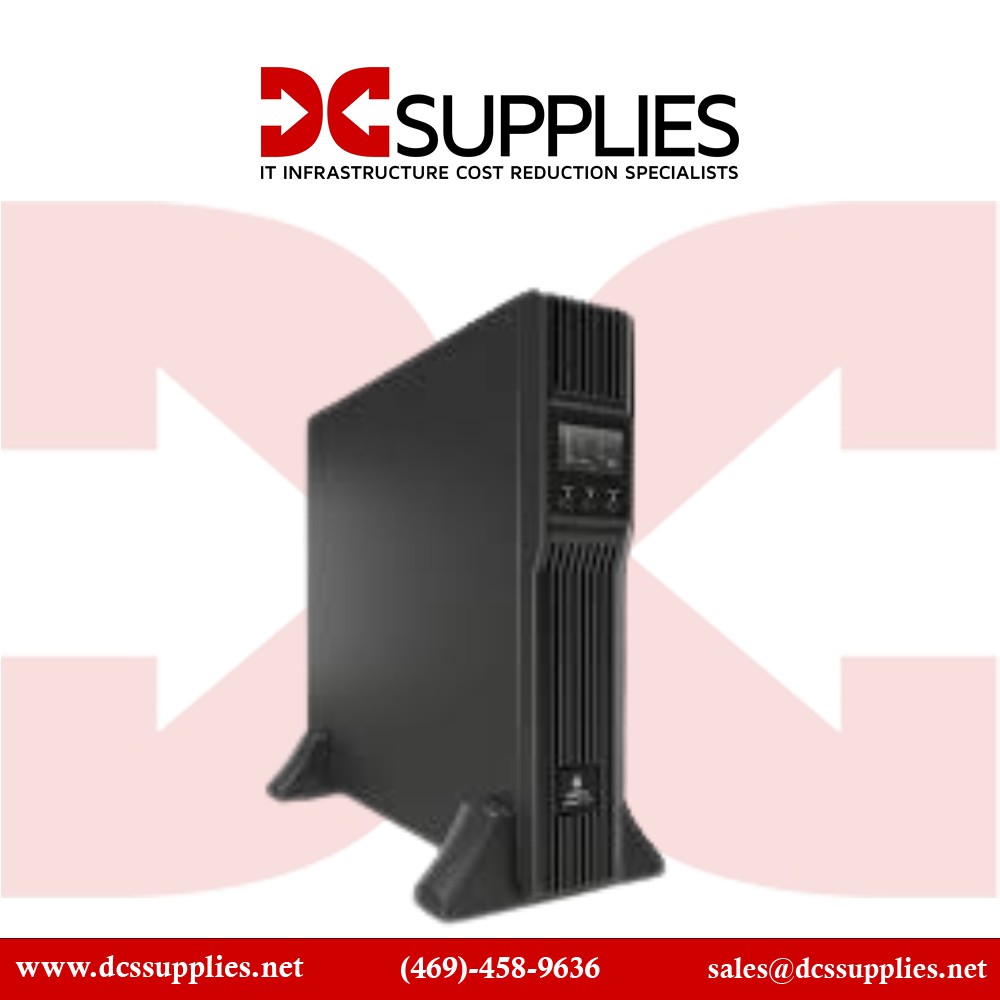

Vertiv PSI5-2200RT120N Liebert PSI5 UPS - 2200VA Line Interactive, Rackmount
Overview :
The Vertiv Liebert PSI5 UPS, 2200VA 1920W, is designed to support and safeguard media closets, small racks, active power factor correction (PFC) power supplies, conventional power supplies and other critical electronics. This Smart UPS provides reliable protection from power disturbances for smart automation systems, computers, high-end gaming PCs/consoles, entertainment centers, cash registers and other equipment that is part of schools, healthcare facilities and other edge businesses. With up to 13 minutes of battery backup time at half load and 4 minutes at full load, this reliable system allows ample time for an orderly shutdown during a power outage. A rotating LCD display makes the readout easy to see in both rack and tower configurations providing real time information regarding the smart UPS status and operating conditions. Vertiv backs the Liebert PSI5 UPS with a 2-year, no hassle, advanced replacement warranty to ensure simple UPS replacement. Includes Liebert Network Communication Interface Card (IS-UNITY-SNMP)
Specification :
| Product Name |
Vertiv Liebert PSI5 UPS - 2200VA Line Interactive, Rackmount, with |
| Product Type |
Line-interactive UPS |
| Receptacle Type |
NEMA 5-15/20R
NEMA 5-20R
|
| Product Family |
PSI5 |
| Backup / Run Time (Half Load) |
13 Minute |
| Backup / Run Time (Full Load) |
4 Minute |
| Load Capacity (VA) |
2200 VA |
| Load Capacity (Watt) |
1920 W |
| Replaceable Battery |
Yes |
| Energy Star |
Yes |
| Backup / Run Time (With Optional Battery) |
26 Minute |
| AVR |
Yes |
| Number of Battery & Surge Outlets |
6 |
| Receptacle Detail |
3 x NEMA 5-15/20R
4 x NEMA 5-20R
|
| Rack Height |
2U |
| Plug / Connector Type |
NEMA 5-20P |
| Form Factor |
Rack/Tower |
| Network Management |
SNMP/HTTP Remote Monitoring |
| Waveform Type |
Pure Sine Wave |
| Hot Swappable |
Yes |
| Input Voltage |
120 V AC |
| Battery Chemistry |
Lead Acid |
| Environmentally Friendly |
Yes |
| Maximum Operating Temperature |
104°F (40°C) |
| Battery Characteristics |
Valve-regulated |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
| Storage Relative Humidity |
20% - 90% |
| Storage Temperature |
41°F (5°C) - 120°F (48.9°C) |
| Transfer Time |
6 ms |
| Typical Battery Recharge Time |
4 Hour |
| Height |
3.5" |
| Width |
17.2" |
| Depth |
24.8" |
| Alarm |
Output Overload
Low Battery
Replace Battery
Abnormal Input Voltage
|
| Product Series |
PSI5 |
| Dataline Protection |
RJ-45 |
| Product Model |
PSI5-2200RT120N |
| Surge Energy Rating |
1372 J |
