Detailed Specifications

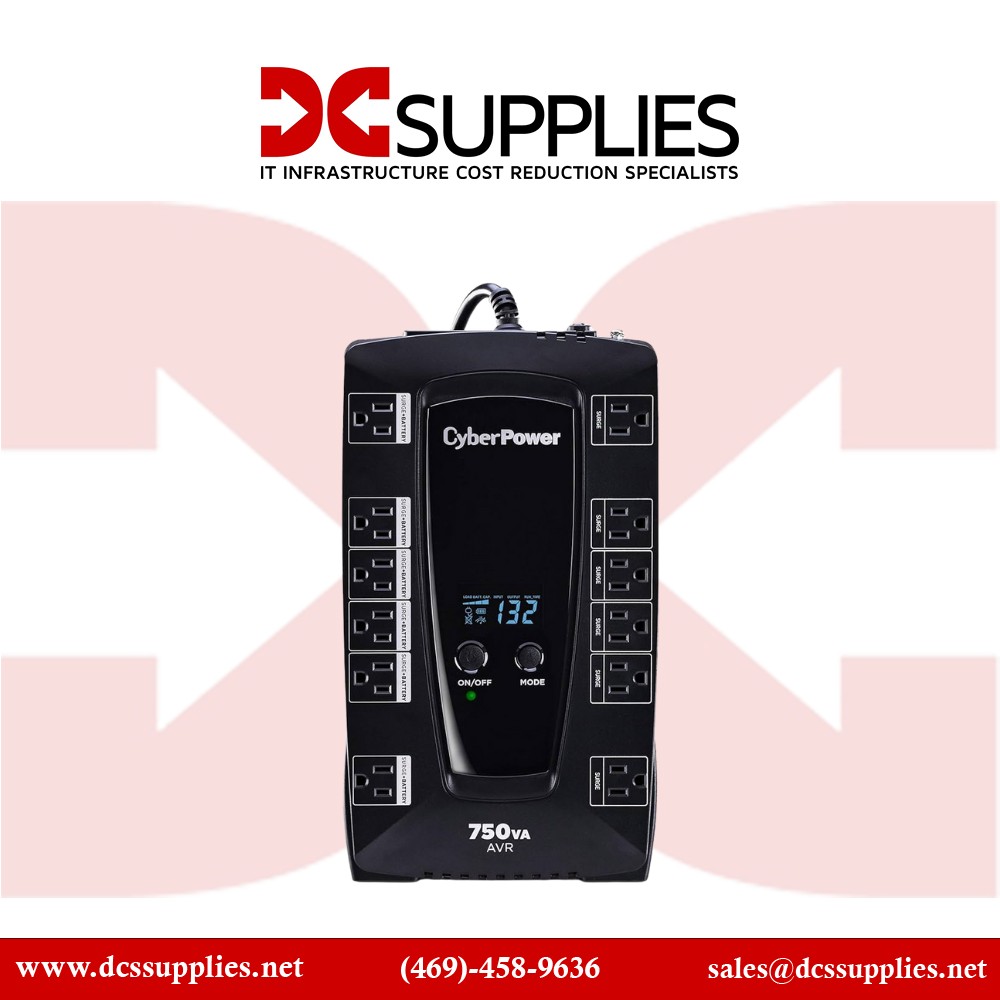

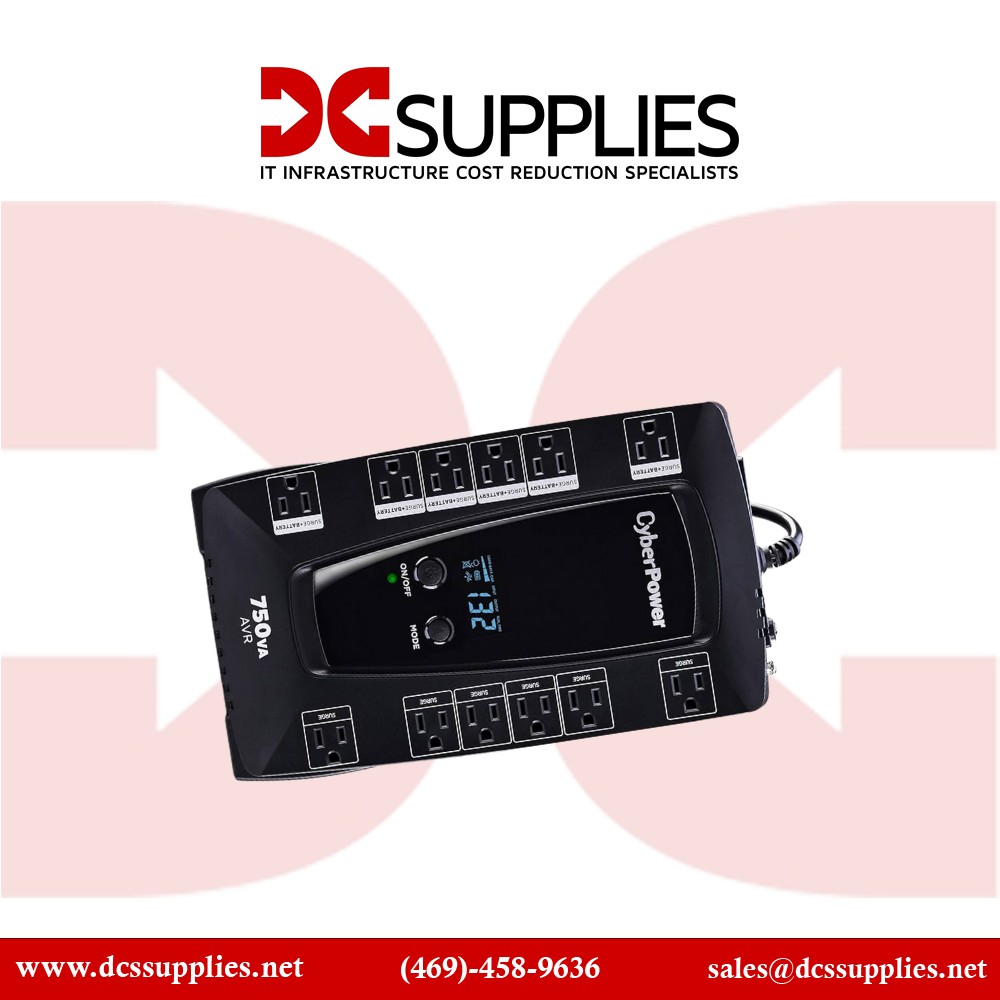

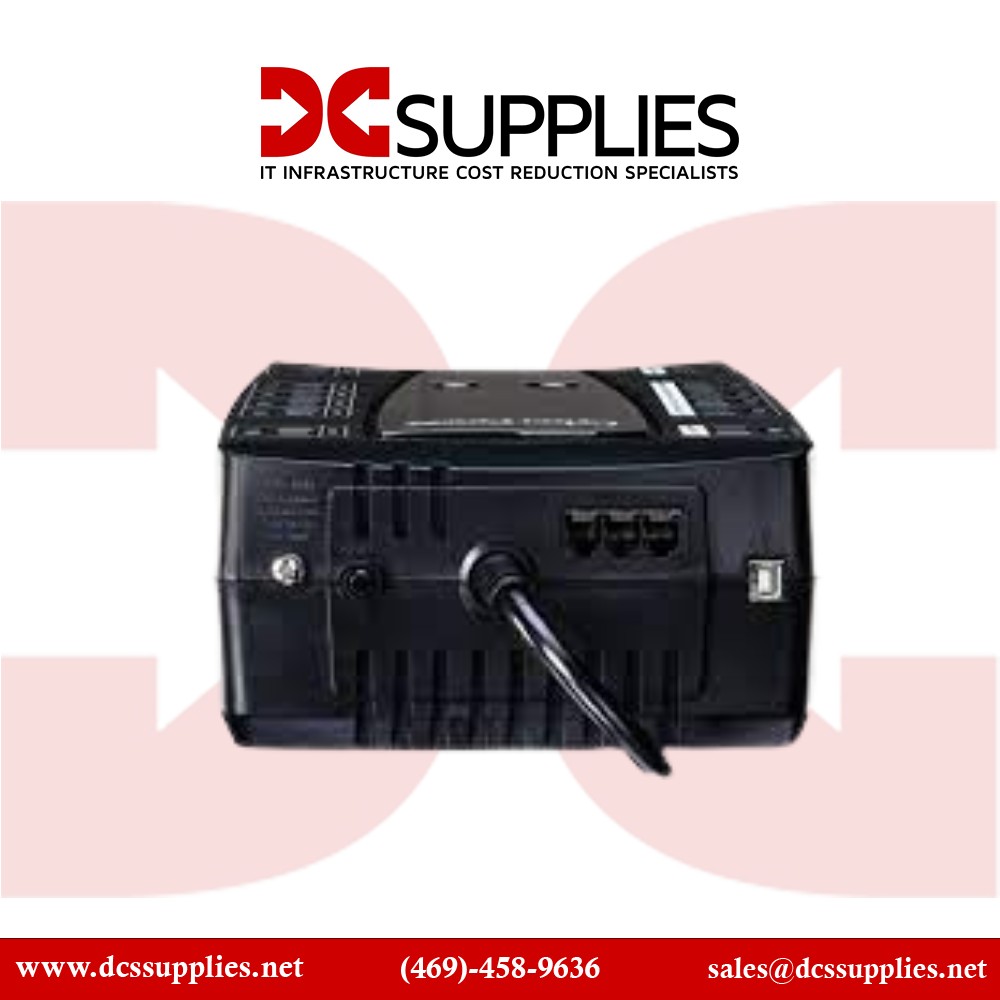

CyberPower AVRG750LCD Intelligent LCD UPS System
Overview :
A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee. Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Specifications :
| Product Name |
750VA/450W Simulated Sine Wave UPS LCD AVR 12 Outlets/USB Port/RJ11 3-Year |
| Product Type |
Line-interactive UPS |
| Receptacle Type |
NEMA 5-15R |
| Product Family |
Intelligent LCD UPS |
| Backup / Run Time (Half Load) |
7.60 Minute |
| Backup / Run Time (Full Load) |
2.50 Minute |
| Load Capacity (VA) |
750 VA |
| Replaceable Battery |
Yes |
| Energy Star |
No |
| AVR |
Yes |
| Number of Battery & Surge Outlets |
6 |
| Number of Surge-only Outlets |
6 |
| Load Capacity (W) |
450 W |
| Plug / Connector Type |
NEMA 5-15P |
| Input Voltage Range |
90 V AC - 148 V AC |
| Form Factor |
Compact |
| Waveform Type |
Simulated Sine Wave |
| Hot Swappable |
No |
| Input Voltage |
120 V AC |
| Battery Chemistry |
Lead Acid |
| Input Frequency |
60 Hz |
| Battery Size |
12V |
| Environmentally Friendly |
Yes |
| Battery Capacity |
7000 mAh |
| USB |
Yes |
| Maximum Operating Temperature |
104°F (40°C) |
| Number of Batteries |
1 |
| Battery Characteristics |
Maintenance-free |
| EMI / RFI Noise Filter |
Yes |
| AVR Range |
Boost +10% / Buck -10% |
| Energy Saving |
GreenPower UPS™ Bypass Design |
| USB (HID Compliant) Port |
Yes |
| Maximum Operating Elevation |
6562 ft |
| Maximum Storage Elevation |
50000 ft |
| Operating Humidity |
0% - 90% |
| Storage Temperature |
5°F (-15°C) - 113°F (45°C) |
| Typical Battery Recharge Time |
8 Hour |
| Receptacle Detail |
12 x NEMA 5-15R |
| Country of Origin |
China |
| Height |
7" |
| Width |
12.2" |
| Depth |
3.5" |
| Output Frequency |
60 Hz |
| Alarm |
On Battery
Low Battery
Overload
Fault
|
| Product Series |
Intelligent LCD UPS |
| Dataline Protection |
RJ-11 |
| Load Capacity |
750 VA/450 W |
| Product Model |
AVRG750LCD |
