Detailed Specifications
VYB-00001 3 85″ 4K IPS LCD MonitorTouch Display - TAA Compliant

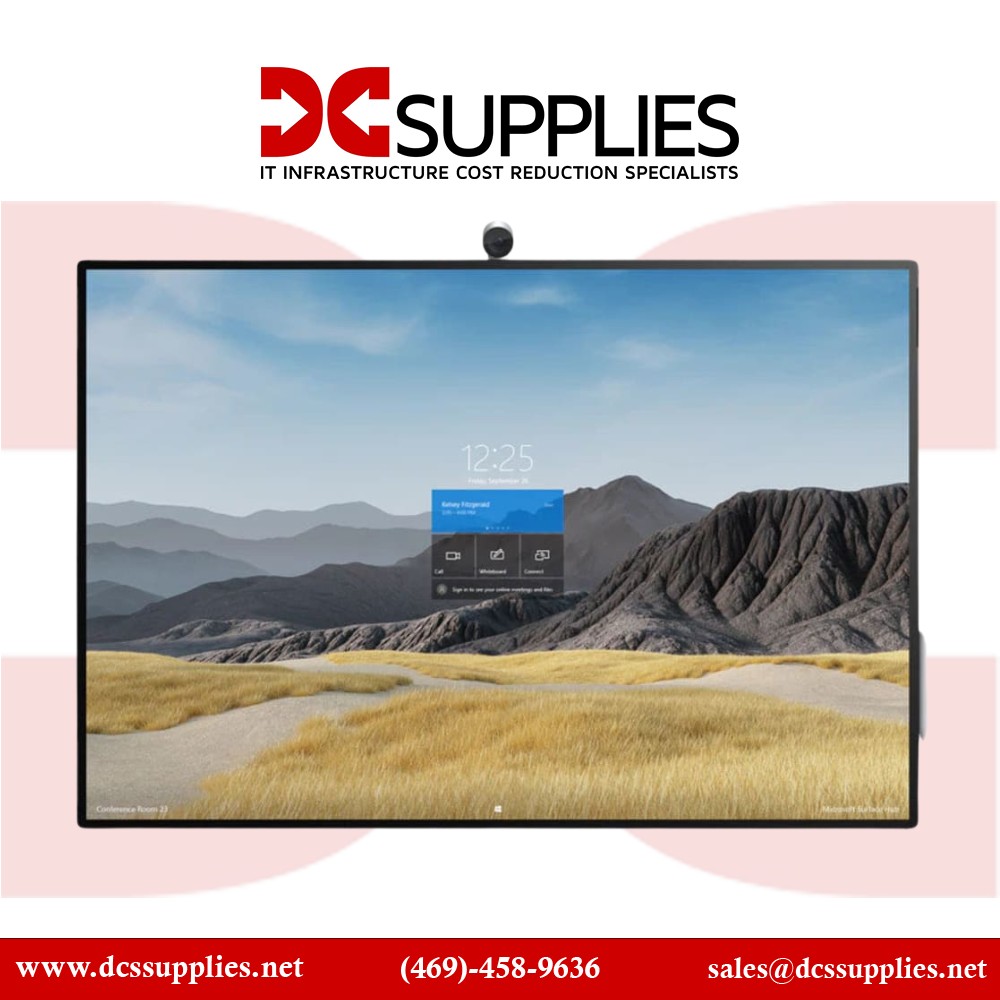

The MicrosoftSurface Hub 3 85″ (Part Number VYB-00001) is a premium collaboration canvas designed to elevate team meetings, hybrid collaboration, and interactive visual planning in modern enterprises. Featuring an anti-glare 85-inch PixelSense 4K IPS LCD Monitordisplay, it supports up to 20 simultaneous touch points and comes complete with dual active pens and a modular compute cartridge. Certified for MicrosoftTeams Rooms, and fully TAA-compliant, this sleek digital board is engineered for boardrooms, executive briefing centers, campus collaboration zones, or immersive training environments.
Features
Built around a powerful modular Intel Core i5 compute cartridge, the Surface Hub 3 enables enterprise-class performance with flexibility for future upgrades. Pre-installed with Windows 11 IoT Enterprise×and configurable to Windows 11 Pro or Enterprise×the 85″ model integrates seamlessly into managed IT environments and supports firmware and device management via MicrosoftEndpoint Manager and Teams Admin Center.
Advanced Options
Its expansive 4K touchscreen features In-cell touch with 20-point input and dual active-pen inking, providing an ultra-responsive writing and drawing experience with virtually no latency. Voice clarity is ensured by a dual 8-element MEMS microphone array, while 3-way stereo speakers deliver clear, room-filling audio. The built-in Surface Hub Smart Camera, with a 136-degree horizontal field of view, framing logic, and auto-zoom, ensures every participant×remote or onsite×feels connected. Designed with a precision-machined aluminum frame and mineral-composite resin casing, the device supports wall and mobile stand mounting. It is engineered for durability, modular serviceability, and ease of installation in large meeting spaces or flexible work environments.
Product Key Features
85″ PixelSense' display with 4K (3840×2160) resolution
In-cell touch supporting up to 20 simultaneous touch points
Dual-pen active inking (Surface Hub Pen 3, Slim Pen compatibility)
Integrated 4K Smart Camera with 136° FOV and automatic framing
Far-field sound with 3-way stereo speakers and MEMS mic arrays
Modular Intel Core i5 compute cartridge, Windows 11 IoT Enterprise (configurable)
Certified for MicrosoftTeams Rooms and TAA-compliant

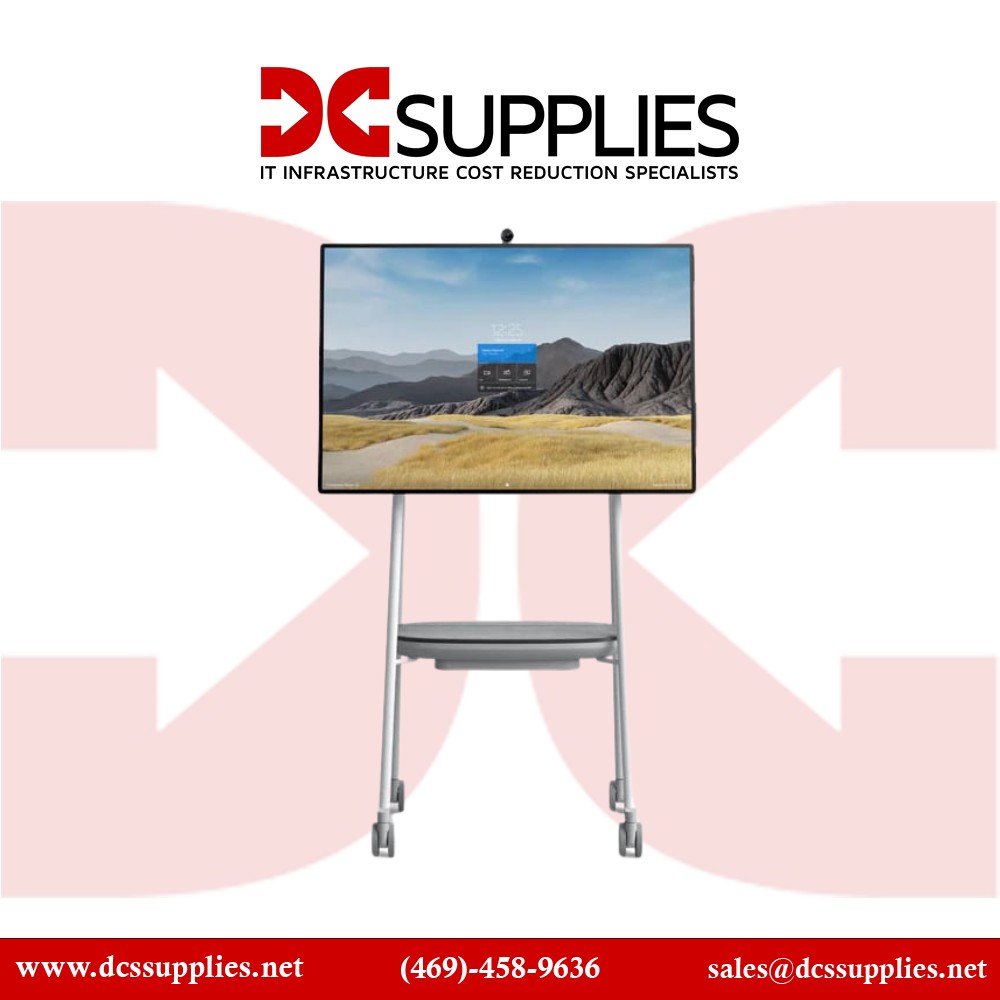

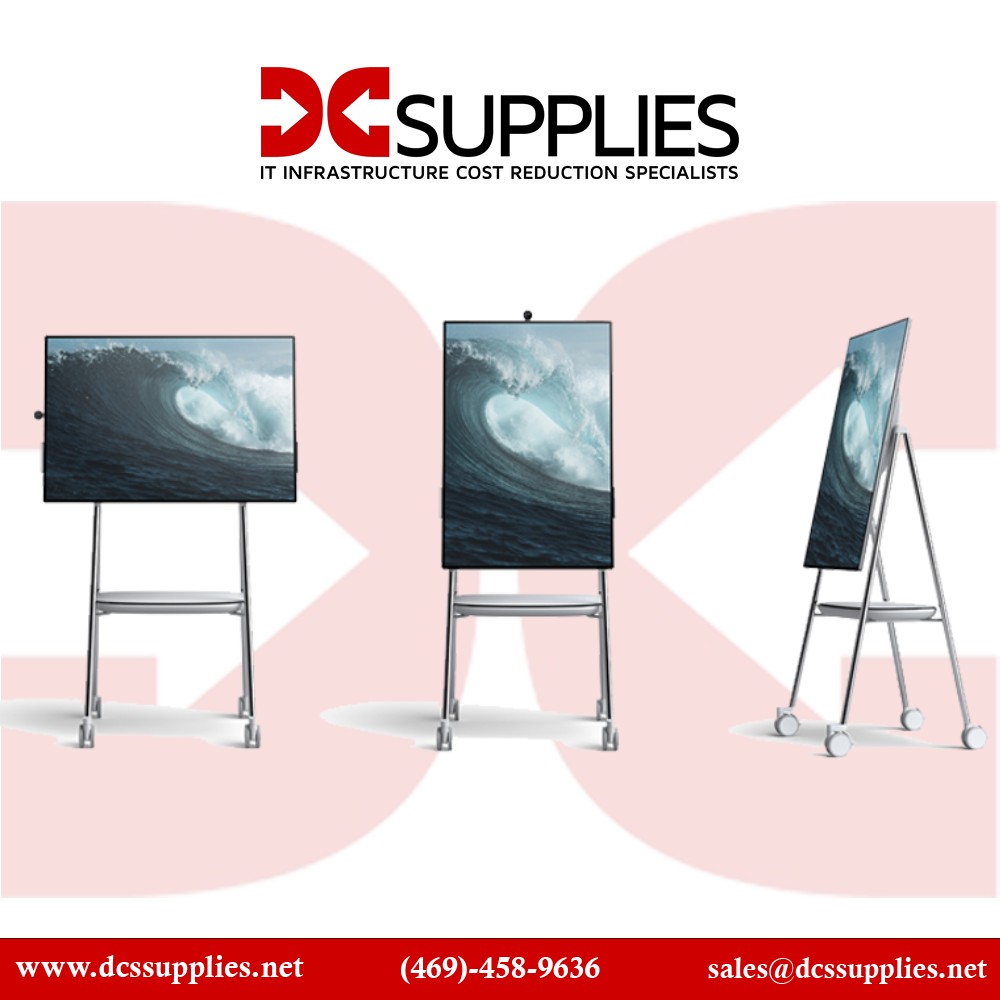

Wall or mobile stand mountable with optional accessories
Reliability & Performance
The Surface Hub 3 85″ is built for continuous enterprise collaboration, combining premium hardware and Microsoftmanagement ecosystem. The modular compute cartridge design enables upgrades without replacing the entire device, helping future-proof your investment. Its Windows environment supports device-wide security policies, role-based access, and remote updates via Intune or Teams Admin Center. Interaction is seamless: the anti-glare 4K touchscreen and active-pen inking enable natural writing and real-time whiteboarding. Remote teams participate fully via crystal-clear audio and the AI-enhanced Smart Camera, which automatically adjusts framing and exposure in real time. The durable chassis meets commercial-grade standards and is serviceable via user-replaceable modules, making servicing straightforward while minimizing downtime.
Key Features (Bullet List)
85-inch 4K (3840×2160) PixelSense IPS display
20-point multi-touch with dual active-pen support
Core i5 modular compute cartridge (Windows 11 IoT Enterprise)
Integrated 4K Smart Camera (136° field of view)
Stereo speakers + dual 8-element MEMS microphones
In-cell touch tech with palm rejection
Certified Teams Rooms experience, TAA compliant
Wall or mobile installation options
One-touch meeting join and wireless cast support
Specifications :
Product Specifications
| Specification | Details |
|---|
| Model / Part Number | Surface Hub 3 85″ (VYB-00001) |
| Display Size | 85 inches |
| Panel Type | PixelSense' IPS LCD Monitor |
| Resolution | 4K UHD (3840×2160) |
| Touch Support | 20 simultaneous touch points |
| Pen Support | Dual active pens (Hub Pen 3, Slim Pen compatible) |
| Memory / Storage | 32 GB RAM, 512 GB SSD |
| Compute Module | Intel Core i5 (modular cartridge) |
| Operating System | Windows 11 IoT Enterprise (configurable to Windows 11 Pro/Enterprise) |
| Audio System | 3-way stereo speakers (4 front-facing mid-range, 2 front-facing tweeter, 1 rear bass drivers), 8-element MEMS mic array |
| Smart Camera | 4K, 136° FOV, auto framing, fixed focus, privacy cover, tilt adjustment |
| Connectivity | USB-C (3 ports), USB-A (1 port), HDMI (1 input), Mini DisplayPort (1 output), RJ45 Gigabit Ethernet, Wi-Fi 5 (IEEE 802.11ac a/b/g/n/ac compatible), Bluetooth 5.1 |
| Orientation Support | Landscape (portrait not supported on 85″) |
| Wireless Cast | MicrosoftTeams Cast compatible |
| Dimensions (H×W×D) | 44.5 in × 77.1 in × 3.4 in (1130 mm x 1959 mm x 85.6 mm) |
| Weight | Approx. 185 lbs (84 kg) |
| Form Factor | Wall or mobile stand mountable (mounts sold separately) |
| Security / Management | TPM 2.0, Intune & Teams Admin Center support |
| Compliance | TAA certified, RoHS |
| Warranty | 1-Year limited hardware warranty |
