Detailed Specifications

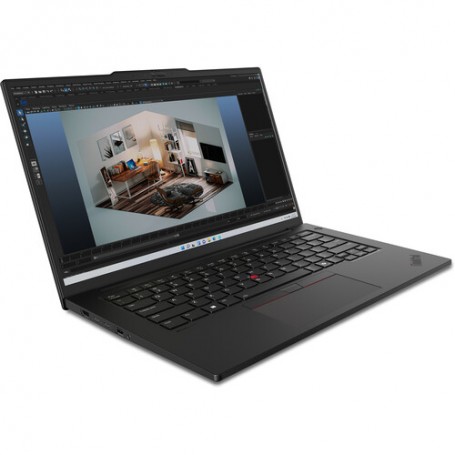

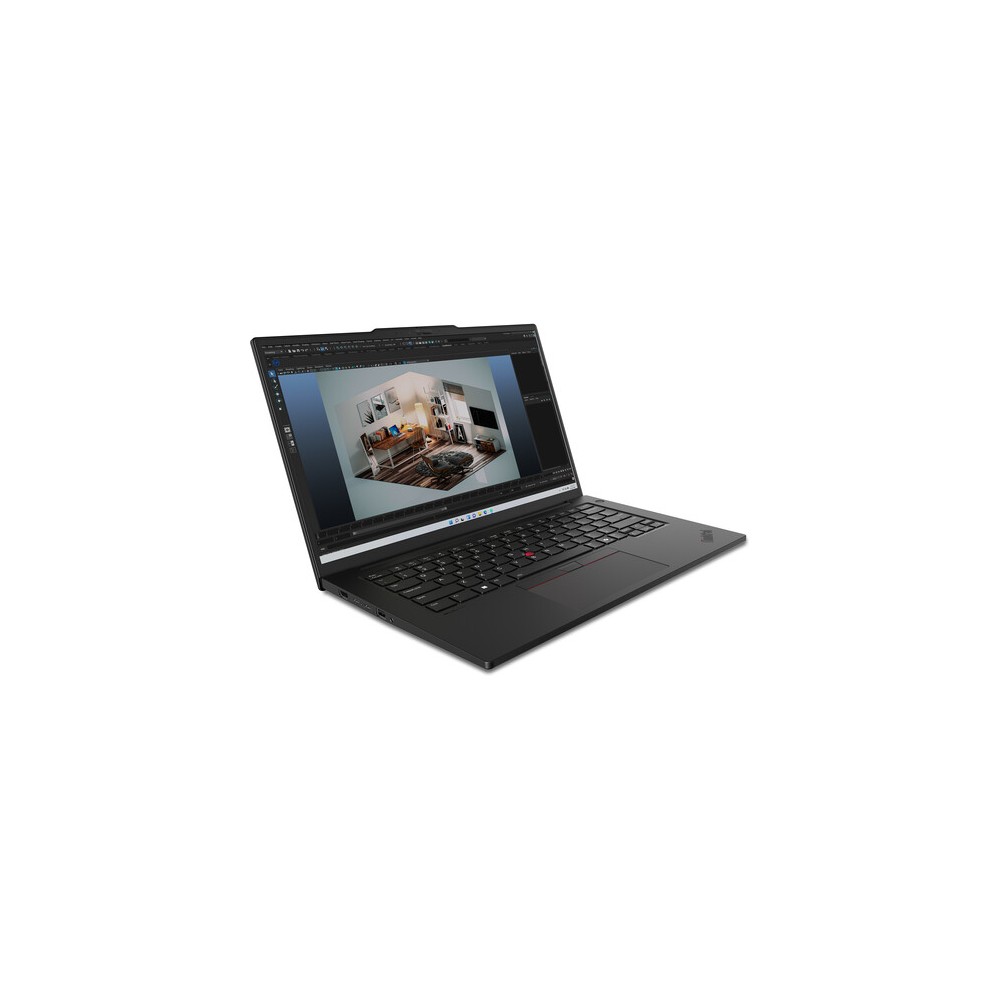

21G20023US 14.5″ ThinkPad P14s Gen 5 Mobile Workstation (Black)
The LenovoThinkPad P14s Gen 5 (model 21G20023US) is a lightweight, enterprise-class 14.5″ Mobile Workstation built on Intel Core Ultra 7 155H architecture. Equipped with 16 GB DDR5-5600 SO-DIMM memory and a 512 GB PCIe Gen 4 NVMe SSD (with Opal encryption), this system balances mobility, performance, and manageability. The 14.5″ WUXGA (1920×1200) anti-glare display delivers sharp visuals at 300 nits brightness.
Features
Ideal for professionals in engineering, data science, and field work, the P14s Gen 5 combines a slim chassis (~1.61 kg) with powerful features like discrete NVIDIA RTX 500 Ada graphics (4 GB or integrated Arc GPU options), full connectivity including USB-A, dual Thunderbolt 4 ports, HDMI, Gigabit Ethernet, and enterprise-grade security. It's designed for secure, on-the-go workflows, hybrid work, and regulated environments.
Advanced Options
Powered by Intel's Meteor Lake-H Ultra 7 155H CPU (P-cores up to 4.80 GHz; E-cores to 3.80 GHz), this Mobile Workstation delivers robust multi-threaded performance in a compact form factor. Available with optional NVIDIA RTX 500 Ada GPU (50 W TGP), it supports hardware-accelerated compute and graphics workloads while preserving battery life. Dual SO-DIMM slots support up to 96 GB DDR5 memory, offering field-serviceable upgrades and enhanced longevity.
Product Key Features
Intel Core Ultra 7 155H (up to 4.80 GHz P-cores / 3.80 GHz E-cores, 24 MB L3 cache)
16 GB DDR5-5600 SO-DIMM (dual-channel, upgradeable)
512 GB PCIe Gen 4 NVMe M.2 SSD (Opal hardware encryption)
14.5″ WUXGA (1920×1200) anti-glare panel, 300 nits brightness
Discrete NVIDIA RTX 500 Ada graphics (4 GB GDDR6)
Reliability & Performance
The P14s Gen 5 is exceptionally serviceable and built to enterprise durability standards. Components like RAM, SSD, battery, display, keyboard, and even fans can be swapped out in the field×minimizing downtime. Thermal management has been upgraded to reduce throttling and maintain performance under sustained load. While battery life is moderate×reflecting its workstation-class hardware×the efficient components help balance performance and portability.
Key Features
Intel Core Ultra 7 155H (Meteor Lake-H architecture)
16 GB DDR5-5600 (dual-channel, upgradeable)
512 GB PCIe Gen 4 NVMe SSD with encryption
14.5″ WUXGA IPS display (300 nits)
NVIDIA RTX 500 Ada GPU (4 GB)
Specifications :
Product Specifications
| Specification | Details |
|---|
| Model Number | 21G20023US |
| Category | ThinkPad P14s Gen 5 Mobile Workstation |
| Processor | Intel Core Ultra 7 155H (P-cores up to 4.80 GHz, E-cores up to 3.80 GHz) |
| Memory | 16 GB DDR5-5600 SO-DIMM (2×8 GB, upgradeable to 96 GB) |
| Storage | 512 GB PCIe Gen 4 NVMe M.2 SSD (Opal encryption) |
| Display | 14.5″ IPS WUXGA (1920×1200), anti-glare, 300 nits |
| Graphics | NVIDIA RTX 500 Ada (4 GB GDDR6) or Intel Arc integrated GPU |
| Ports | 2× Thunderbolt 4, 2× USB-A 3.2 Gen 1, HDMI, RJ-45 Ethernet |
| Networking | Wi-Fi 6E (AX211), Bluetooth 5.1/5.3 |
| Security Features | dTPM 2.0, fingerprint reader, IR webcam w/privacy shutter, BIOS recovery |
| Dimensions (WxDxH) | ~324 × 219 × 18.5 mm; chassis thickness ~18.5 mm |
| Weight | ~1.61 kg (3.55 lb) |
| Battery & Power | 135 W USB-C adapter; battery choices ~39.3 Wh or 52.5 Wh |
| Build Quality | Durability-rated chassis, easy-field repairable |
