While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVID cables across all PC to KVM and KVM to Console connections

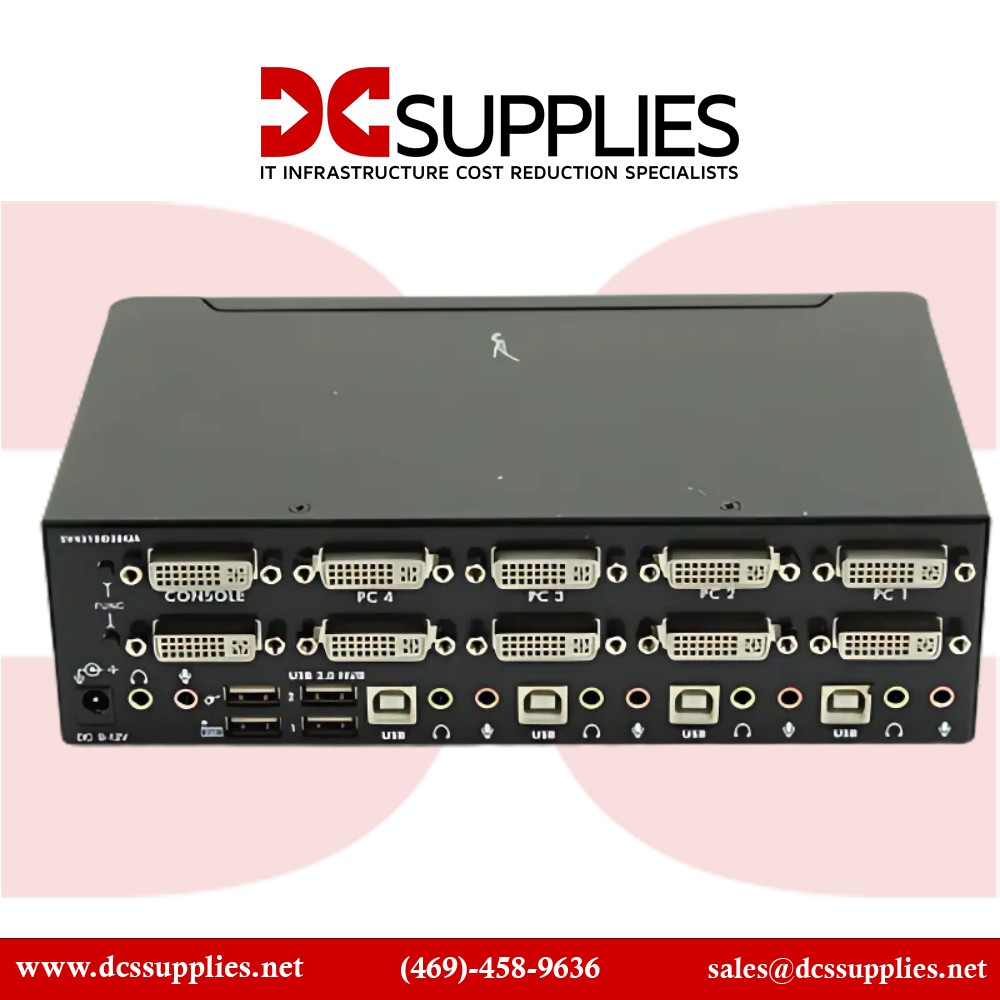

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard, and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers, or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button while maintaining professional-level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
About this item

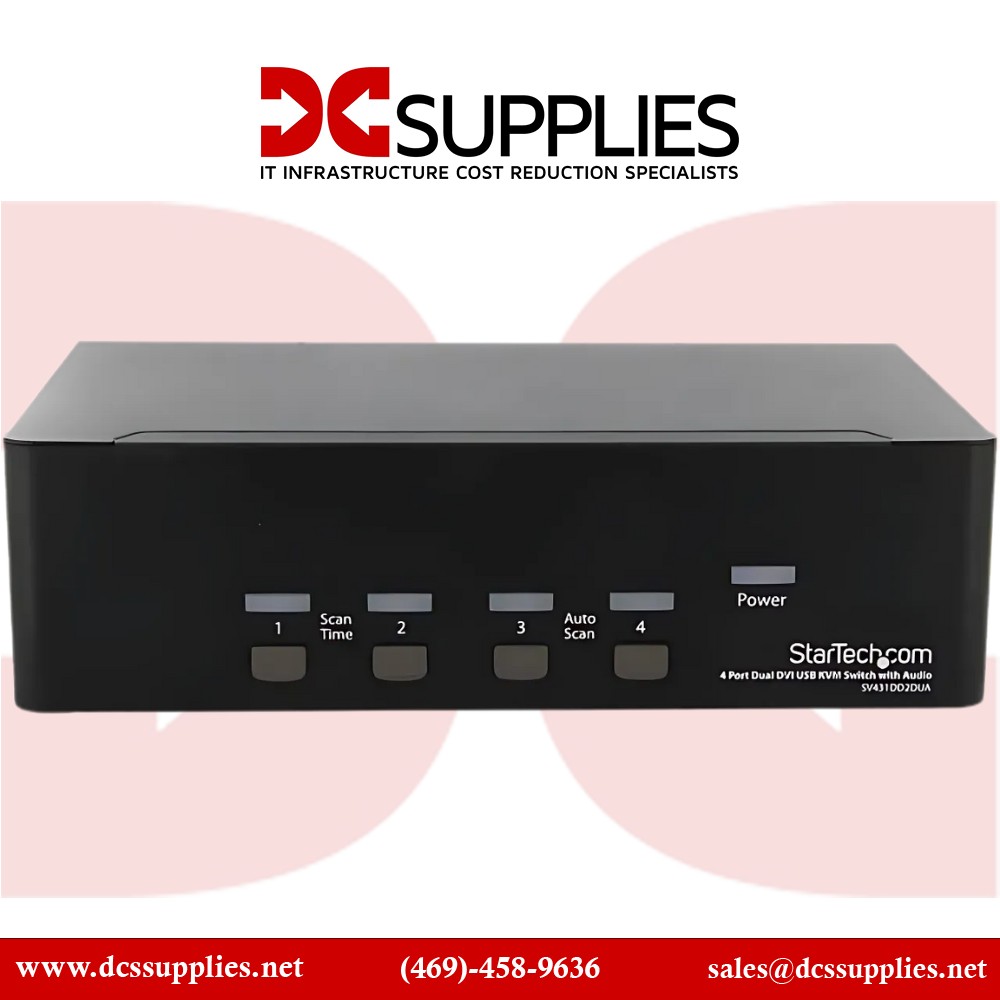

- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
- Audible tone confirms port switching
- Combined or independent switching of audio ports
SPECIFICATIONS:
| Product Name |
4 Port Dual DVI USB KVM Switch with Audio & USB Hub |
| Product Type |
KVM Switchbox |
| Maximum Video Resolution |
2048 x 1536 |
| USB |
Yes |
| DVI |
Yes |
| Number of Computers Supported |
4 |
| Number of Local Users Supported |
1 |
| TAA Compliant |
Yes |
| Input Voltage Range |
110V AC to 240V AC |
| Form Factor |
Desktop |
| Environmentally Friendly |
Yes |
| Graphic Mode |
QXGA |
| Number of USB Ports |
8 |
| Number of DVI Ports |
10 |
| Country of Origin |
Taiwan |
| Height |
2.4" |
| Width |
8.7" |
| Depth |
5.1" |
| Product Model |
SV431DD2DUA |
| Packaged Quantity |
1 |
| Product Color |
Black |
| Input Voltage |
120 V AC
230 V AC
|
