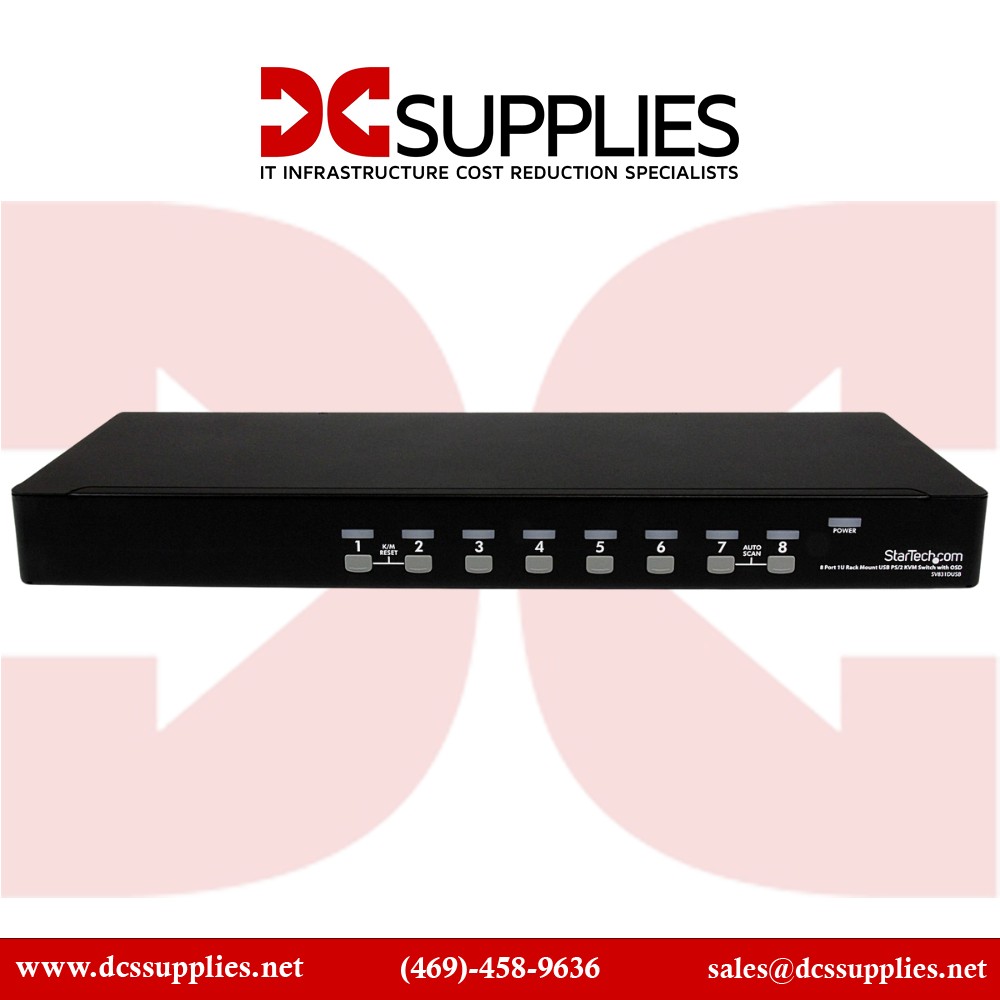

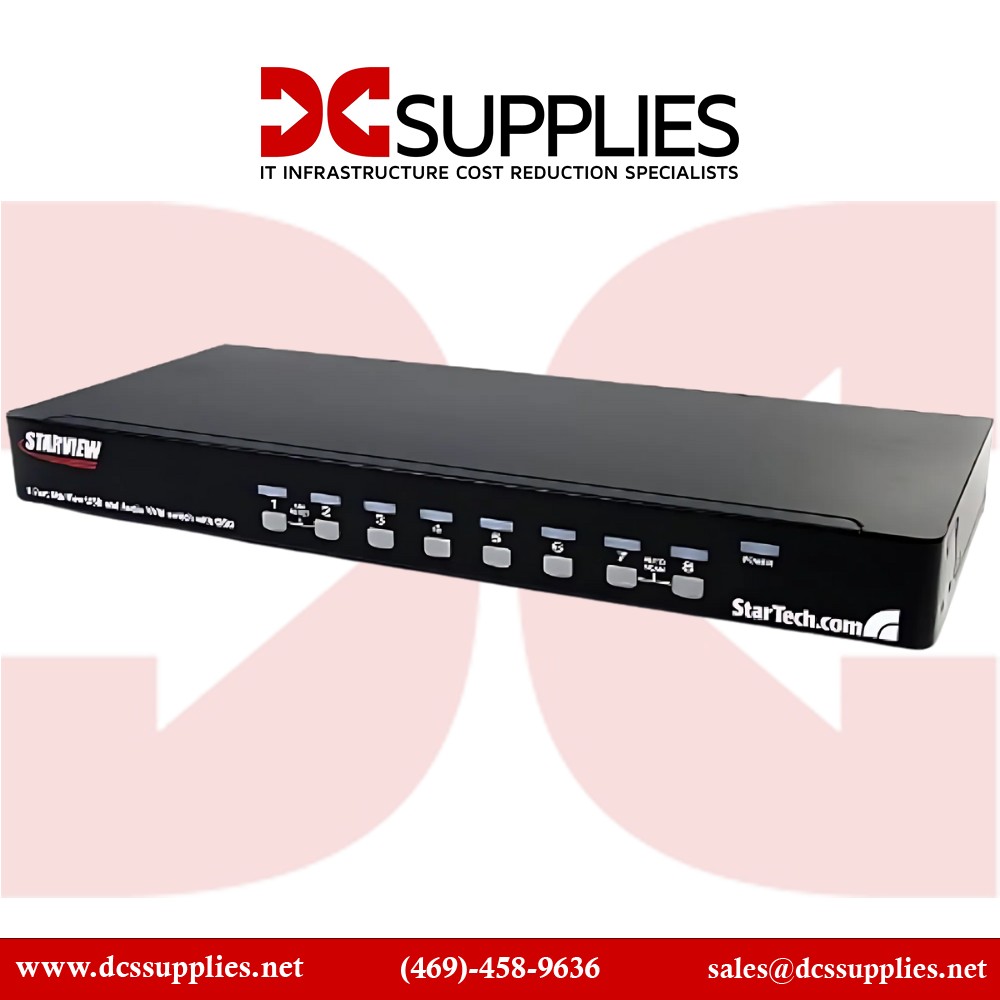

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse, and monitor and features Audio and Microphone ports to switch between audio signals as well as PC ports.

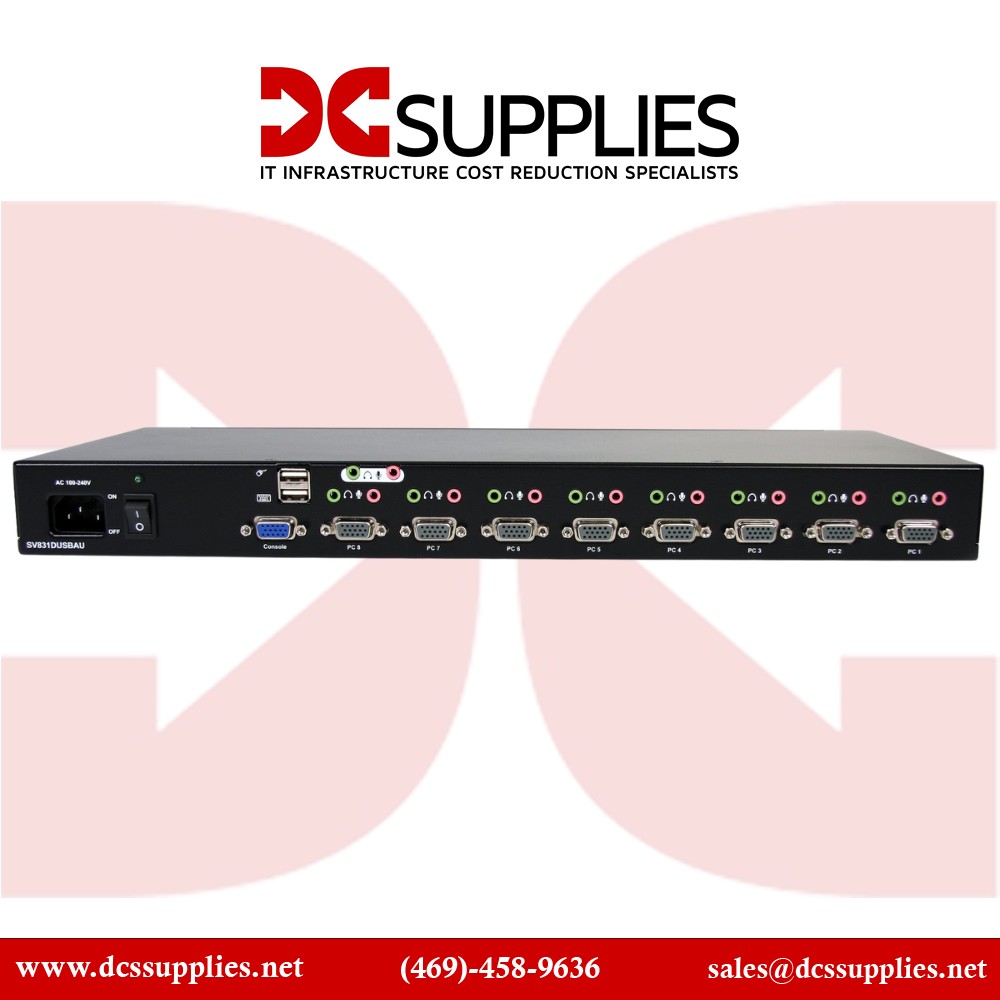

Based on a 1U rack mountable slim form factor design, this 8-Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front-panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Features
- Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
- Rugged, rack-mountable, all-metal 1U chassis
- For use in harsh environments and space-saving cabinets
- Supports Hotkey and front panel push-button switching
- Identify and select computers by names assigned via the OSD menu
- OSD security allows each PC to be password protected
- The auto-scan function automatically selects computers sequentially
- Cascade configuration expands system capability
- USB console interface
- Backed by a StarTech.com 3-year warranty and free lifetime technical support
Specifications:
| Product Name |
8 Port Rackmount USB VGA KVM Switch with Audio |
| Manufacturer Part Number |
SV831DUSBAU |
| Product Type |
KVM Switchbox |
| Maximum Video Resolution |
1920 x 1440 |
| USB |
Yes |
| VGA |
Yes |
| Product Family |
StarView |
| Number of Computers Supported |
8 |
| TAA Compliant |
Yes |
| Input Voltage Range |
110V AC to 240V AC |
| Form Factor |
Rack-mountable
Desktop
|
| Environmentally Friendly |
Yes |
| Number of USB Ports |
2 |
| Number of VGA Ports |
9 |
| Height |
1.8" |
| Width |
21.3" |
| Depth |
7.1" |
| Rack Height |
1U |
| Product Line |
StarView |
| Packaged Quantity |
1 |
| Daisy Chain Supported |
Yes |
| Product Color |
Black |
| Input Voltage |
120 V AC
230 V AC
|
