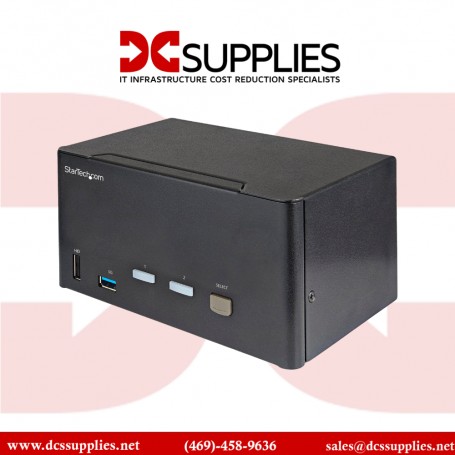

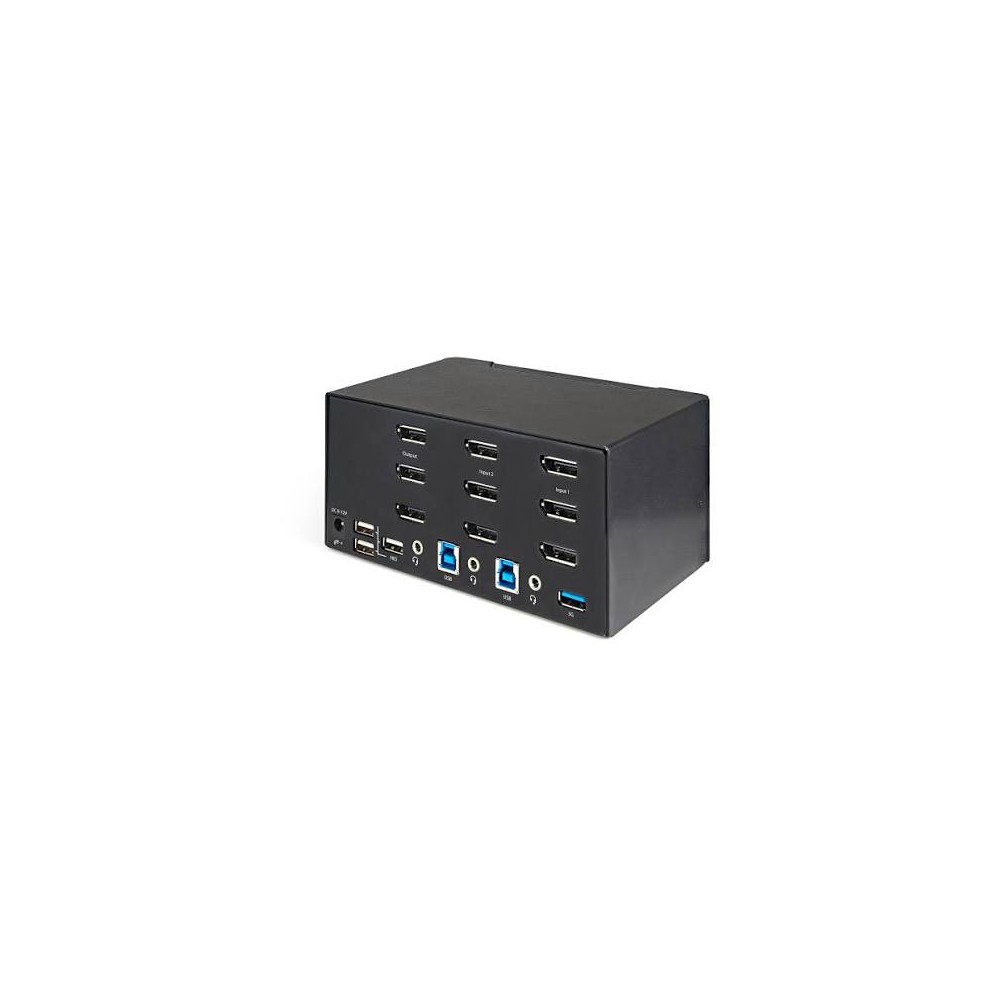

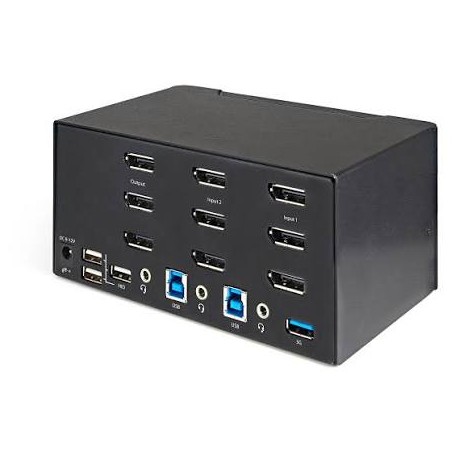

StarTech SV231TDPU34K

2-Port Triple-Monitor DisplayPort KVM Switch (4K @ 60 Hz, USB 3.0 Hub)

The SV231TDPU34Kis a premium 2-port DisplayPort KVM switch that empowers professionals×especially in CAD, video editing, or control room environments×to manage two systems across three 4K monitors with a single keyboard, mouse, audio setup,and USB-based peripherals.

Features

This robust 2-port switch outputs three simultaneous 4K60 signals per system using DP 1.2, catering seamlessly to high-resolution, multi-display workspaces. It integrates a USB 3.0 hub for sharing high-speed devices like external storage, saving cable changes between systems. Audio support covers both digital and analog needs.

Advanced Options

Switching is flexible via front panel buttons, programmable hotkeys or timer-based auto-scan mode, ensuring efficient access to each system. Its all-metal construction, TAA compliance, and lifetime support make it well-suited for enterprise, broadcast, or government deployments. Compatible across Windows, macOS and Linux

Product Key Features

• • Triple 4K Displays - Supports 3 × 3840 × 2160 @ 60 Hz via DisplayPort 1.2

  • Dual Computer Control - Switch between two systems using one console setup

  • Integrated USB 3.0 Hub - 2 × USB 3.0 + 4 × USB 2.0 HID ports for sharing peripherals

  • Digital & Analog Audio - DP digital and 3.5 mm analog audio support

  • Front Panel & Hotkey Switching - Includes auto-scan (3/8/15/30 s)

  • Sturdy Steel Chassis - Durable, TAA-compliant enclosure suited for pro environments

Reliability & Performance

Built for high-intensity environments, the SV231TDPU34K features a steel housing that resists EMI and supports stable performance. It handles up to 36 W power draw and operates between 0-40 °C with 80% non-condensing humidity. With an MTBF of ~156,000 hours, it's designed for long-term reliability.

Key Features :

• • Dual-computer, triple-HD 4K60 DisplayPort 1.2 support

  • 2 × USB 3.0 & 4 × USB 2.0 HID ports for versatile peripheral sharing

  • Digital and analog audio switching (DP+3.5 mm)

  • Push-button, hotkey, and auto-scan switching options

  • Durable steel chassis, TAA compliant

Specification	Details
Model Number	SV231TDPU34K
Product Type	2-Port Triple-Monitor DisplayPort KVM Switch
Display Support	3 × 3840 × 2160 @ 60 Hz per system (DisplayPort 1.2, HDR10, HDCP 2.2)
Computers Supported	2
Display Inputs	6 × DP 1.2 Female (3 per system)
Console Outputs	3 × DP 1.2 Female
USB Hub	2 × USB 3.0 ports (Gen 1)
USB HID Ports	4 × USB 2.0 (keyboard/mouse)
Audio Support	Digital via DP + 2 × 3.5 mm analog in/out
Switching Controls	Front panel buttons, hotkeys, auto-scan (3/8/15/30 s)
Power Supply	INCLUDED universal AC (100-240 V to 12 V DC, 3 A)
Power Consumption	Typ. 36 W
Operating Temp/Humidity	0-40 °C; 0-80 % RH non-condensing
Dimensions (W×D×H)	~160 × 100 × 98 mm (6.3″ × 3.9″ × 3.9″)
Weight	~0.85 kg (1.9 lb)
MTBF	~156,000 hours
Compliance	TAA, CE, FCC, RoHS, HDCP 2.2
