Black Box 2-Port Secure KVM Switch DP USB

Black Box

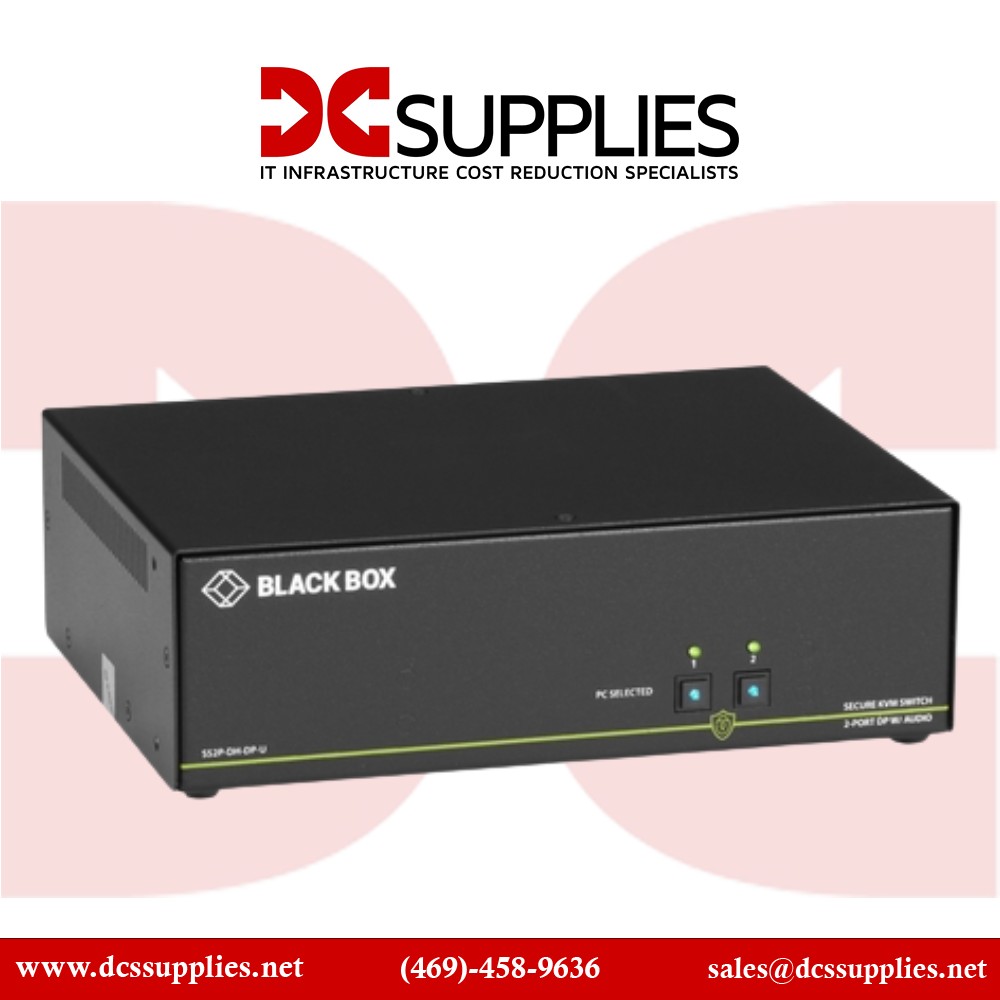

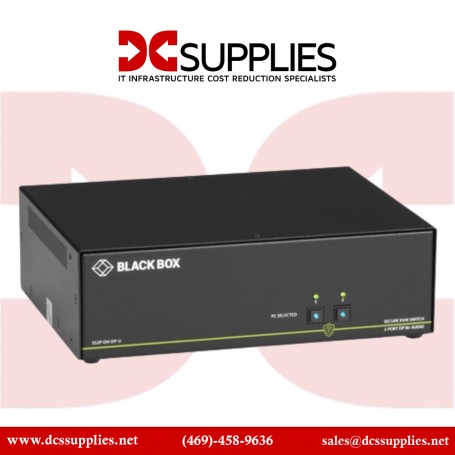

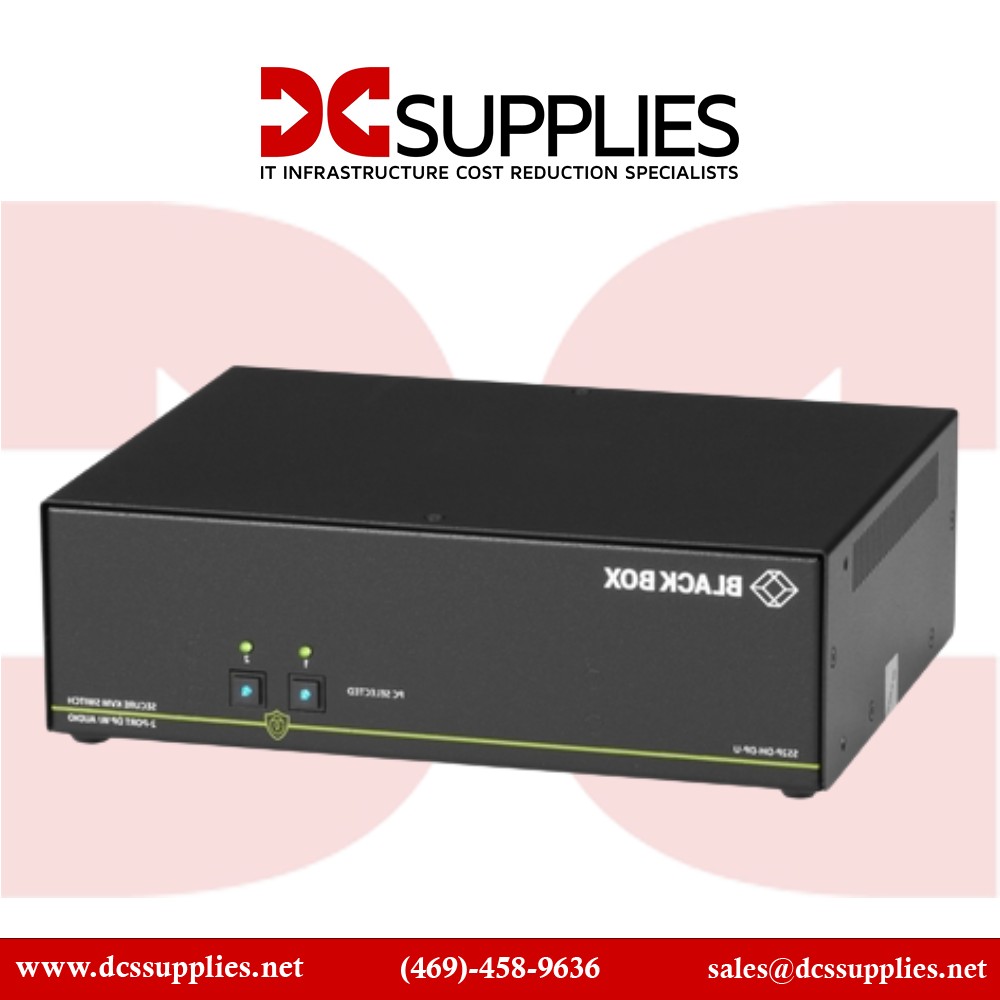

SS2P-DH-DP-U Secure 2-Port DisplayPort USB Kvm Switch

The Black Box SS2P-DH-DP-U Secure Kvm Switch implements NIAP Protection Profile 3.0 certification, making it ideal for ultra-secure environments such as defense, government, and intelligence. With support for two DisplayPort computer inputs and a dual-head display configuration, this switch allows you to control two systems using a single keyboard, mouse, and dual DisplayPort monitors. It also supports stereo audio and USB HID peripherals, while ensuring complete isolation between connected hosts to prevent data leakage.

Features

Anti-tamper features include non-reprogrammable firmware, automatic internal cache clearing, chassis intrusion detection, and tamper-evident seals. The switch also supports secure EDID learning to emulate monitor signals and prevent cross-system exposure via DDC channels.

Advanced Options

Designed to enable secure switching between two DisplayPort-equipped systems, the SS2P-DH-DP-U Kvm Switch supports DisplayPort resolutions up to 4K at 30 Hz (3840×2160). It isolates each data channel to eliminate the risk of cross-communication. The switch's USB and audio peripherals operate strictly in a one-way, host-to-peripheral direction, fulfilling NIAP PP3.0 specifications for ultra-secure peripheral sharing devices.

Product Key Features

• NIAP PP3.0 certified secure Kvm Switch (2-port dual-head DP + USB)

• Supports dual-monitor DisplayPort output per host (up to 4K @ 30 Hz)

• Full-channel isolation, anti-tamper seals, and fixed firmware protection

• Secure EDID emulation and one-way keyboard/mouse/data path

• Optional CAC port and stereo audio support

---

Reliability & Performance

This Black Box switch is engineered for continuous operation in sensitive IT environments. It ensures firm isolation of systems via mechanical, electrical, and optical data barriers. Protected firmware prevents unauthorized access or modification, while cache clearing and forced keyboard data wiping ensure no residual data remains after switching. Its reliable design supports long-term usage in classified or regulated networks.

Key Features (Bullet List)

• 2-port dual-head DisplayPort secure switching

• USB HID (keyboard/mouse) one-way emulation

• Stereo audio switching support

• CAC port for authentication devices

• Front-panel tactile buttons with LED indicators

Specifications :

Product Specifications

Specification	Details
Model Number	SS2P-DH-DP-U
Product Type	Secure DisplayPort Kvm Switch (2-port)
Security Certification	NIAP PP3.0 cryptographic profile
Video Support	Dual-head DisplayPort, up to 4K @ 30 Hz
USB Support	USB HID keyboard/mouse emulation (unidirectional)
Audio Support	Stereo audio available
CAC Interface	Configurable Common Access Card port
Isolation	Mechanical and electrical isolation per port
Tamper Protection	Chassis seals, intrusion sensor, fixed-ROM
Switching	Front-panel buttons with LED indicators
Power Input	12 VDC inlet, 100-240 VAC adapter
Operating Temp	0 °C to 40 °C
Form Factor	Desktop chassis (~8.8″ × 2.6″ × 6.7″)
Compliance	TAA-compliant SKU
Warranty	3-Year Double Diamond' enterprise warranty
