Black Box KV6224DPH KVM Switch 4 Port Dual-Monitor DP & HDMI 4K 60HZ USB 3 Hub Audio

Black Box

KV6224DPH 4-Port Dual-Monitor Kvm Switch DP/HDMI, 4K 60 Hz, USB 3.0 Hub, Audio

The Black Box KV6224DPH is a high-performance Kvm Switch designed to streamline productivity by enabling access to four separate computers using just one dual-monitor console. Supporting mixed DisplayPort 1.2 and HDMI 2.0 graphics cards, this device delivers true Ultra HD 4K resolution at 60 Hz on both displays. Sharing peripherals is effortless thanks to the built-in USB 3.0 hub, while independent audio switching offers full multimedia control per computer.

Features

Tailored for multi-system users in industries like broadcast, data centers, finance, and industrial control, the KV6224DPH reduces desktop clutter and maximizes efficiency. Dual-monitor flexibility combined with USB 3.1 support ensures you get both smooth video performance and high-speed peripheral access with minimal setup effort.

Advanced Options

This Kvm Switch accommodates four computers and supports two 4K monitors×regardless of whether the connected systems utilize DisplayPort or HDMI outputs×thanks to its mixed video input support. It delivers crystal-clear video at up to 3840×2160 @ 60 Hz on both displays simultaneously. Black Box True Transparent USB Emulation (TTU) ensures compatibility with advanced USB devices including gaming keyboards and touch mice. The integrated USB 3.0 hub (5 Gbps) automatically switches connected peripherals to the active computer, and independent stereo audio/microphone jacks per port give precise media control per host citeturn0search0turn0search8.

Product Key Features

• Quad-computer access with dual-monitor support (DP 1.2 / HDMI 2.0)

• 4K UHD resolution (3840×2160 @ 60 Hz) on dual displays

• Built-in USB 3.0 hub (2 ports, 5 Gbps) for peripheral sharing

• Independent audio & microphone switching per PC

• True Transparent USB emulation for advanced peripherals

---

Reliability & Performance

Engineered for consistent 24/7 reliability, the KV6224DPH features firmware-upgradability via USB and low power consumption. With transparent USB technology, cross-platform compatibility is seamless across Windows, Linux, and macOS systems. Its robust metal chassis and industrial-grade design minimize failure points, while the Double Diamond' warranty ensures repair or replacement support for a full 2 years. TAA compliance and industry certifications (FCC, CE) make it suitable for secure and regulated installations citeturn0search8turn0search6.

Key Features

• Dual 4K monitor support (HDMI 2.0 / DisplayPort 1.2) @ 60 Hz

• Supports 4 host systems

• USB 3.0 hub for peripheral sharing (5 Gbps)

• TTU for advanced keyboards and mice

• Stereo audio and microphone switching per port

• Front-panel pushbutton and hotkey switching

• Audio/mic freeze control per computer

• Shared USB hub and audio channels

• Firmware update via console USB port

• TAA compliant, FCC/CE approved

Specifications :

Product Specifications

Specification	Details
Model Number	KV6224DPH
Product Type	4-Port Dual-Monitor Kvm Switch
Video Inputs	DisplayPort 1.2 and HDMI 2.0 (mixed)
Max Resolution	3840×2160 @ 60 Hz (per monitor)
Supported Hosts	4 computers
USB Hub Ports	2 × USB 3.0 Type A (5 Gbps)
USB Emulation	True Transparent USB (TTU)
Audio Support	Stereo audio & mic per PC (3.5 mm jacks)
Console Ports	1 × DP + 1 × HDMI + USB Type A Keyboard & Mouse

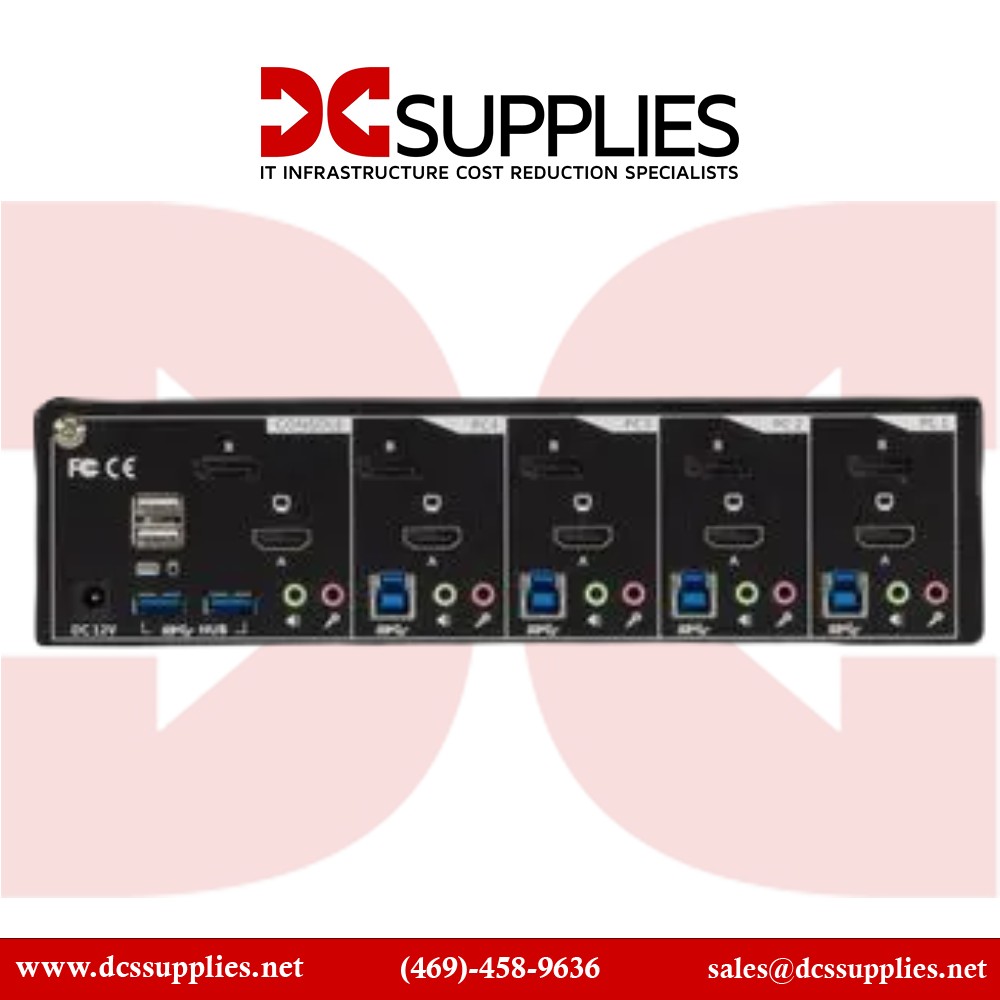

PC Side Connectors	4 × DP, 4 × HDMI, 4 × USB Type B, 8 × 3.5 mm audio/mic
Switching Method	Front-panel pushbuttons, keyboard hotkeys
Firmware Upgrade	USB port on console side
Power Supply	12 V DC, 3 A
Dimensions	2.6″ H × 3.9″ W × 9.9″ D (~6.6 × 10.0 × 25.3 cm)
Weight	~2.6 lb (1.2 kg)
Warranty	2-Year Double Diamond'
Compliance	TAA, FCC, CE
