Black Box KVS4-1004KX 4-Port Secure Pro KM with Audio and CAC View larger
Previous Next

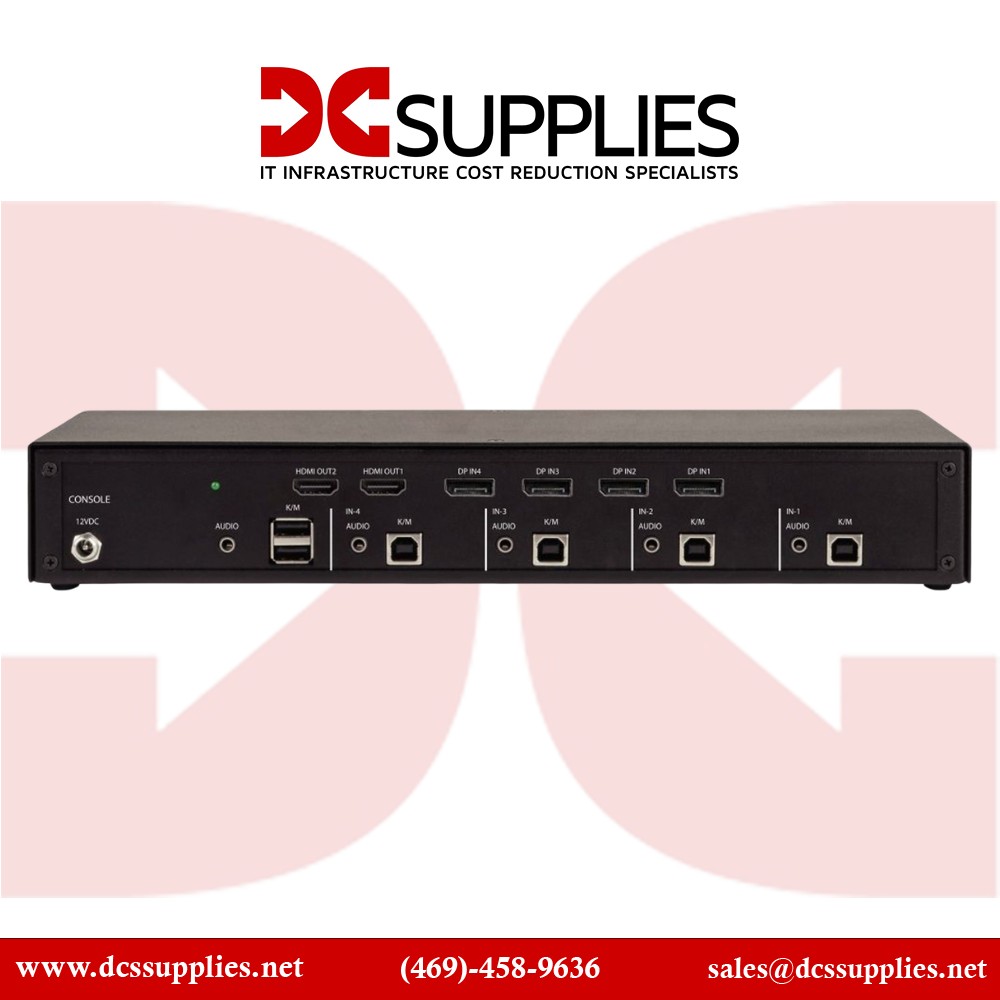

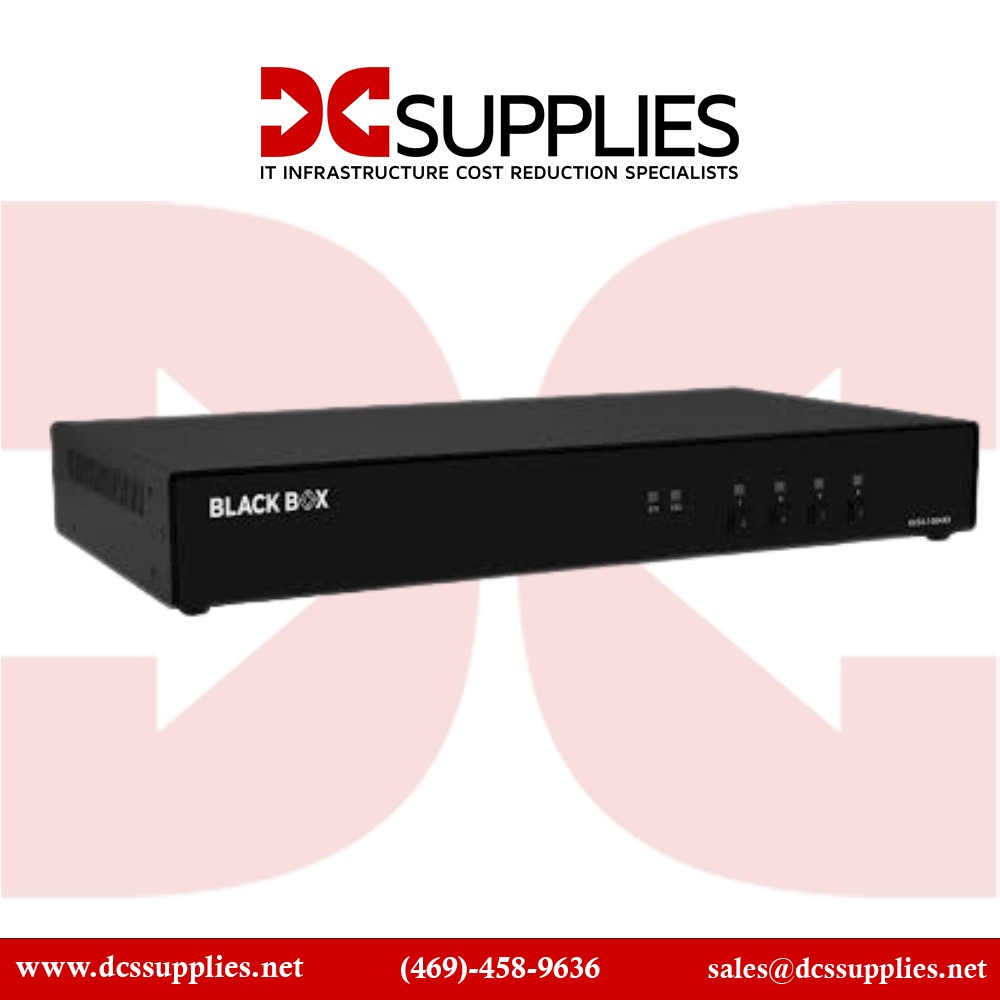

Black Box KVS4-1004KX 4-Port Secure Pro KM with Audio and CAC

New

Highly secure 4-port KM switch with audio and smart-card support
×




  • New

Detailed Specifications

Black Box KVS4-1004KX

Secure Pro KVM – 4-Port with Audio & CAC

The Black Box KVS4-1004KX Secure Pro KVM is a high-assurance 4-port keyboard/mouse (KM) switch engineered for secure, audio-enabled, CAC-capable environments. Designed for government, command-and-control centers, and other security-critical applications, it allows a single operator to manage multiple systems without risking data leakage or intrusion.

Features :

This switch complies with NIAP Protection Profile for Peripheral Sharing Devices Version 4.0, offering the highest level of assurance for peripheral security. With support for USB HID and stereo audio, it empowers users to interact seamlessly with multiple computers using a single set of peripherals. CAC integration further elevates credential-based access in highly regulated environments.

Advanced Options :

The system enforces uni-directional data flow and channel isolation via mechanical, electrical, and optical barriers—plus secure EDID learning—to block data leakage across channels. Built-in anti-tamper mechanisms, chassis intrusion detection, firmware protection, and cache wiping ensure rigorous physical and logical security. TAA compliance and US manufacturing add further assurance for government procurement teams.

Product Key Features

  • NIAP Protection Profile PP 4.0 certified
  • Controls up to 4 PCs with one keyboard/mouse
  • Supports stereo audio and Common Access Card (CAC)
  • TAA-compliant, US-made with tamper protection
  • Uni-directional data flow with EDID learning isolation
  • Includes 3-year Double Diamond™ warranty

Reliability & Performance :

Engineered for resiliency and integrity, the KVS4-1004KX delivers dependable performance with robust physical security measures. Its external locking power connector, durable build, and protected firmware ensure long-term reliability. The included 3-Year Double Diamond™ Warranty and optional extensions provide extensive coverage and peace of mind.

Key Features :

  • NIAP Protection Profile PP 4.0 certified
  • Unified control of 4 PCs via single keyboard/mouse
  • Stereo audio and Common Access Card support
  • TAA-compliant, US-made with tamper protection
  • Uni-directional data flow with secure EDID learning
  • External power with locking connector and strong warranty

Specifications :

SpecificationDetails
Model Number KVS4-1004KX
Brand Black Box
Device Type Secure KM (Keyboard/Mouse) Switch
Port Count 4 Computers, 1 Local User
Audio Support Yes, Stereo (3.5 mm jacks)
CAC Support Yes
USB Ports 8 × USB Type B (PC-side), 3 × USB Type A (console), 1 × USB-A for CAC
Security Compliance NIAP PP 4.0, TAA Compliant
Isolation Features Mechanical, Electrical, Optical, EDID learning
Firmware Protection Yes
Tamper/Evidence Measures Anti-tamper switches, chassis intrusion protection
Power Supply External adapter 12 VDC, locking connector
Dimensions (W × H × D) 12.57" × 1.76" × 6.69" (31.9 × 4.47 × 16.99 cm)
Weight ~4.2 lb (1.9 kg)
Operating Temp. 0°C to 40°C (32°F to 104°F)
Storage Temp. –20°C to 60°C (–4°F to 140°F)
Humidity 0–80% RH non-condensing
