Detailed Specifications

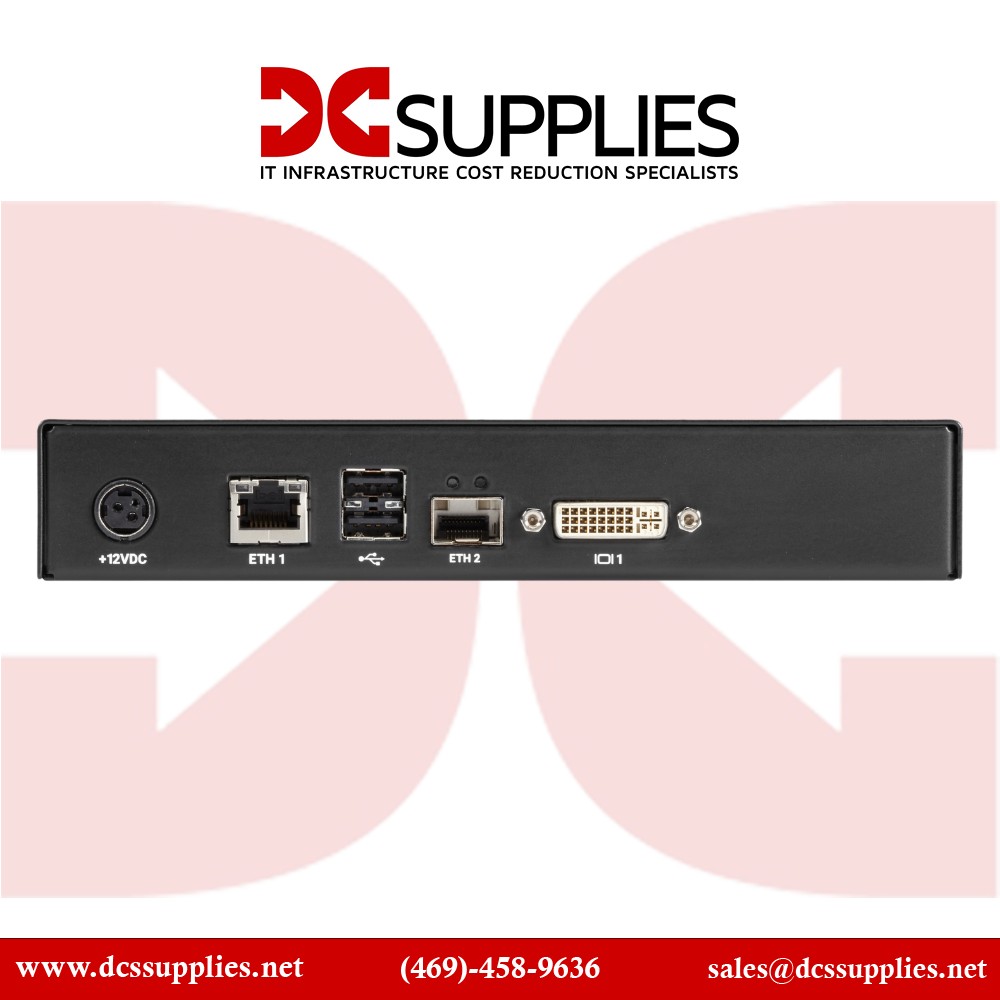

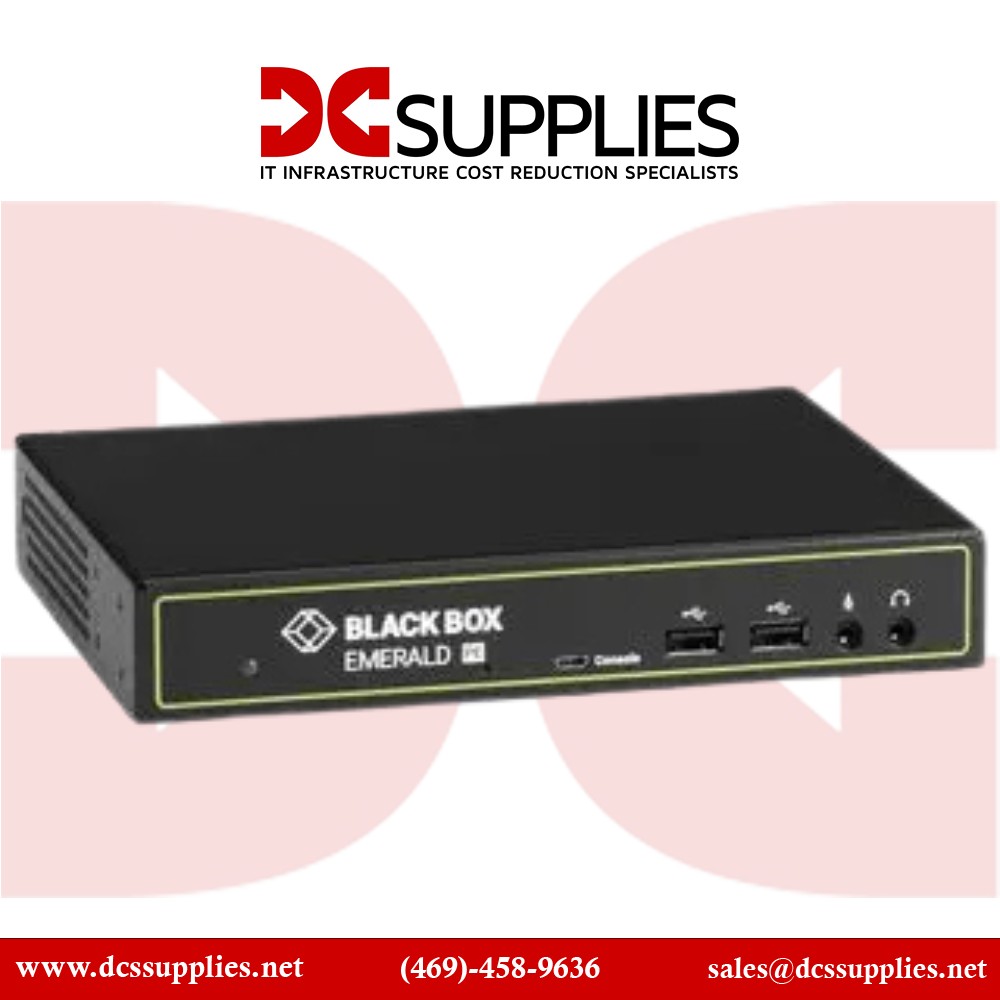

Black Box EMD2000PE-R-P KVM Extender RX VM Access Single-Head PoE DVI-D V-USB 2 Audio
Overview :
Industry-Leading KVM
Emerald® PE PoE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be stored in a corporate data center or in the cloud. This robust solution is easy to deploy on standard corporate networks and even across WANs. PE enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.
Emerald PE supports multiple setups: It allows you to link transmitters and receivers in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Specifications :
Product Name |
KVM Extender RX VM Access Single-Head PoE DVI-D V-USB 2 Audio |
Product Type |
KVM Extender Receiver |
Maximum Video Resolution |
1920 x 1200 |
Maximum Operating Distance |
328.08 ft |
USB |
Yes |
DVI |
Yes |
Network (RJ-45) |
Yes |
Product Family |
Emerald |
Number of Computers Supported |
1 |
TAA Compliant |
Yes |
Device Type |
KVM Extender |
Connectivity Technology |
Wired |
Input Voltage Range |
100V AC to 240V AC |
Environmentally Friendly |
Yes |
Graphic Mode |
WUXGA |
Headphone |
Yes |
Number of Network (RJ-45) Ports |
1 |
Number of USB Ports |
5 |
Number of DVI Ports |
1 |
Receiver Height |
1.32" |
Receiver Width |
7.62" |
Receiver Depth |
5.79" |
Receiver Weight (Approximate) |
1.18 lb |
Country of Origin |
Ireland |
Microphone |
Yes |
Product Model |
EMD2000PE-R-P |
Power Consumption |
7.50 W |
