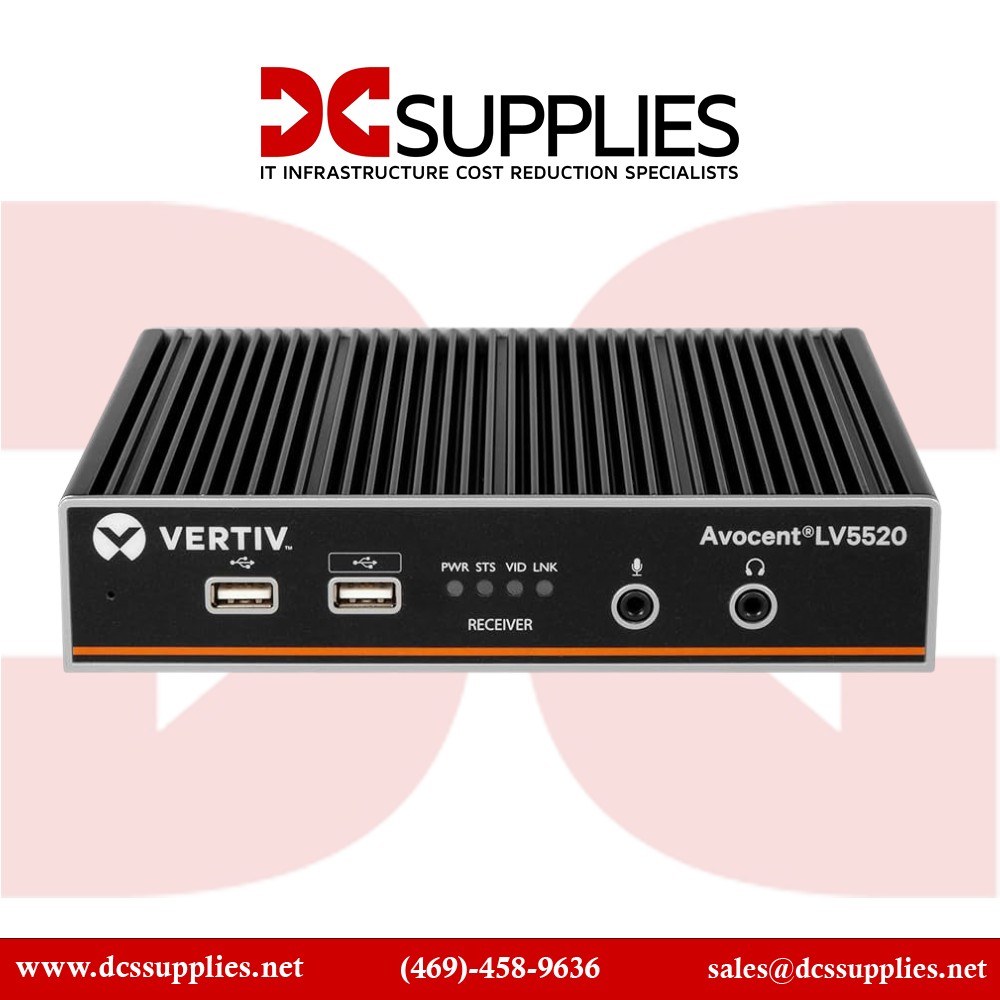

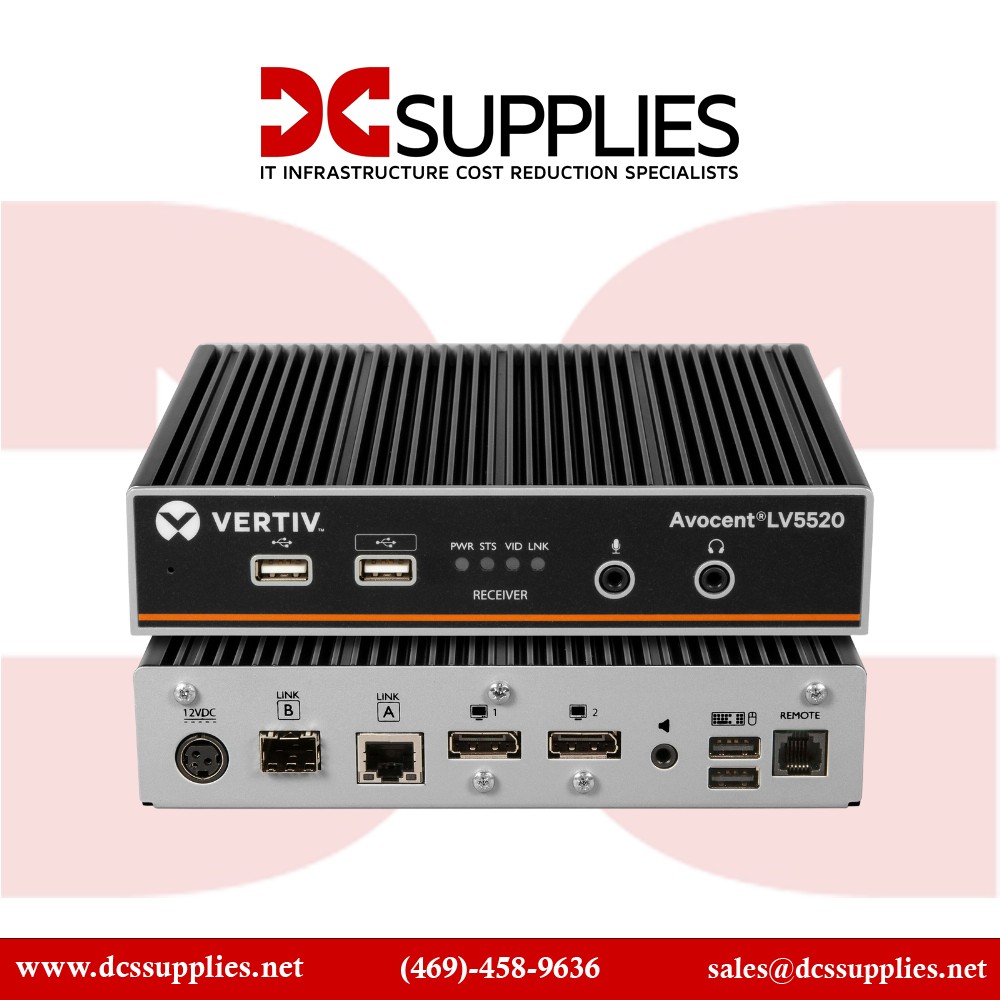

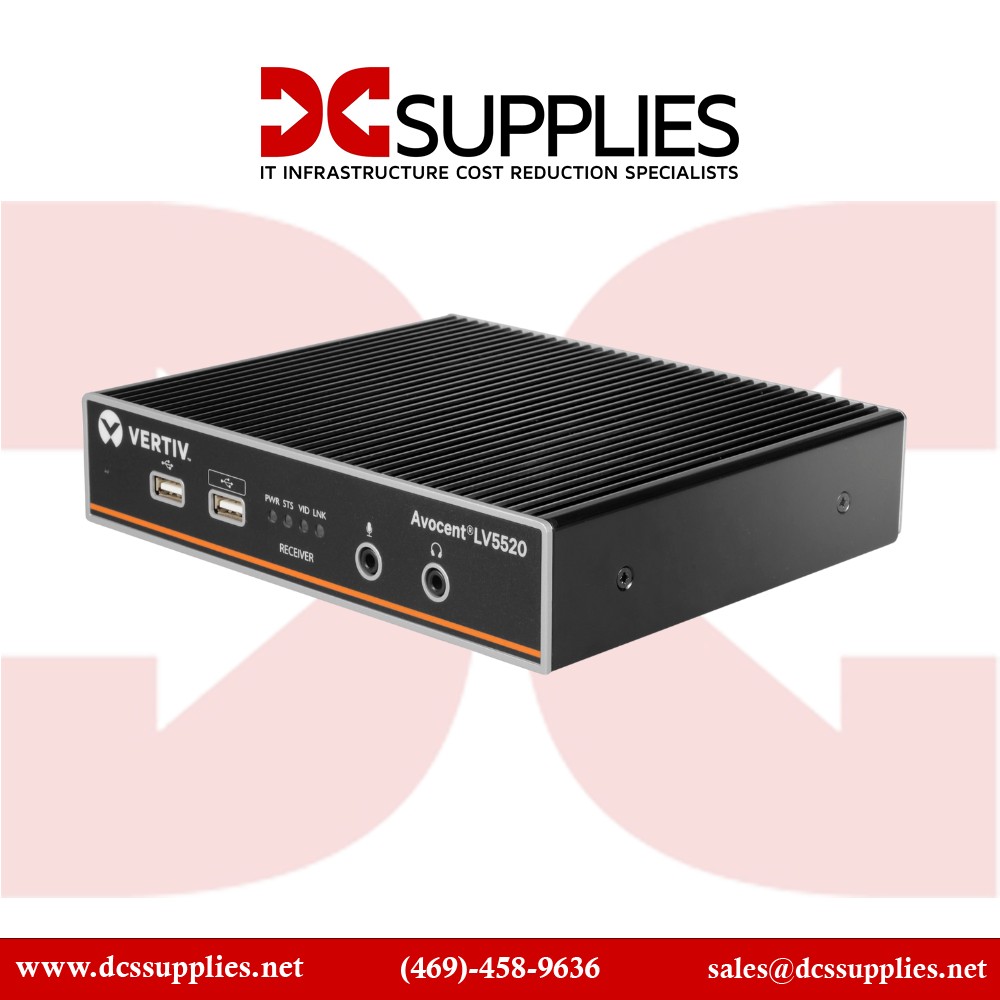

Vertiv LV5520R-400 Avocent LV5520 High-Performance KVM Extender | Receiver View larger
Previous Next

Vertiv LV5520R-400 Avocent LV5520 High-Performance KVM Extender | Receiver

New

In stock

Vertiv LV5520R-400 Avocent LV5520 High-Performance KVM Extender | Receiver

×




$1,369.39

  • New

Detailed Specifications

Vertiv LV5520R-400 Avocent LV5520 High-Performance KVM Extender  Receiver

Overview :

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.

Specification :

Product NameVertiv Avocent LV5520 High-Performance KVM Extender | Receiver
Manufacturer Part NumberLV5520R-400
Product TypeKVM Extender Receiver
Maximum Video Resolution4096 x 2160
Maximum Operating Distance13123.36 ft
USBYes
HDMINo
DVINo
VGANo
Network (RJ-45)Yes
DisplayPortYes
Product FamilyLongView 5000
Proprietary InterfaceNo
PS / 2 PortNo
KVM TechnologyDigital
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported0
TAA CompliantYes
Device TypeHigh Performance KVM
Product ColorBlack
Connectivity TechnologyWired
Input Voltage Range100-240 VAC
Form FactorRack-mountable
Environmentally FriendlyYes
Graphic Mode4K
Number of HDMI Ports0
HeadphoneYes
Number of Network (RJ-45) Ports1
Number of USB Ports2
Number of PS / 2 Ports0
Number of VGA Ports0
Number of DVI Ports0
Receiver Height1.54"
Receiver Width7.32"
Receiver Depth5.83"
Receiver Weight (Approximate)2.73 lb
Country of OriginUnited Kingdom
Product Series5000
Rack Height1U
MicrophoneYes
Product ModelLV5520R
Power Consumption18 W
Product LineLongView
Input Voltage120 V AC 230 V AC
Packaged Quantity1
Limited Warranty2 Year
DMS-59 PortNo
Number of ST Ports0
Digital Audio / VideoYes
