Detailed Specifications

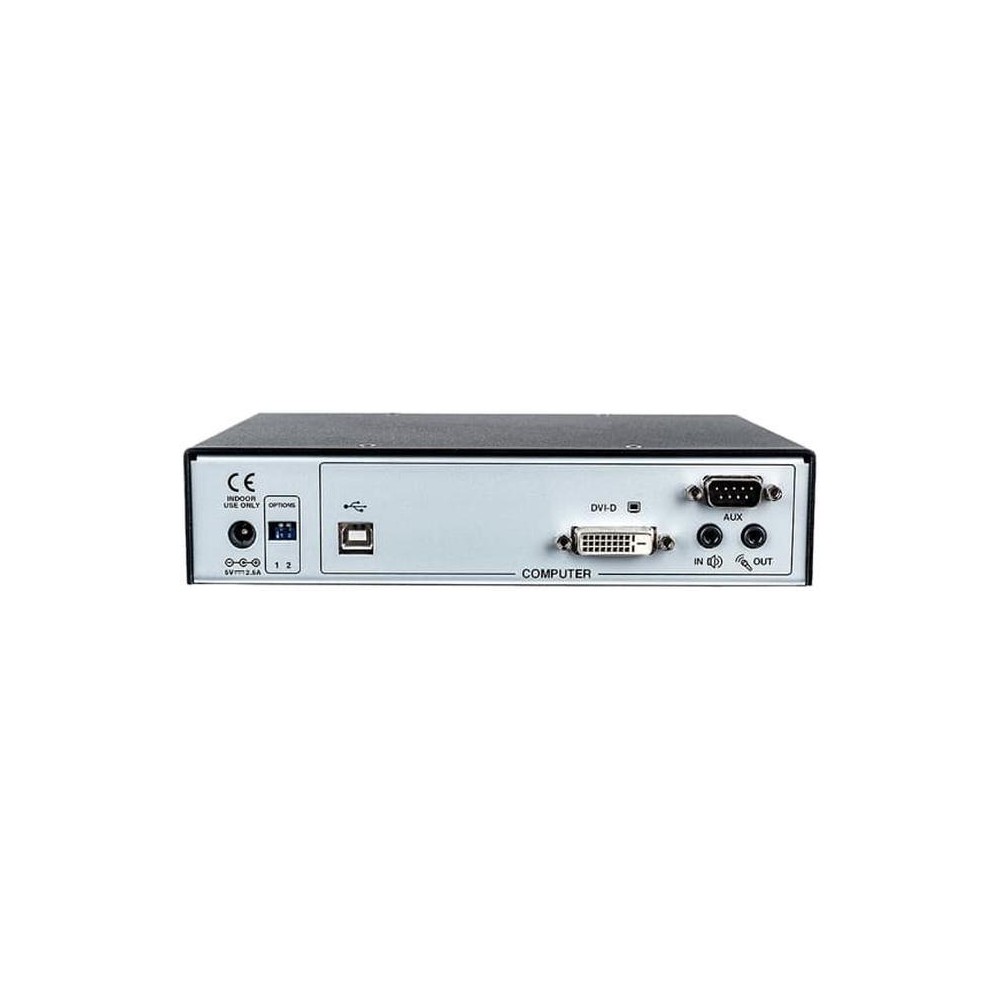

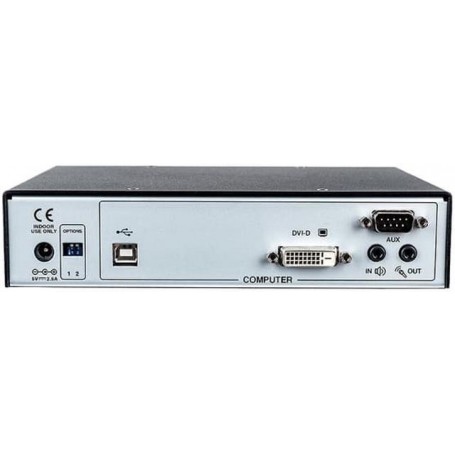

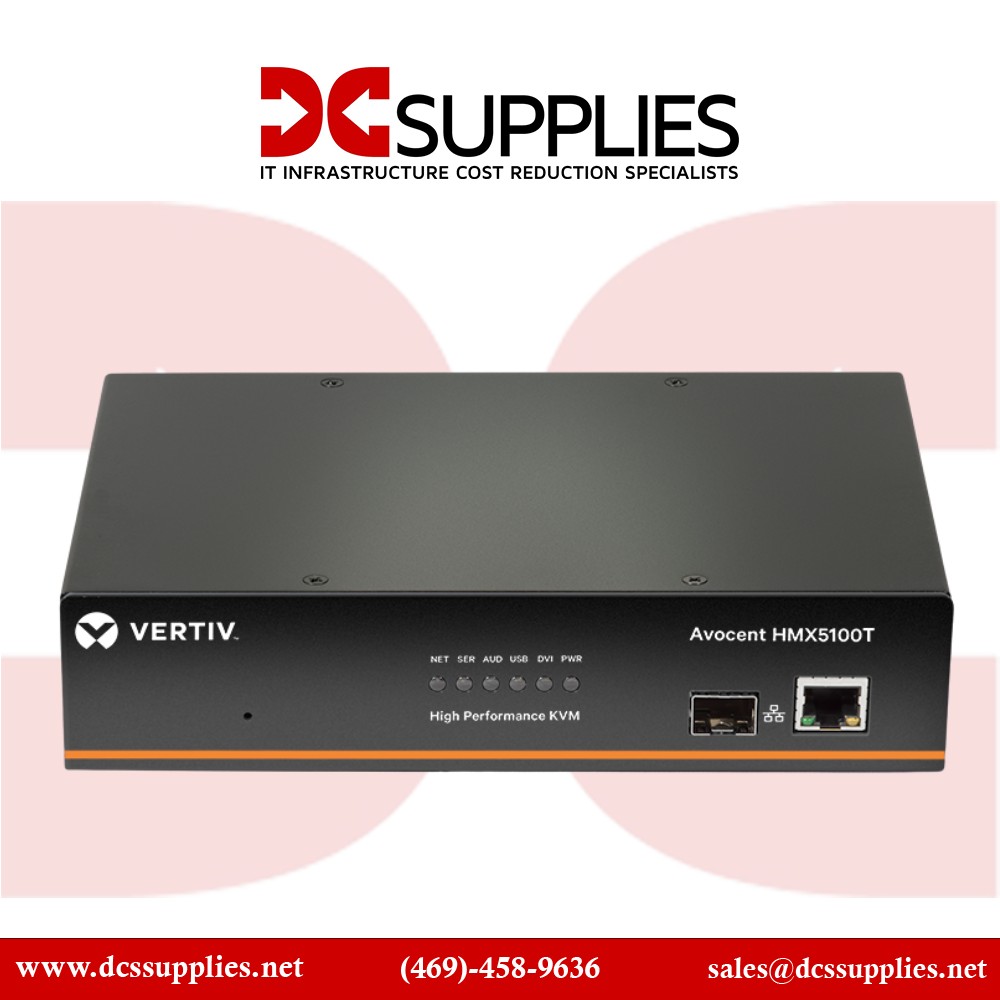

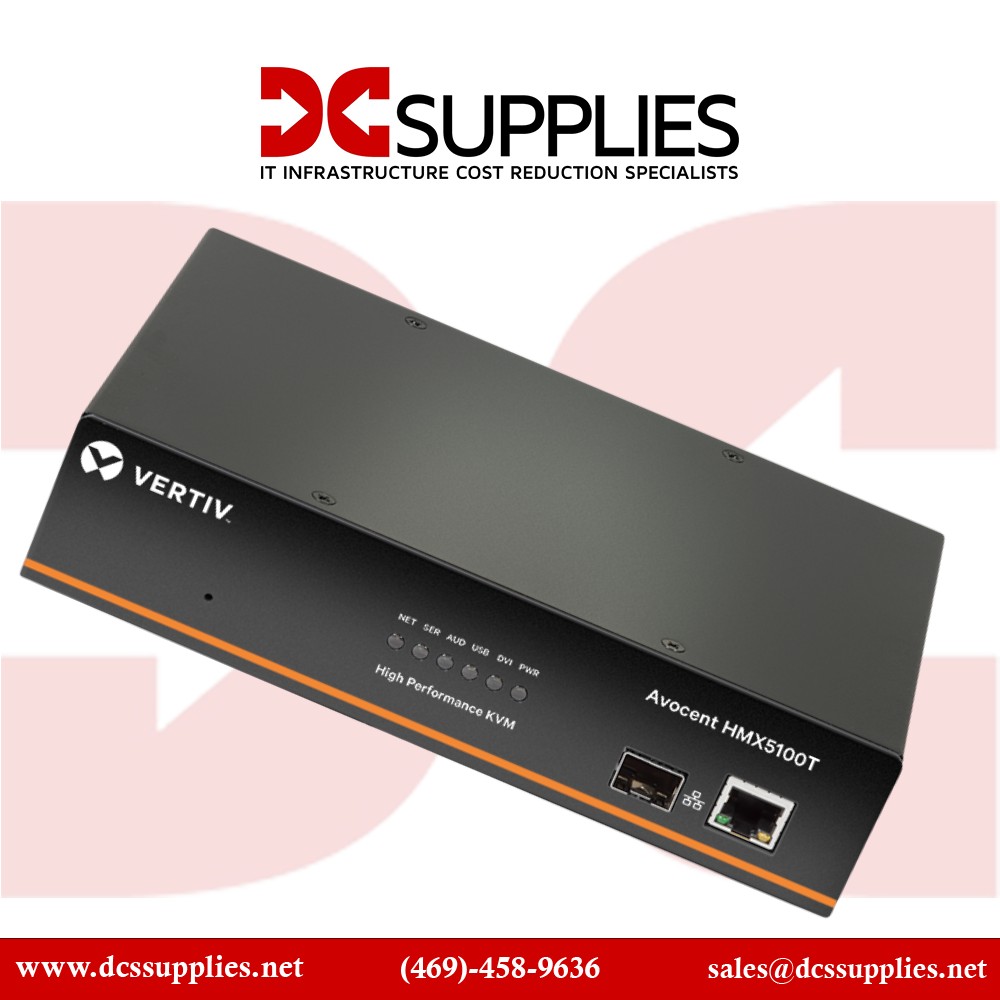

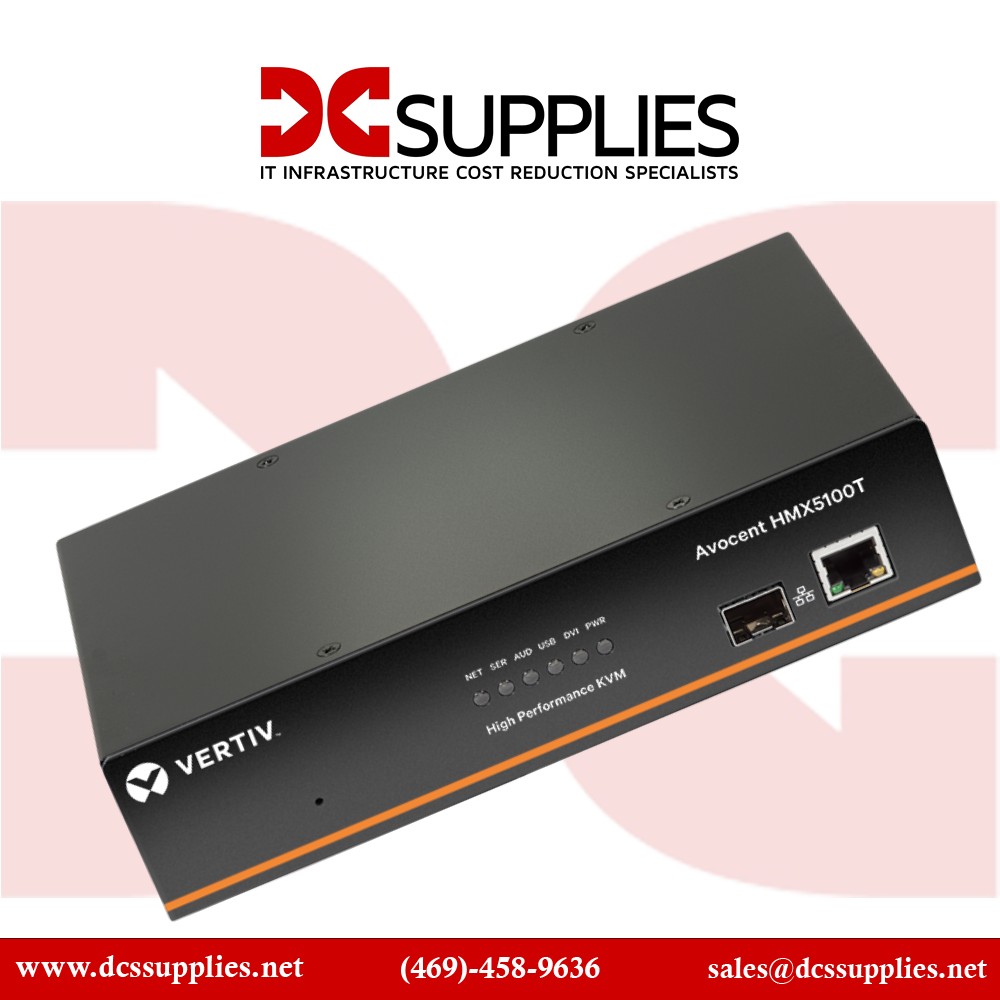

Vertiv HMX5100T-001 Avocent HMX 5000 |KVM Extender |Single Transmitter
Overview :
Vertiv Avocent HMX5100T High Performance KVM transmitter is an extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. The system enables you to locate critical computing hardware in a secure, temperature- controlled environment, away from the user work station to maintain component integrity. It is ideal for demanding applications such as pre- and post-production editing, control rooms and collaborative environments. The system provides a high degree of security through its ability to disable the use of non-HID devices, eliminating the need to block USB ports to prevent the use of mass storage devices. The Vertiv Avocent HMX5100T provides access to DVI-D video resolution to a maximum resolution of 1920x1200. It includes one USB-B input port and one system audio output port.
Specification :
| Product Name |
Vertiv Avocent HMX 5000 |KVM Extender |Single Transmitter (HMX5100T-001) |
| Manufacturer Part Number |
HMX5100T-001 |
| Product Type |
KVM Extender |
| Maximum Video Resolution |
1920 x 1200 |
| Maximum Operating Distance |
328.08 ft |
| USB |
Yes |
| DVI |
Yes |
| Network (RJ-45) |
Yes |
| Product Family |
HMX 5000 |
| KVM Technology |
Digital |
| Number of Computers Supported |
1 |
| Device Type |
High Performance KVM |
| Connectivity Technology |
Wired |
| Form Factor |
Desktop Rack-mountable |
| Graphic Mode |
WUXGA |
| Number of Network (RJ-45) Ports |
2 |
| Number of USB Ports |
1 |
| Number of DVI Ports |
1 |
| Transmitter Height |
1.76" |
| Transmitter Width |
7.92" |
| Transmitter Depth |
6" |
| Transmitter Weight (Approximate) |
2.70 lb |
| Country of Origin |
United Kingdom |
| Product Series |
5000 |
| Product Model |
HMX5100T |
| Product Line |
HMX |
| Input Voltage |
5 V DC |
| Platform Supported |
PC |
