Detailed Specifications
Vertiv LV4010P-001 LongView Single DVI, USB, Audio, CATx 50M
Overview :

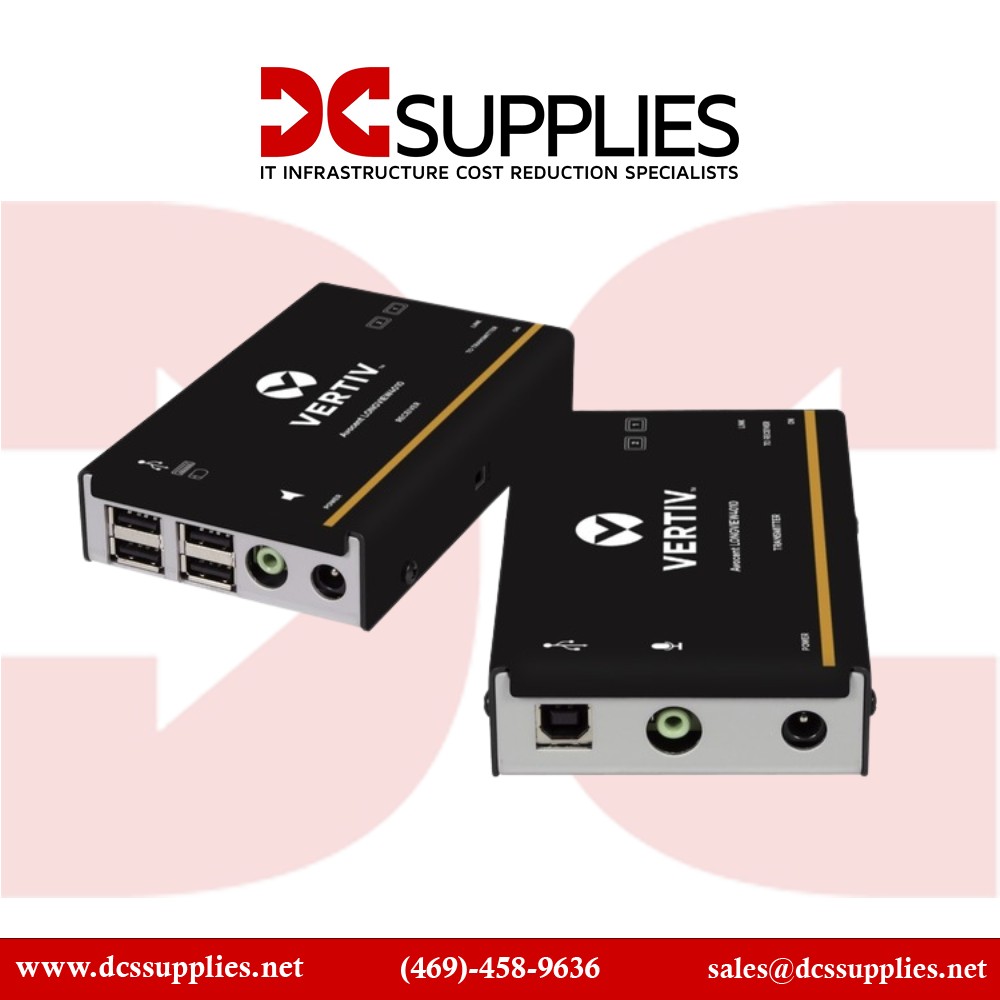

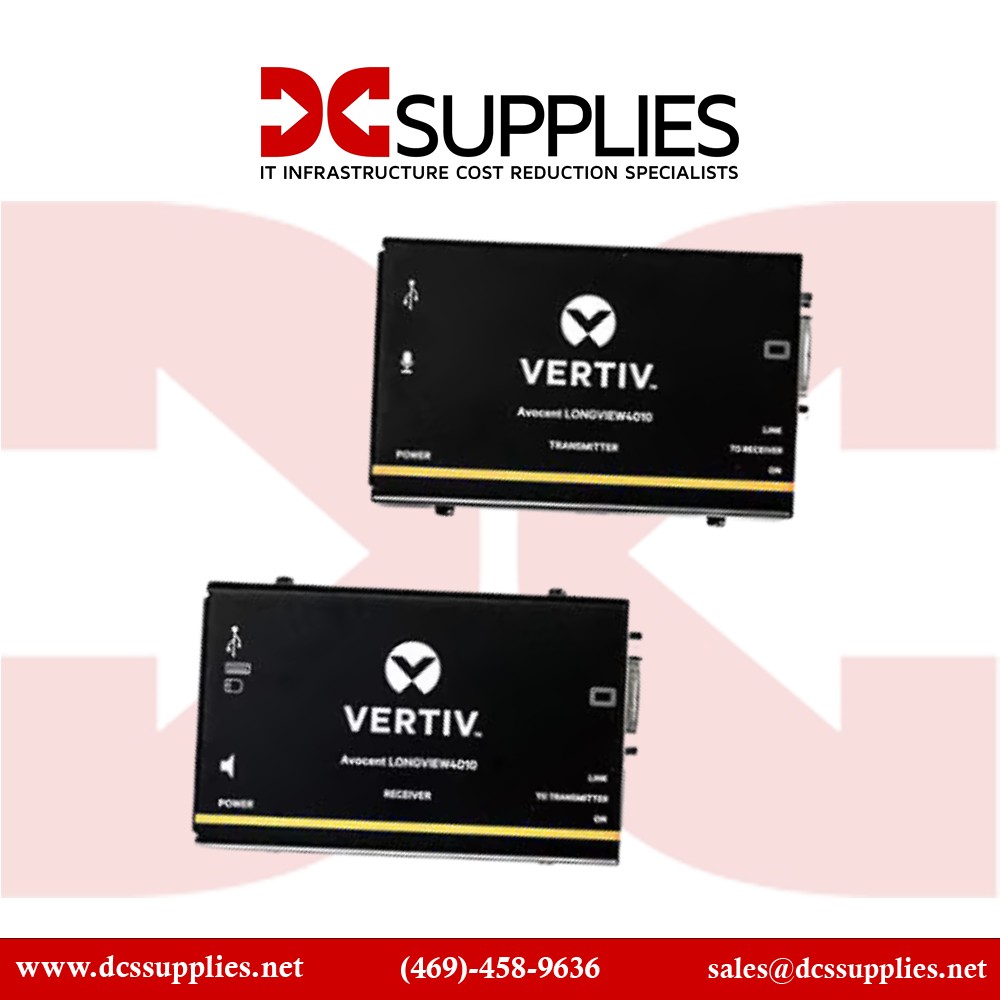

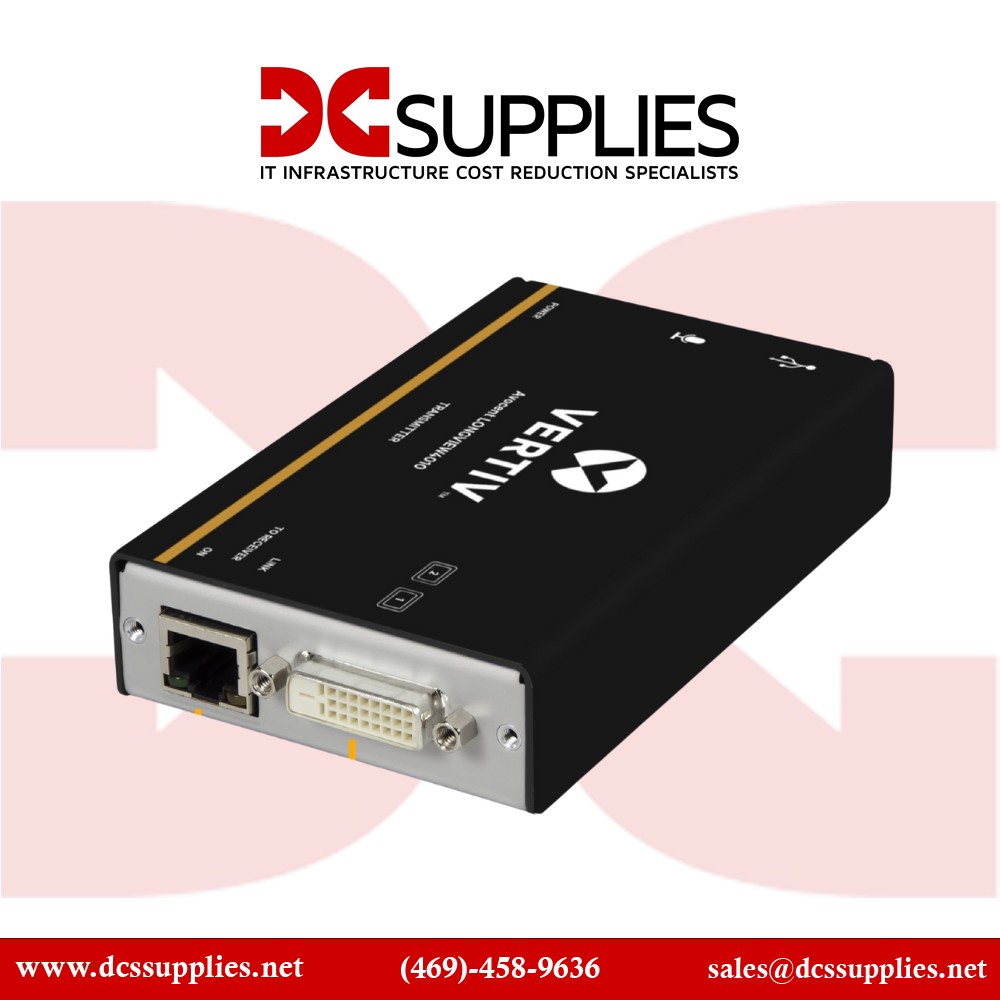

The Vertiv Avocent LV 4000 High-Performance KVM Extender Kit allows computing assets to be in secure, climate-controlled environments away from the workstation, while still delivering seamless and instantaneous KVM control. The extender supports DVI transmission and can transmit up to two single link high-resolution (1920x1200) video streams, USB 2.0 and analog audio over a single or multiple CATx cables to single and multi-screen desktops up to 50 m. / 164 ft. away. Pass through ports allow use of a local console at the transmitter and/or receiver as needed. The Vertiv Avocent LV 4000 KVM extender supports isochronous USB devices such as webcams and touchscreens. The Avocent LV 4000 high-performance KVM extender does not require on-site configuration, plug them in, and start working right away without drivers or software to install. Bring order to environments that can't afford unnecessary complexity with the Vertiv Avocent LV 4000 High-Performance KVM Extender Kit.
Specification :
| Product Name |
LongView Single DVI, USB, Audio, CATx 50M |
| Manufacturer Part Number |
LV4010P-001 |
| Product Type |
KVM Console/Extender |
| Maximum Video Resolution |
1920 x 1200 |
| Maximum Operating Distance |
1000 ft |
| USB |
Yes |
| DVI |
Yes |
| Product Family |
LV 4000 |
| Number of Computers Supported |
1 |
| Number of Local Users Supported |
1 |
| Device Type |
KVM Extender |
| Connectivity Technology |
Wired |
| Input Voltage Range |
100V AC to 240V AC |
| Form Factor |
Rack-mountable |
| Graphic Mode |
WUXGA |
| Number of USB Ports |
4 |
| Number of DVI Ports |
1 |
| Transmitter Height |
1" |
| Transmitter Width |
4.70" |
| Transmitter Depth |
3" |
| Receiver Height |
1" |
| Receiver Width |
4.70" |
| Receiver Depth |
3" |
| Transmitter Weight (Approximate) |
11.20 oz |
| Receiver Weight (Approximate) |
11.20 oz |
| Country of Origin |
United Kingdom |
| Product Series |
4000 |
| Rack Height |
3U |
| Product Model |
LV4010 |
| Power Consumption |
12.50 W |
| Product Line |
LV |
| Input Voltage |
120 V AC
240 V AC
|
| Packaged Quantity |
1 |
