Detailed Specifications

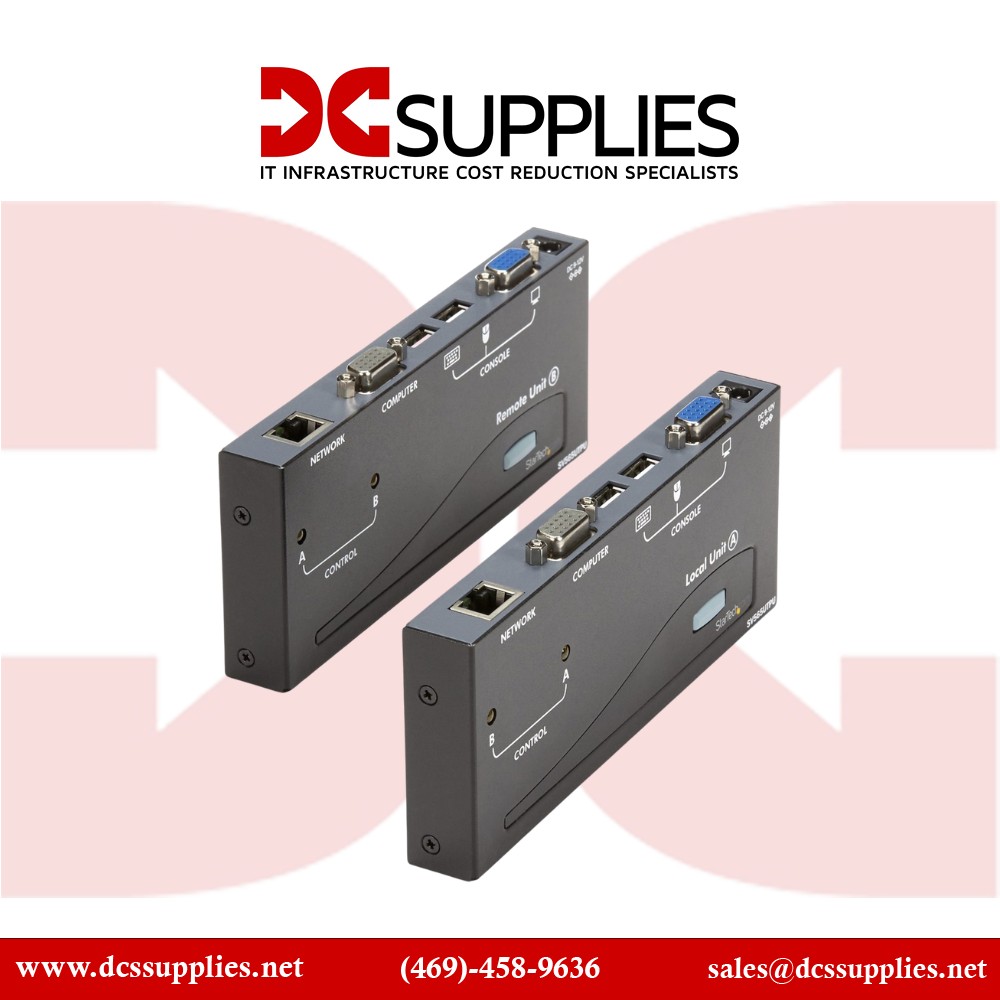

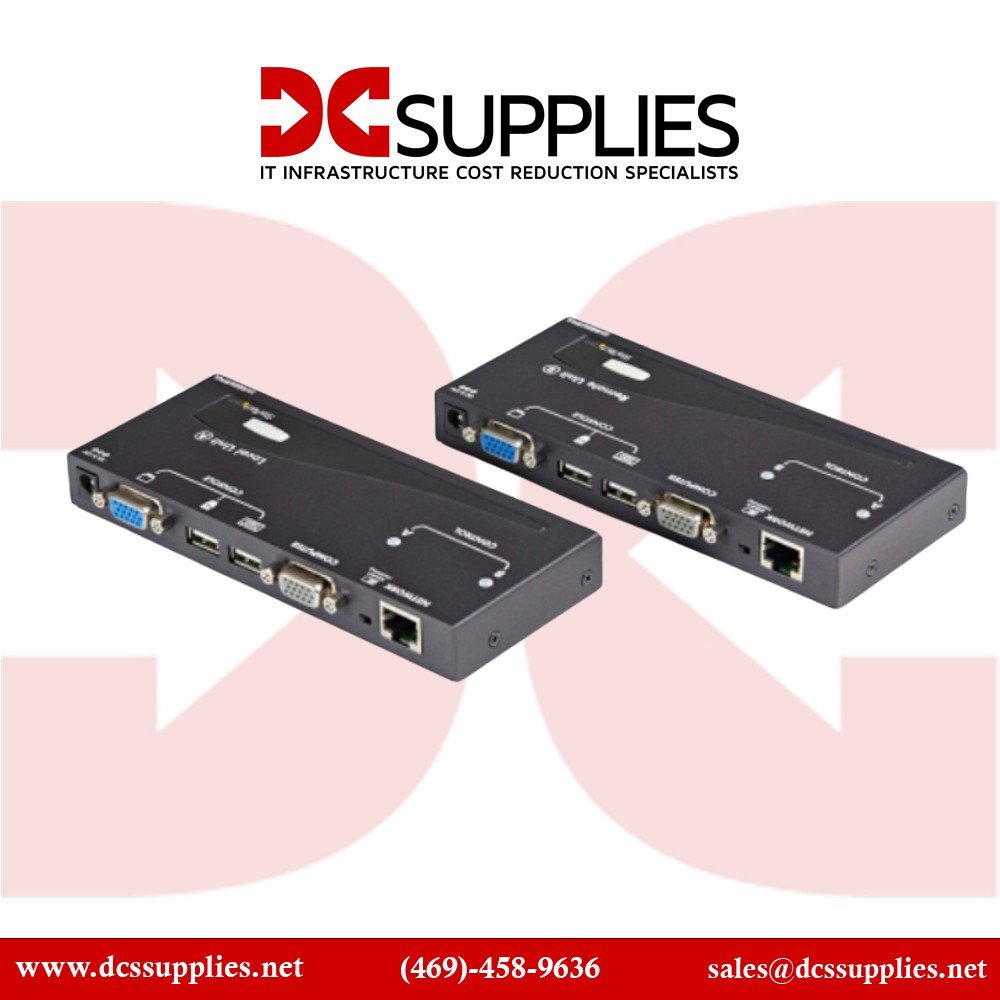

SV565UTPUL USB VGA KVM Console Extenderr over Cat5 1000ft Long Range
The Startech.com SV565UTPUL USB VGA KVM Console Extender is a professional-grade solution for extending KVM (Keyboard, Video, Mouse) signals over a Cat5e/Cat6 network cable. Designed for data centers and server rooms, it allows you to control a server from up to 1000 feet (300 meters) away using cost-effective cabling.
Features
This extender provides a robust and reliable connection, supporting resolutions up to 1920x1200. It's ideal for controlling servers, PCs, or other systems from a remote location, reducing clutter and providing a more flexible work environment. The Cat5e/Cat6 cable acts as a readily available medium for signal transmission.
Advanced Options
The SV565UTPUL is a plug-and-play device with no software or drivers required. Its compact design and included mounting hardware make it easy to install in various settings. It also includes an auto-tuning feature to adjust to different cable lengths, ensuring optimal video quality over long distances.
Product Key Features
Long Range Extension - Operates up to 1000ft (300m) over Cat5 cabling
USB & VGA Support - Connects USB keyboard/mouse and VGA monitor
High Resolution - Supports up to 1920x1200 video output
Durable Build - Rugged metal housing for industrial/server use
Plug-and-Play - No drivers or software needed for setup
Flexible Mounting - Includes brackets for rack/wall installation
Reliability & Performance
This extender ensures uninterrupted KVM access to critical systems over long distances. With robust video signal integrity and a solid-state design, it delivers dependable performance in enterprise environments such as server farms, IT management, and remote monitoring stations. Its durable steel housing is built for continuous 24/7 operation.
Key Features (Bullet List)
Extends USB and VGA signals over Cat5e/Cat6
Controls a server up to 1000ft away
Supports 1920x1200 video resolution
Durable metal housing
No software installation needed
Includes local and remote units
Ideal for data centers and server rooms
| Specification | Details |
|---|
| Model Number | SV565UTPUL |
| Product Type | USB VGA KVM Console Extender |
| Extension Technology | Cat5e/Cat6 |
| Maximum Distance | 1000 ft (300 m) |
| Supported Resolution | Up to 1920x1200 |

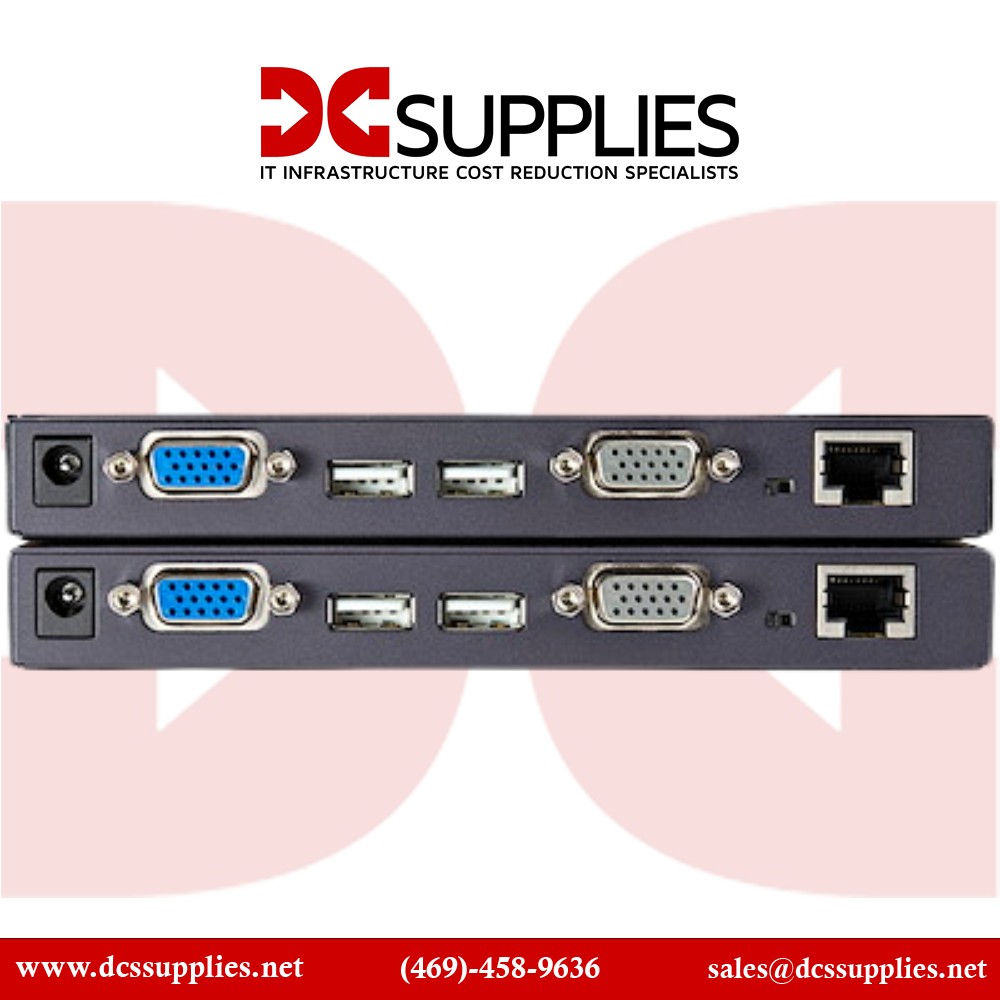

| Connectors | VGA (HD15), USB (Type A), RJ45 |
| Hot Plug Support | No |
| Workload Rating | 24/7 Enterprise Operation |
| Dimensions | ~9.1 x 3.9 x 1.4 inches |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
